Center Support and Gear Unit Assembly Installation

Center Support and Gear Unit Assembly Installation

Special Tools
* J 6129 - Handle
* J 28585 - Snap Ring Remover
* J 38868 - Output Shaft Assembly Remover and Installer

For equivalent regional tools, refer to Special Tools (Tools and Equipment).

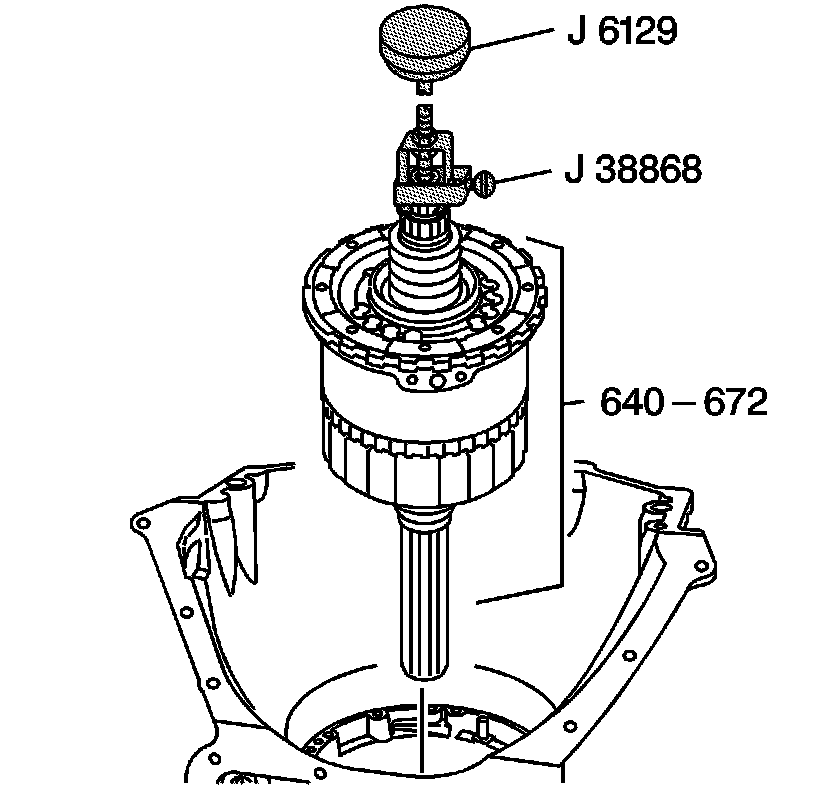

1. Attach the J 38868 - remover and installer and the J 6129 - handle onto the main shaft.
2. Align the bolt hole in the center support with the bolt hole in the case and carefully lower the center support and gear unit assembly (640-672) into the case.
3. Remove the tools.

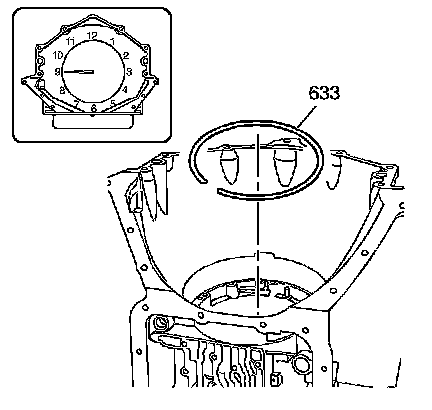

4. Using the J 28585 - snap ring remover , install the center support retaining ring (633). The end gap of the center support retaining ring (633) should be located at the 9 o'clock position with the beveled edge of the retaining ring facing up.
