4th Clutch Piston Travel Check

4th Clutch Piston Travel Check

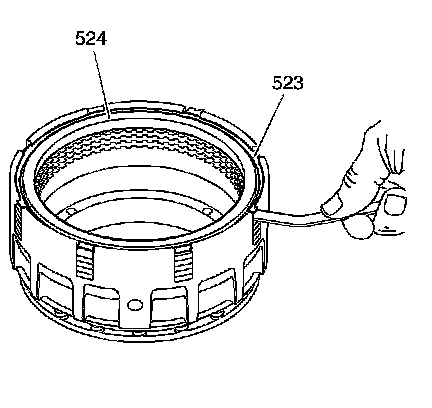

Using a feeler gage, measure the piston travel between the fourth clutch backing plate (524) and the fourth clutch backing plate retainer ring (523). Piston travel should be 1.016-2.540 mm (0.040-0.100 in).
