Home >> Chevy Truck >> 2009 >> Express 3500 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Power Distribution Relay >> Locations >> UPFTR AUX 2 Relay

UPFTR AUX 2 Relay




Electrical Center Identification Views

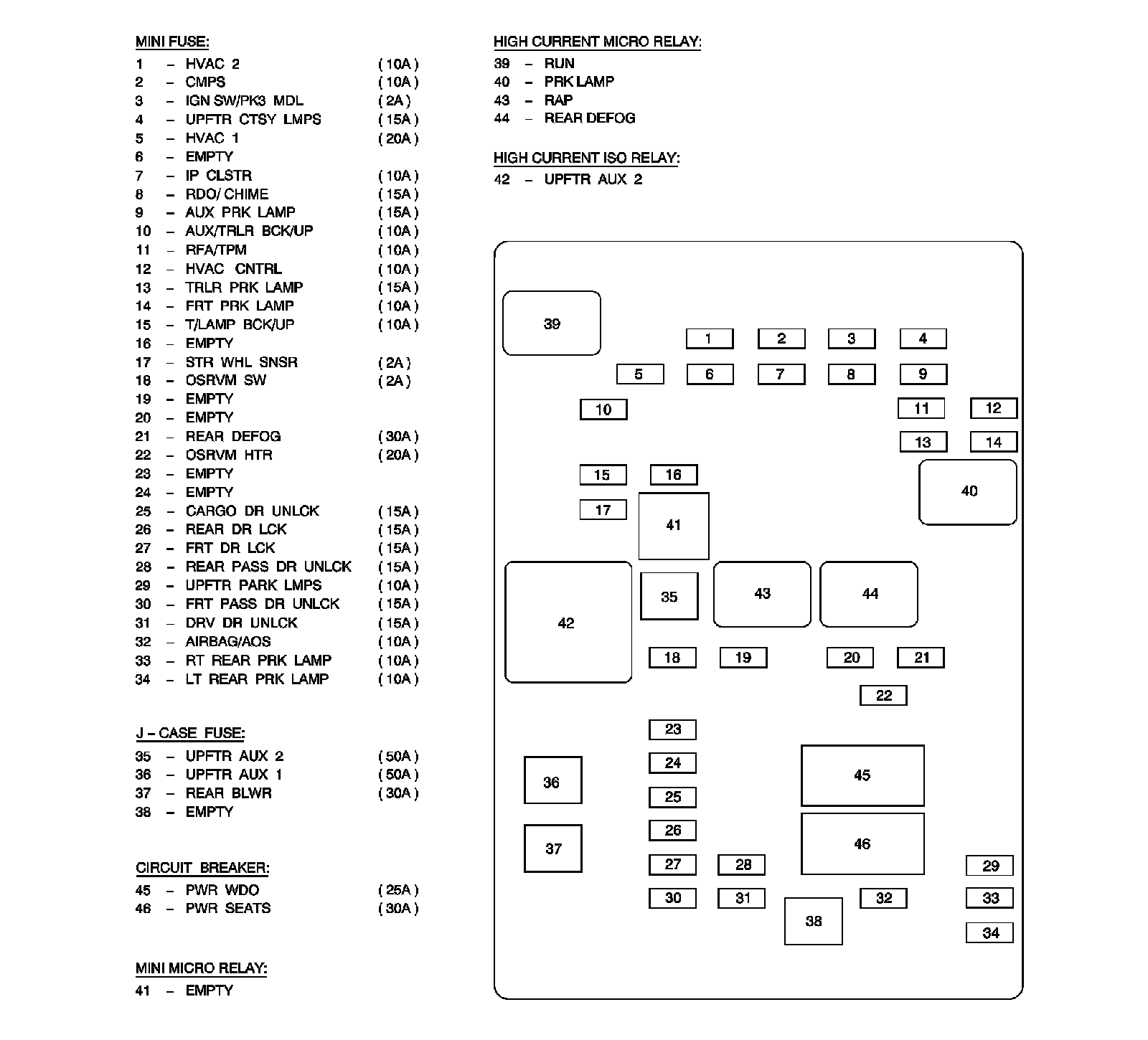

Fuse Block - Body Label
