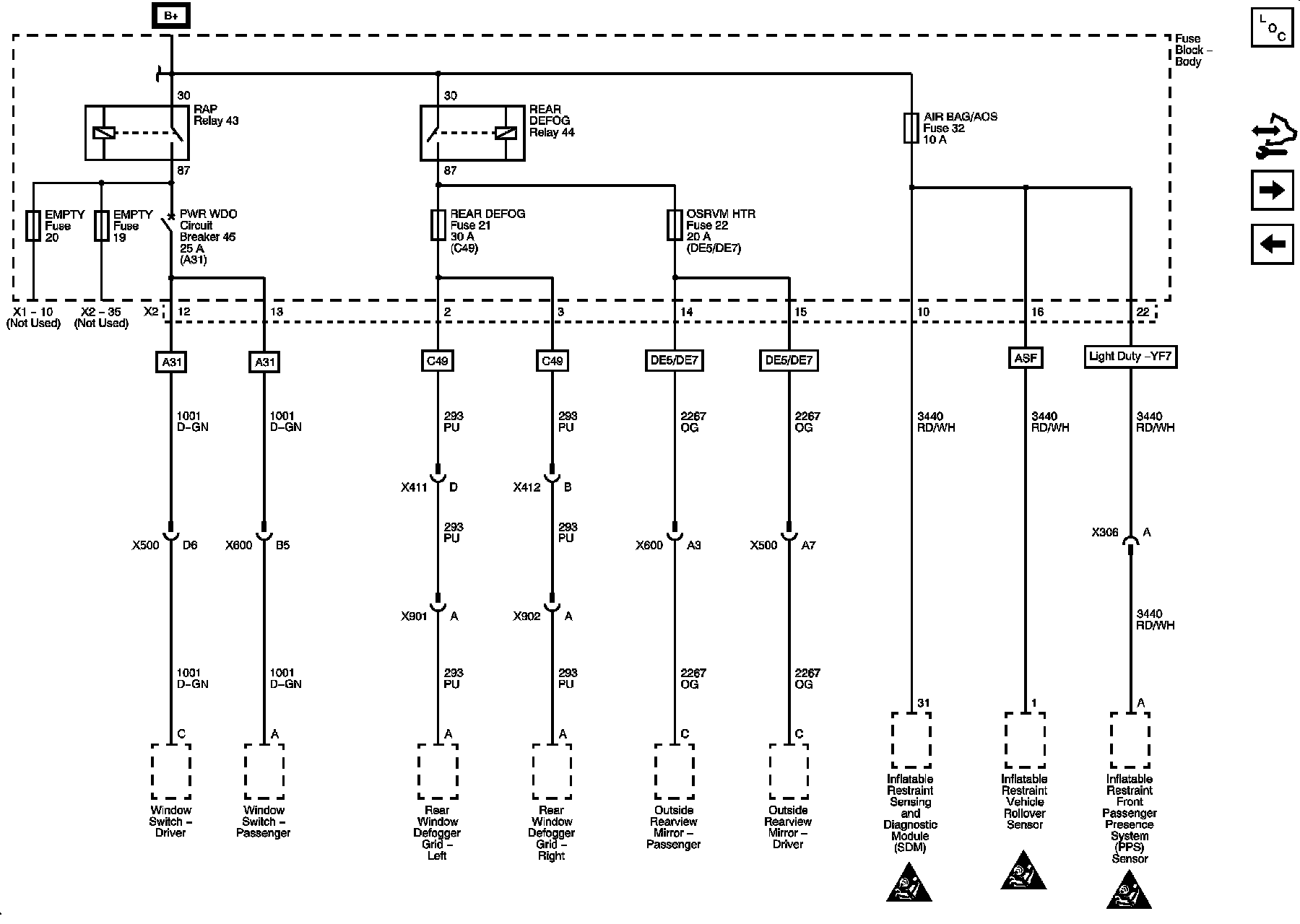

Power Distribution Diagram 14




Power Distribution Schematics

REAR DEFOG, OSRVM HTR and AIR BAG/AOS Fuses, PWR WDO Circuit Breaker
