Auxiliary Generator Bracket Replacement

Auxiliary Generator Bracket Replacement

Removal Procedure
Warning: Refer to Battery Disconnect Warning (Service Precautions).

1. Remove the fan shroud. Refer to Engine Coolant Fan Upper Shroud Replacement (4.3L, 4.8L, 5.3L, 6.0L, 6.2L, 7.0L) (Service and Repair)Engine Coolant Fan Upper Shroud Replacement (6.6L) (Service and Repair).
2. Disconnect the auxiliary generator electrical connector.
3. Remove the drive belt. Refer to Drive Belt Replacement (Service and Repair).




4. Remove the positive battery cable from the auxiliary generator, perform the following:

1. Slide the boot (4) down to access the terminal stud.
2. Remove the positive cable nut (1).
3. Remove the positive cable.




5. Remove the auxiliary generator bolts (3).
6. Remove the auxiliary generator (4).

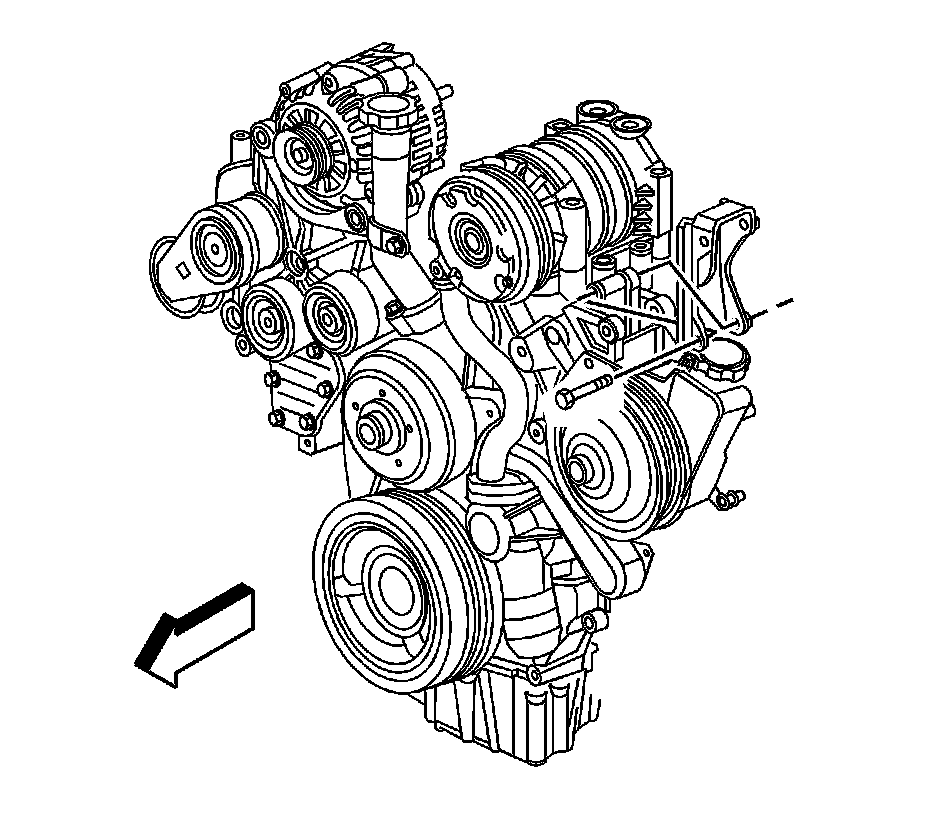

7. Remove the auxiliary generator bracket bolts.
8. Remove the auxiliary generator bracket.

Installation Procedure




1. Install the auxiliary generator bracket.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the auxiliary generator bracket bolts and tighten to 50 Nm (37 lb ft).




3. Install the auxiliary generator (4).
4. Install the auxiliary generator bolts (3) and tighten to 50 Nm (37 lb ft).




5. Install the positive cable to the auxiliary generator, perform the following:

1. Install the positive cable.
2. Install the positive cable nut (1) and tighten to 9 Nm (80 lb in).
3. Slide the boot (4) up to cover the terminal stud.

6. Install the drive belt. Refer to Drive Belt Replacement (Service and Repair).
7. Connect the auxiliary generator electrical connector (3).
8. Install the radiator fan shroud. Refer to Engine Coolant Fan Upper Shroud Replacement (4.3L, 4.8L, 5.3L, 6.0L, 6.2L, 7.0L) (Service and Repair)Engine Coolant Fan Upper Shroud Replacement (6.6L) (Service and Repair).
