Power Window Switch: Diagrams




Component Connector End Views

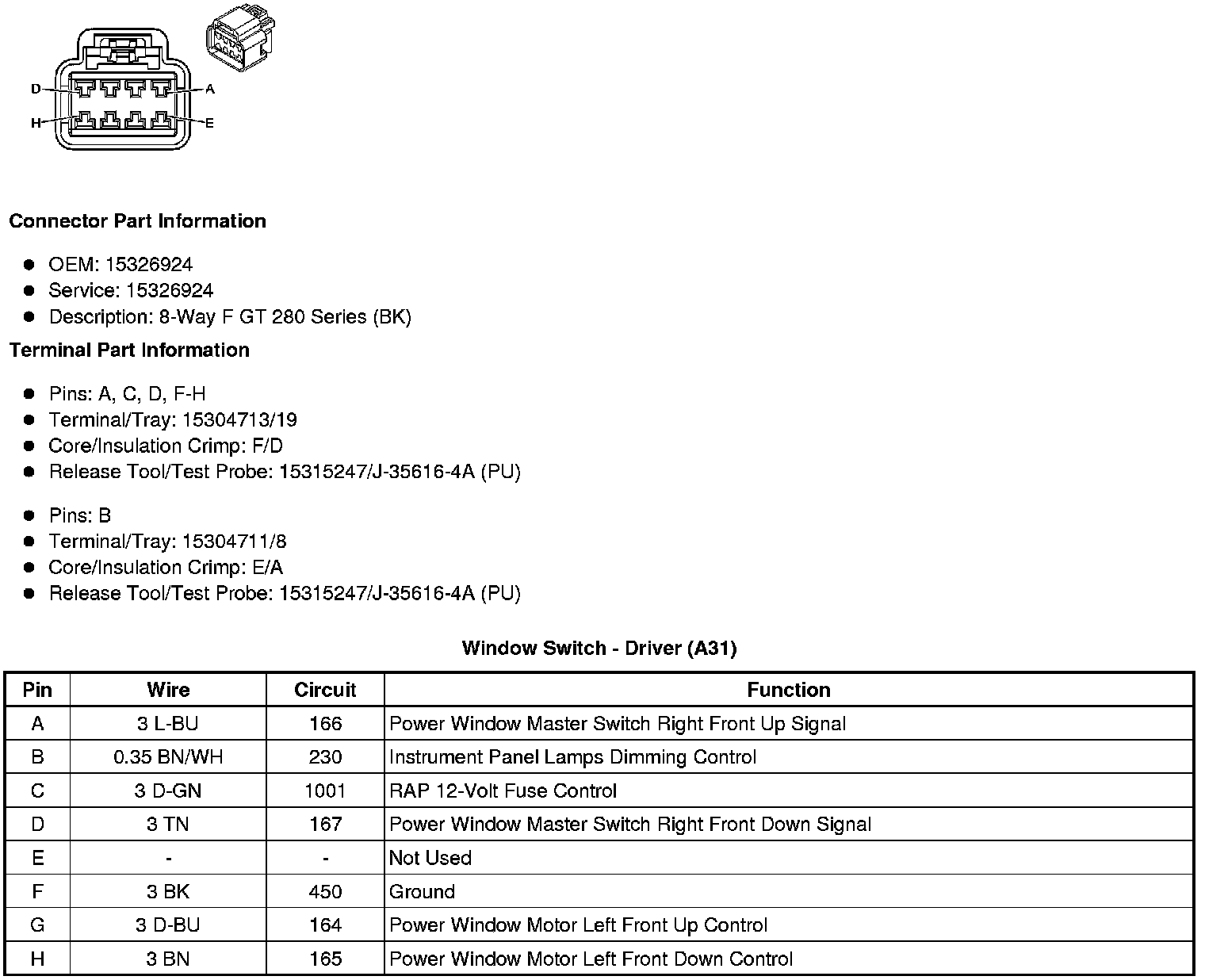

Window Switch - Driver (A31)

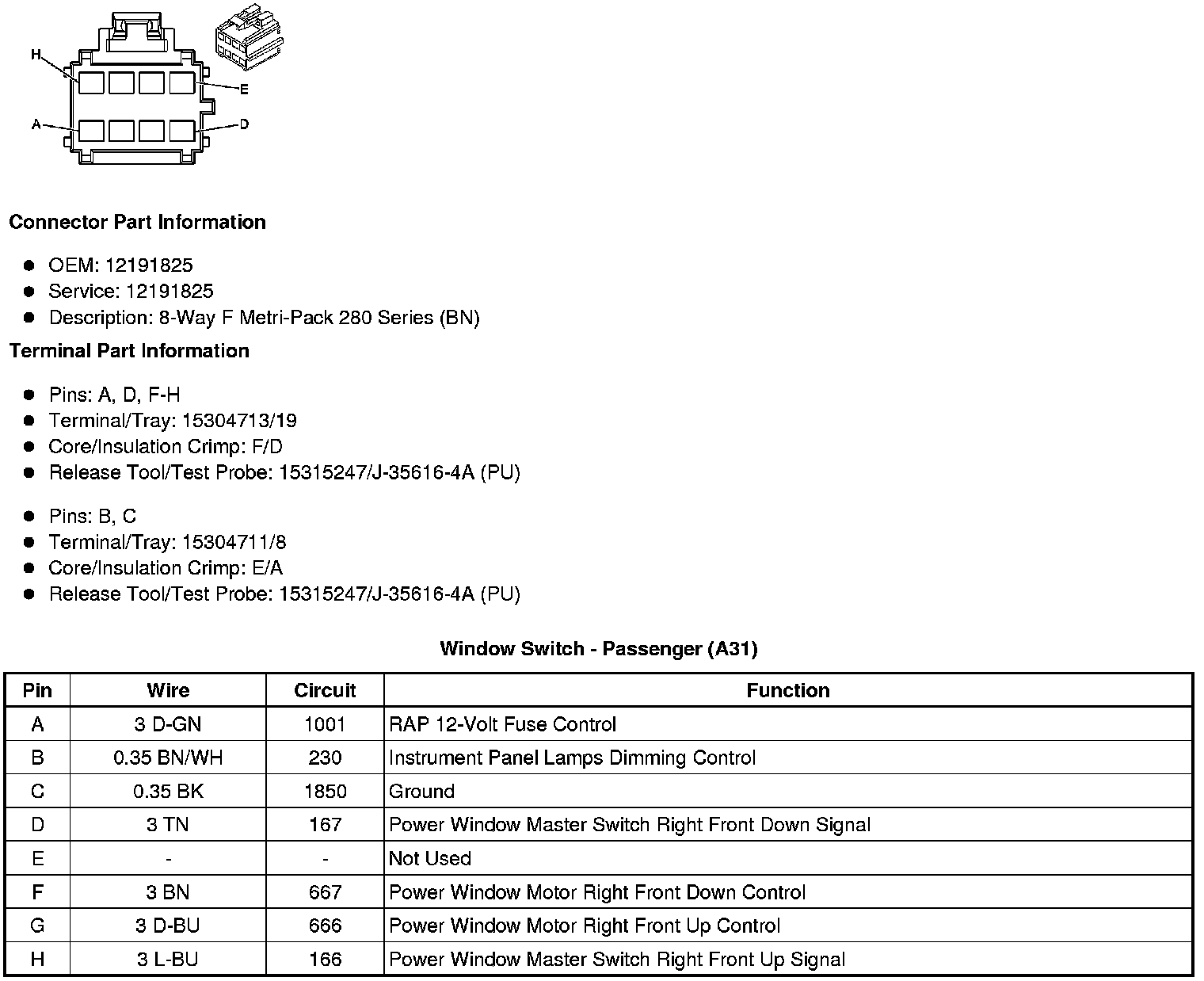

Window Switch - Passenger (A31)
