Transmission Speed Sensor: Locations

Powertrain Component Views

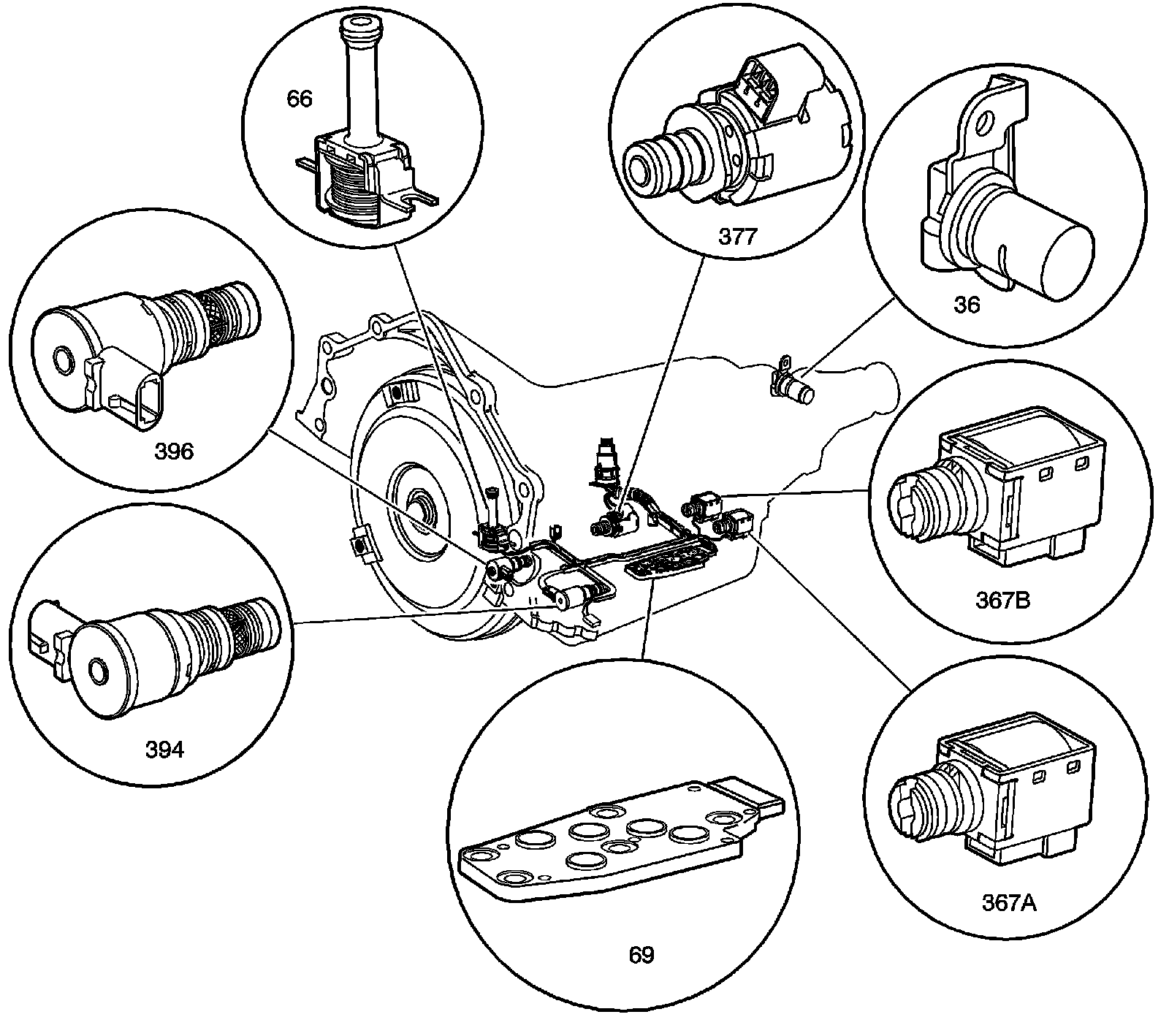

Automatic Transmission Internal Electronic Components (4L60-E)




36 - Automatic Transmission Output Shaft Speed (OSS) Sensor
66 - Torque Converter Clutch (TCC) Solenoid Valve
367a - 1-2 Shift Solenoid (SS) Valve
367b - 2-3 Shift Solenoid (SS) Valve
377 - Pressure Control (PC) Solenoid Valve
396 - Torque Converter Clutch (TCC) Pulse Width Modulation (PWM) Solenoid Valve

Automatic Transmission Internal Electronic Components (4L80-E)




22a - Automatic Transmission Input Shaft Speed (ISS) Sensor
22b - Automatic Transmission Output Shaft Speed (OSS) Sensor
34 - Automatic Transmission Fluid Temperature (TFT) Sensor
40 - Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch
311 - 2-3 Shift Solenoid (SS) Valve
313 - 1-2 Shift Solenoid (SS) Valve
320 - Pressure Control (PC) Solenoid Valve
323 - Torque Converter Clutch (TCC) Pulse Width Modulation (PWM) Solenoid Valve
