Transmission Speed Sensor: Diagrams




Component Connector End Views

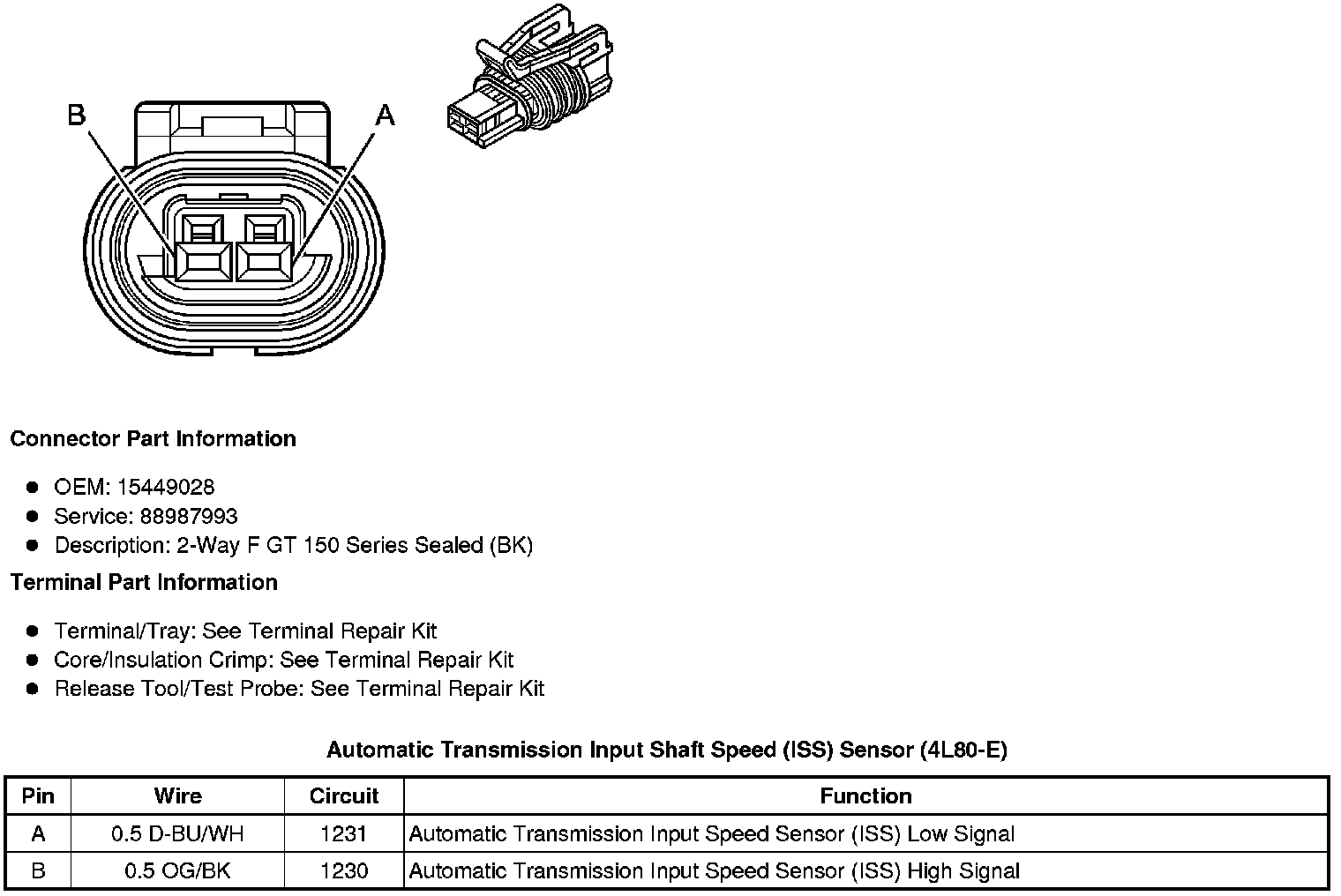

Automatic Transmission Input Shaft Speed (ISS) Sensor (4L80-E)

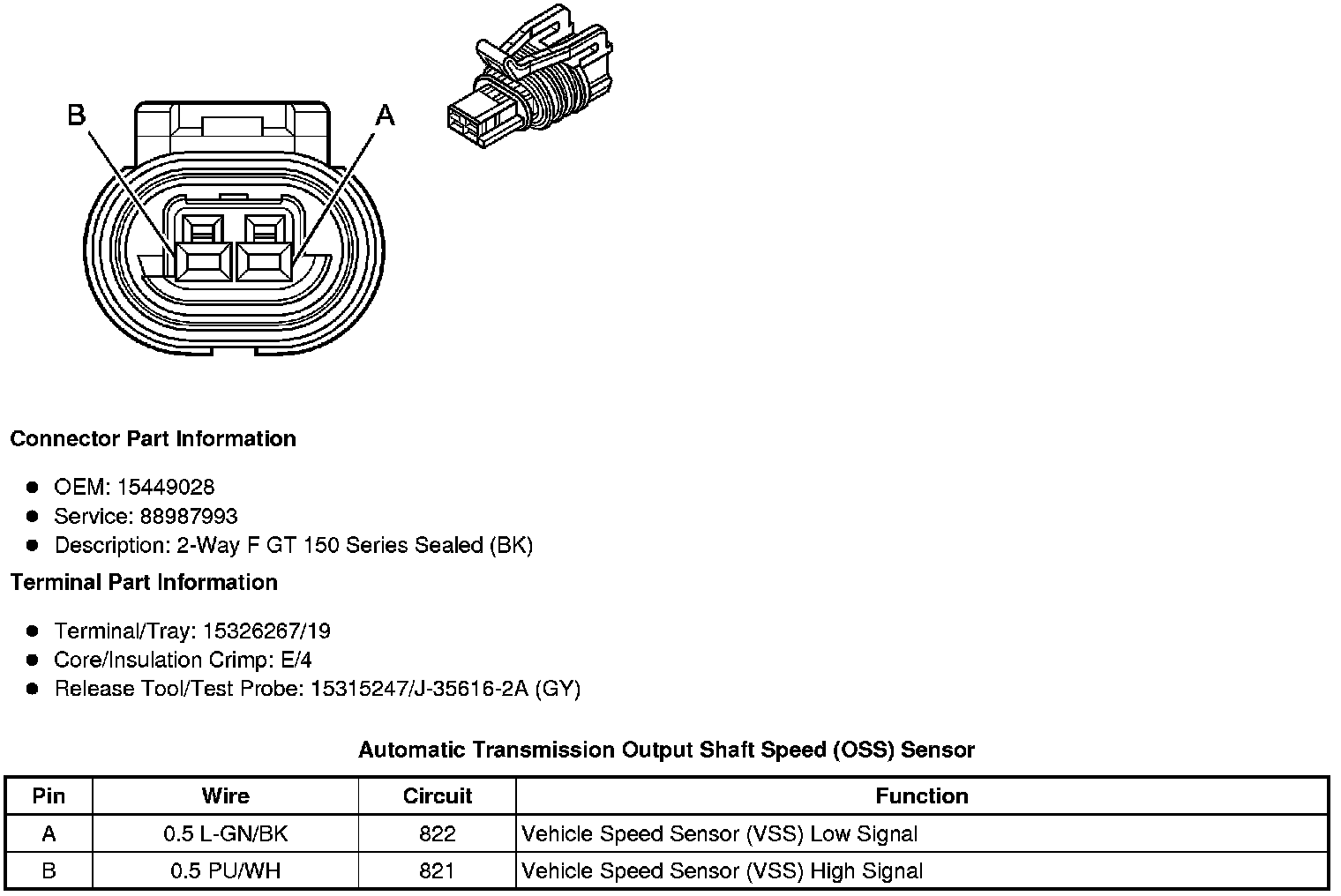

Automatic Transmission Output Shaft Speed (OSS) Sensor
