Fuel Temperature Sensor: Diagrams

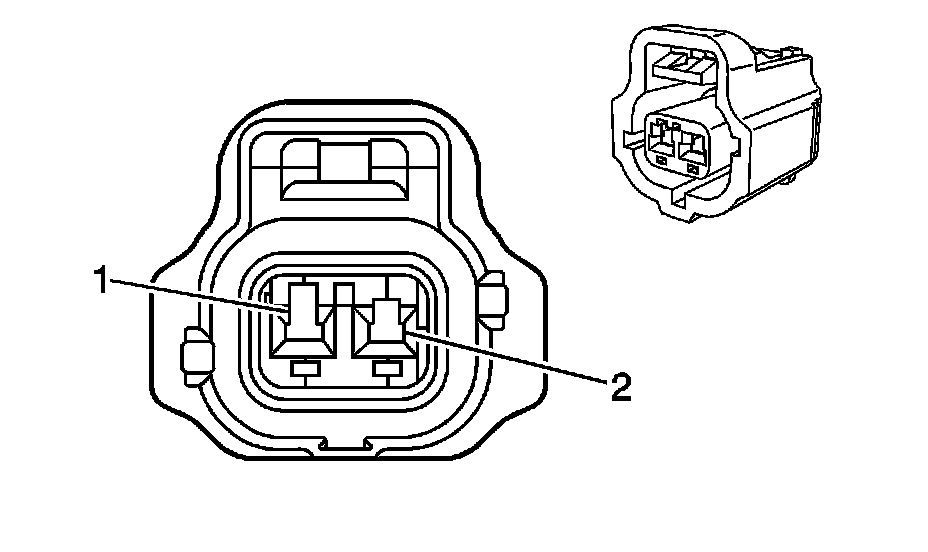

Component Connector End Views

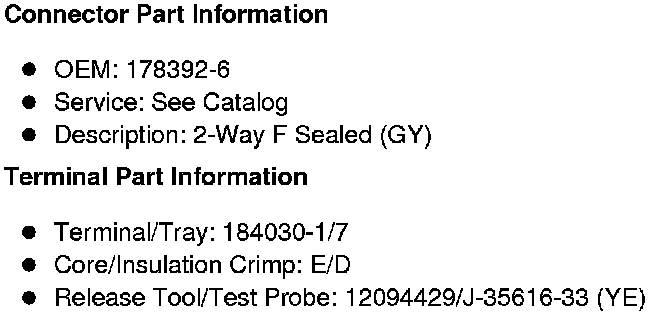

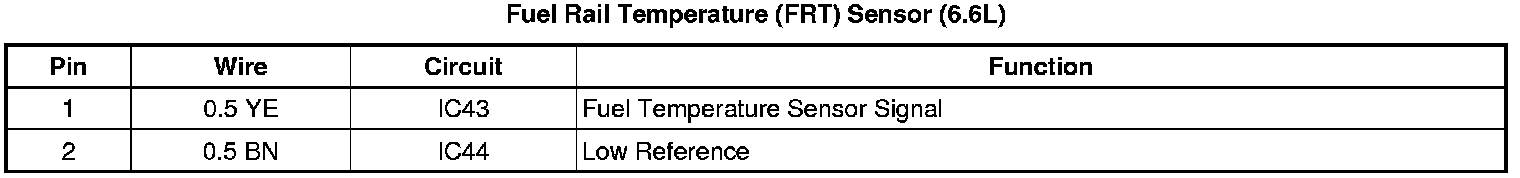

Fuel Rail Temperature (FRT) Sensor (6.6L)
