Fuel Pressure Sensor/Switch: Locations

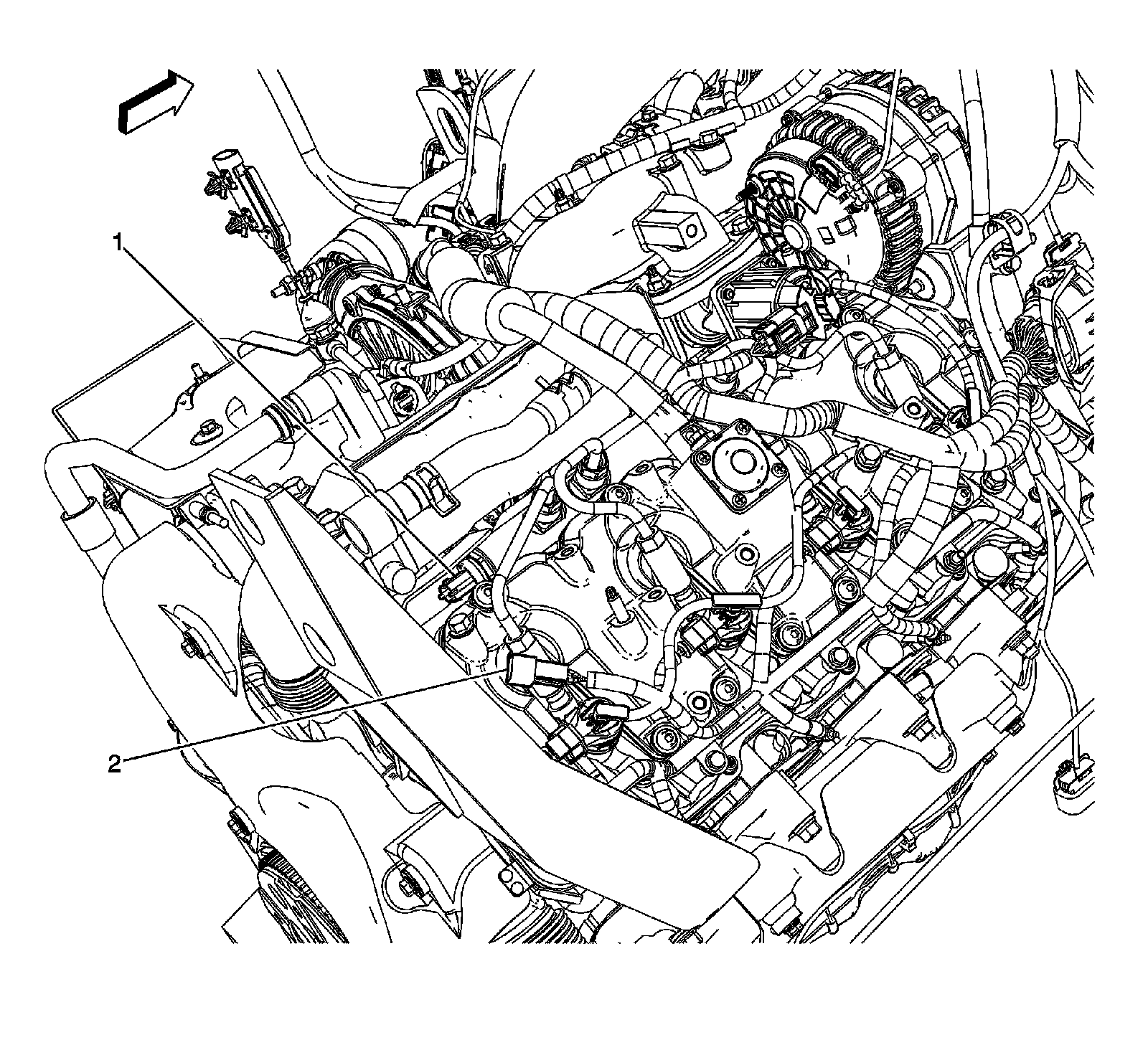

Powertrain Component Views

Top Rear of Engine (6.6L)




1 - Fuel Rail Pressure (FRP) Sensor
2 - X112
