Power Door Lock Switch: Diagrams




Component Connector End Views

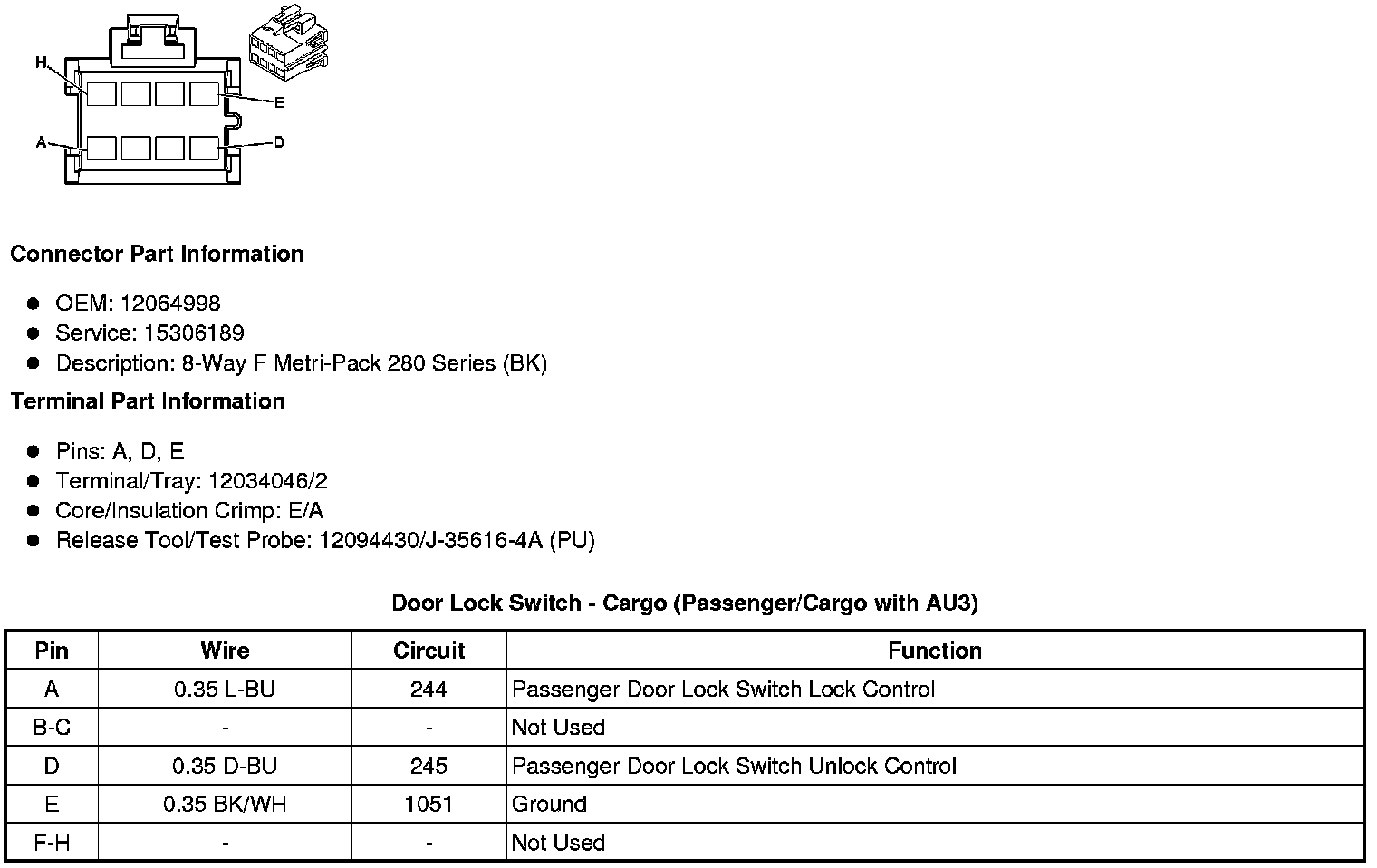

Door Lock Switch - Cargo (Passenger/Cargo with AU3)

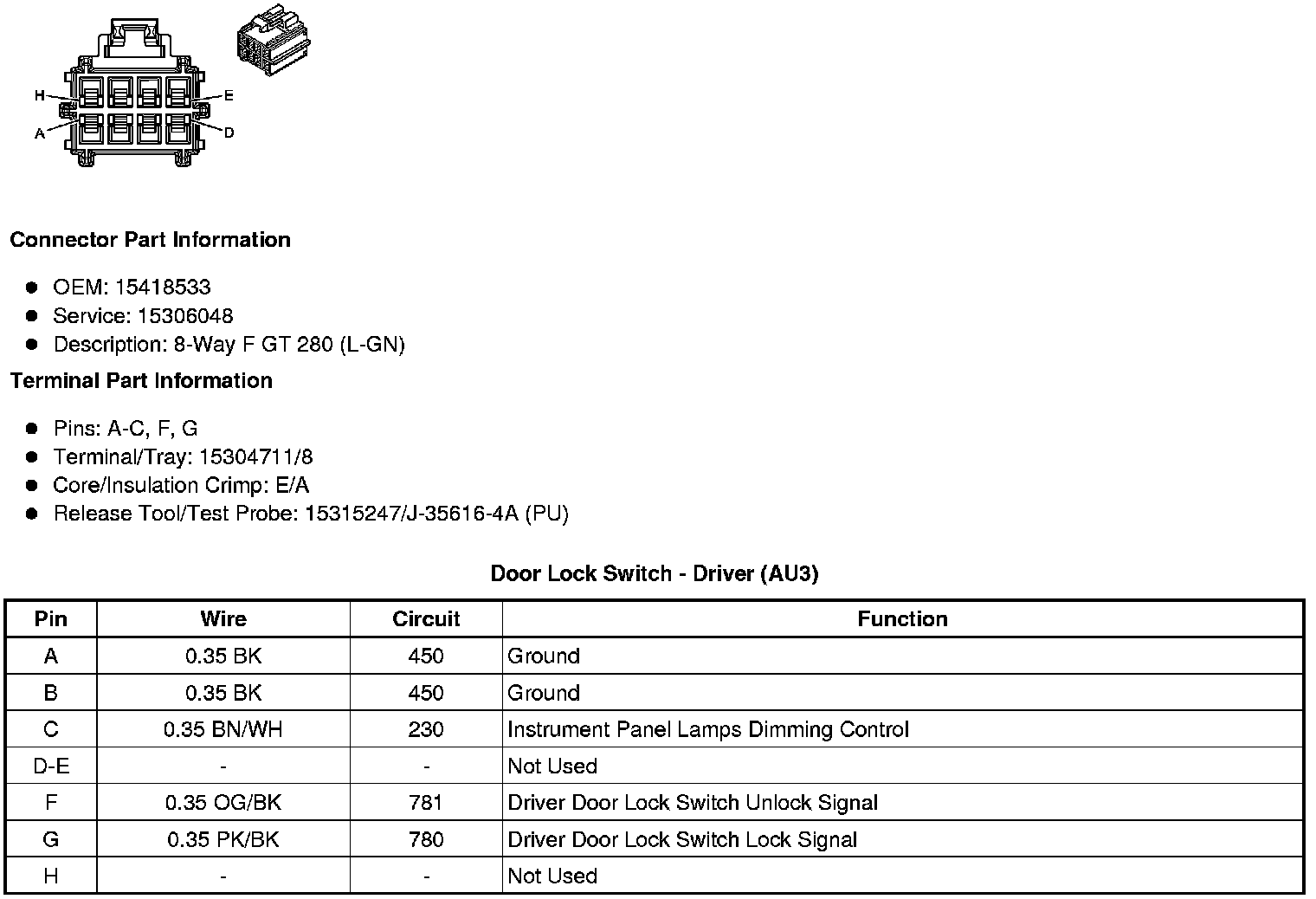

Door Lock Switch - Driver (AU3)

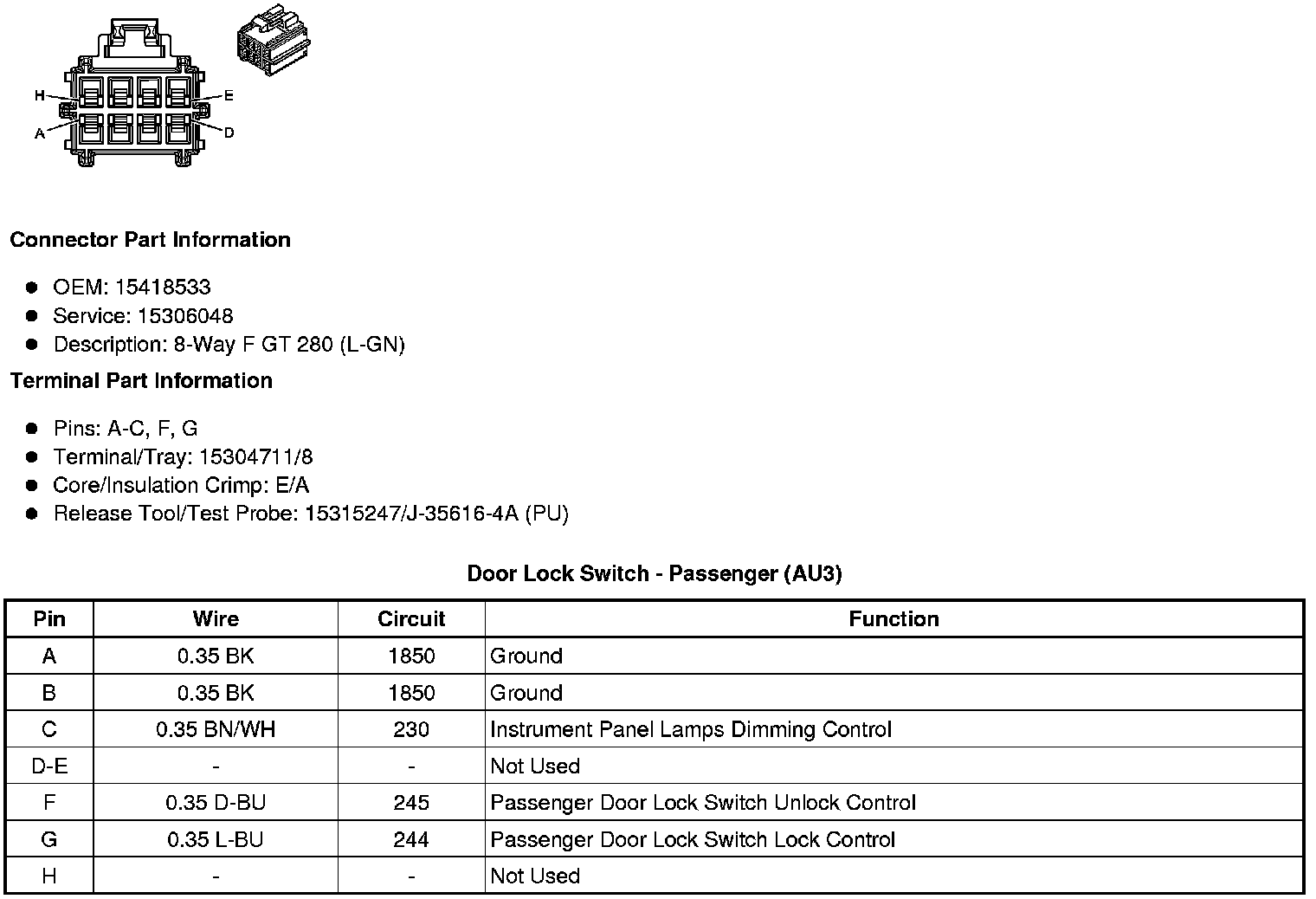

Door Lock Switch - Passenger (AU3)
