Steering Mounted Controls Assembly: Diagrams




Component Connector End Views

Steering Wheel Control Switch - Left (K34)

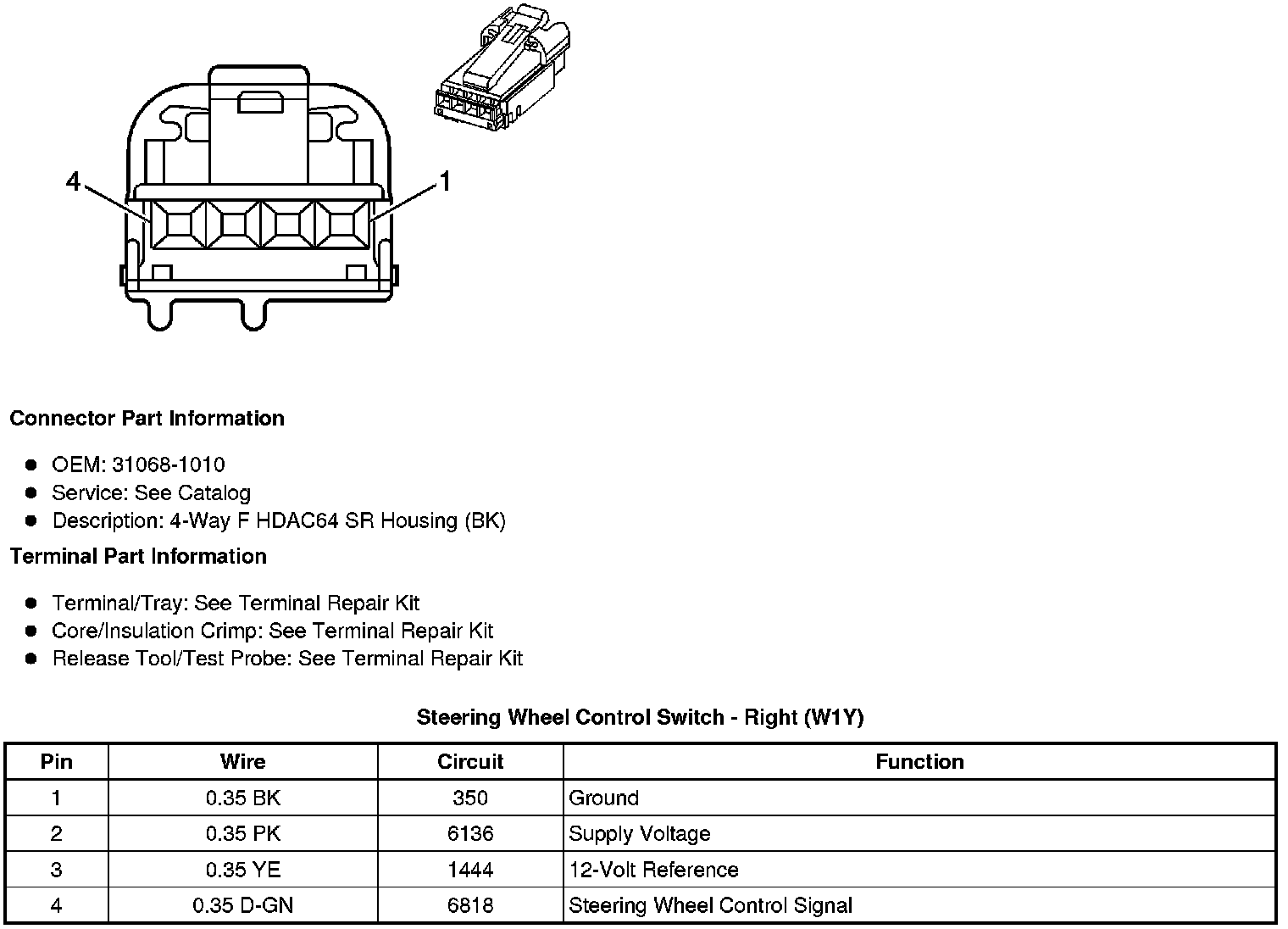

Steering Wheel Control Switch - Right (W1Y)
