Fuel Injector: Diagrams

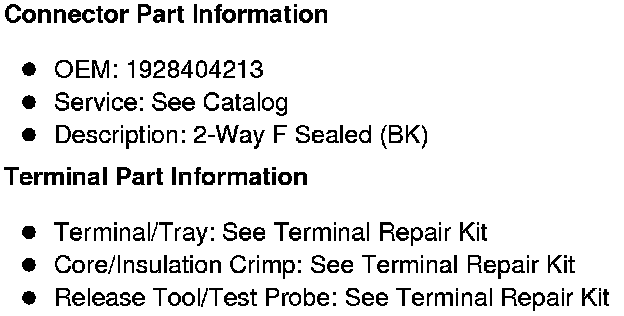

Component Connector End Views

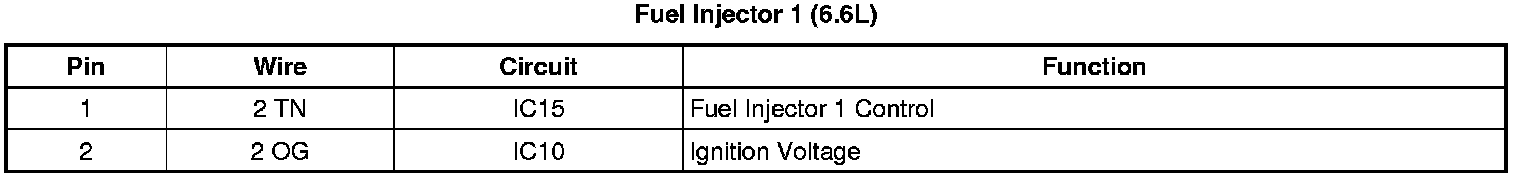

Fuel Injector 1 (6.6L)

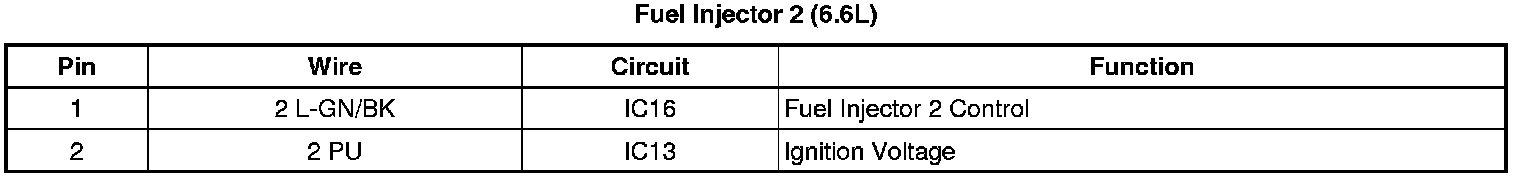

Fuel Injector 2 (6.6L)













Fuel Injector 3 (6.6L)

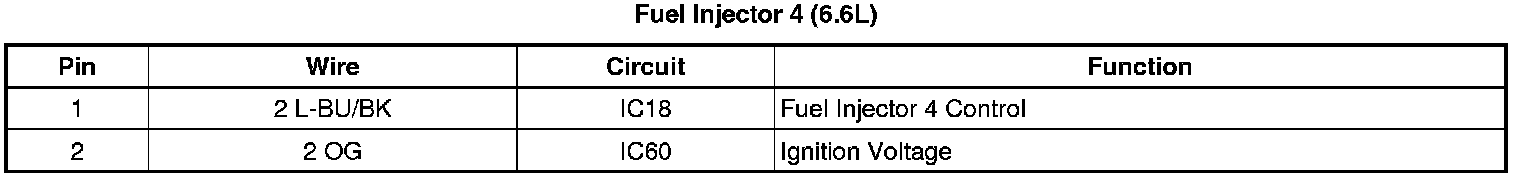

Fuel Injector 4 (6.6L)













Fuel Injector 5 (6.6L)

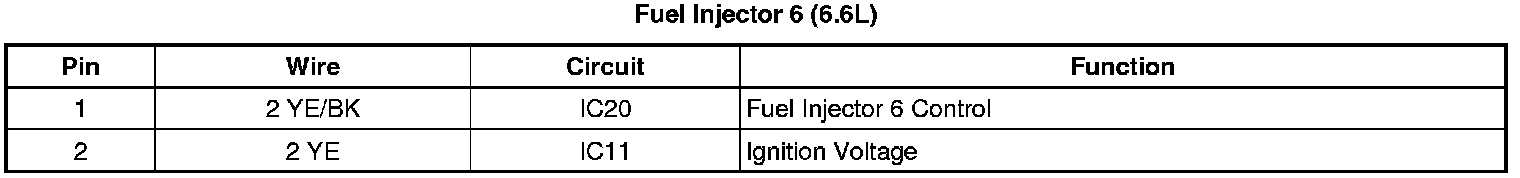

Fuel Injector 6 (6.6L)













Fuel Injector 7 (6.6L)













Fuel Injector 8 (6.6L)
