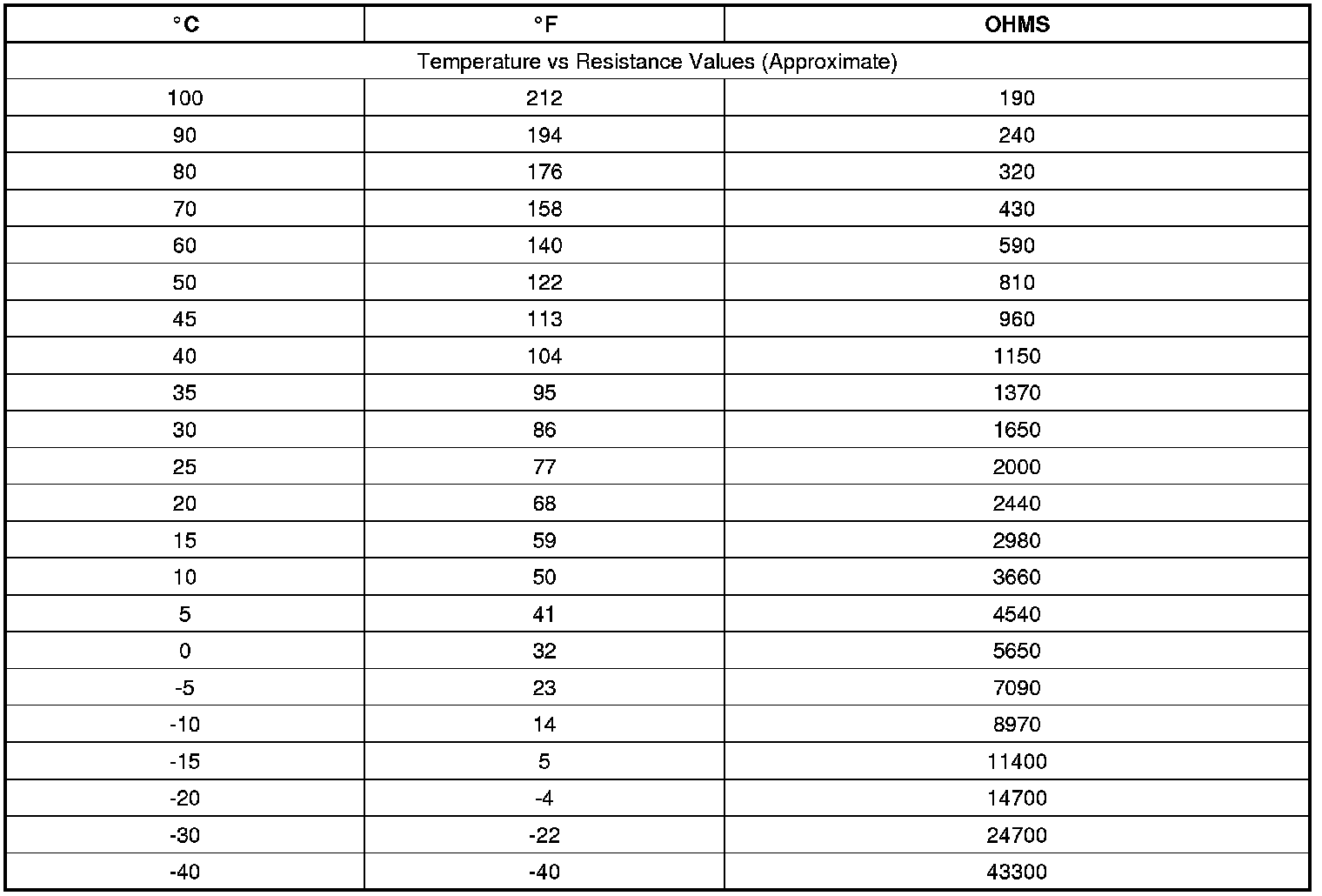

Temperature Versus Resistance (IAT Sensor 1)
Temperature Versus Resistance (IAT Sensor 1)
Temperature Versus Resistance (IAT Sensor 1)
