X112

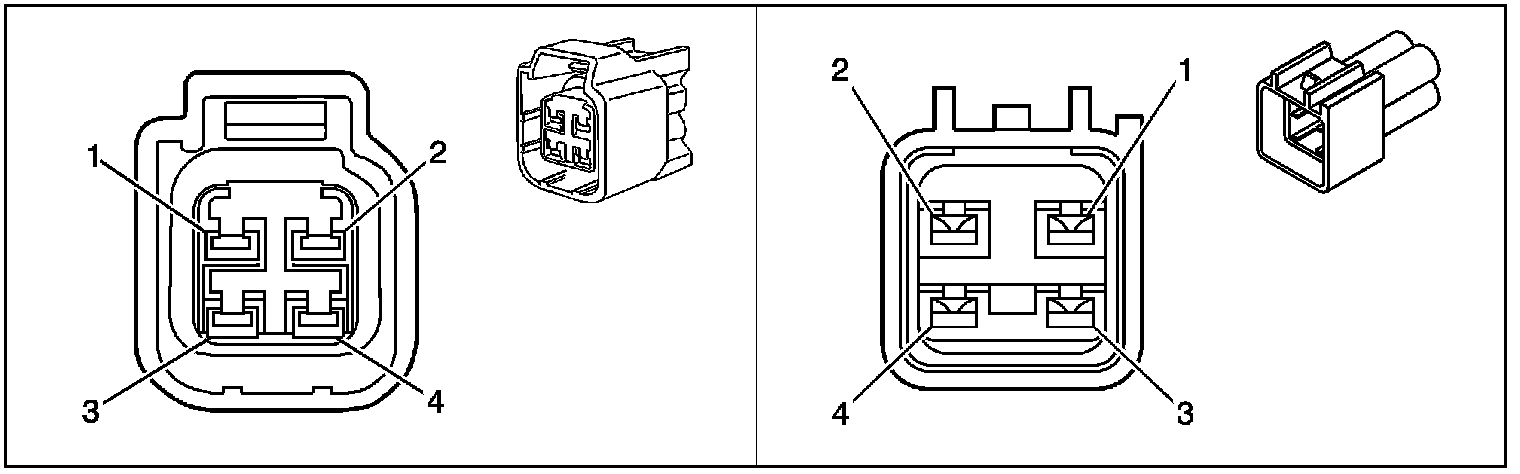

Inline Harness Connector End Views

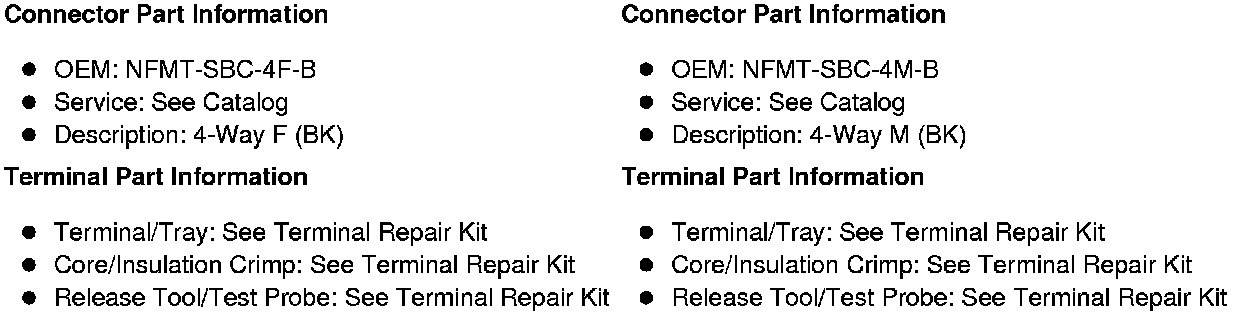

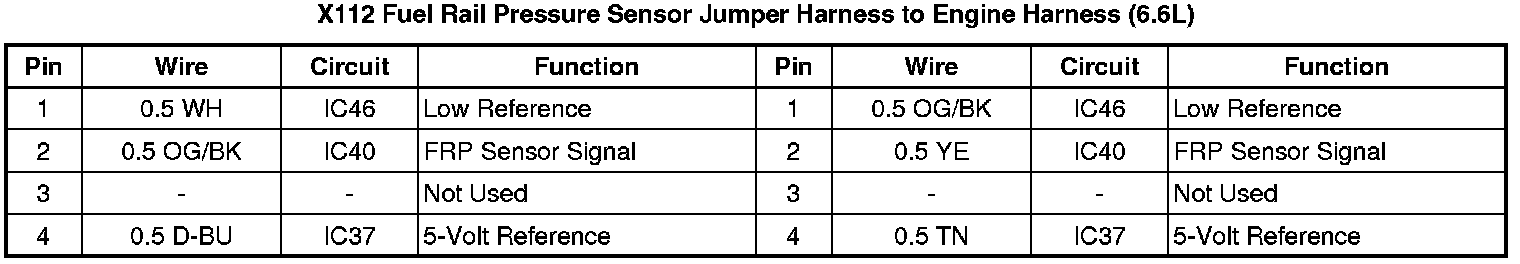

X112 Fuel Rail Pressure Sensor Jumper Harness to Engine Harness (6.6L)
