Turn Signal Lamp: Diagrams




Component Connector End Views

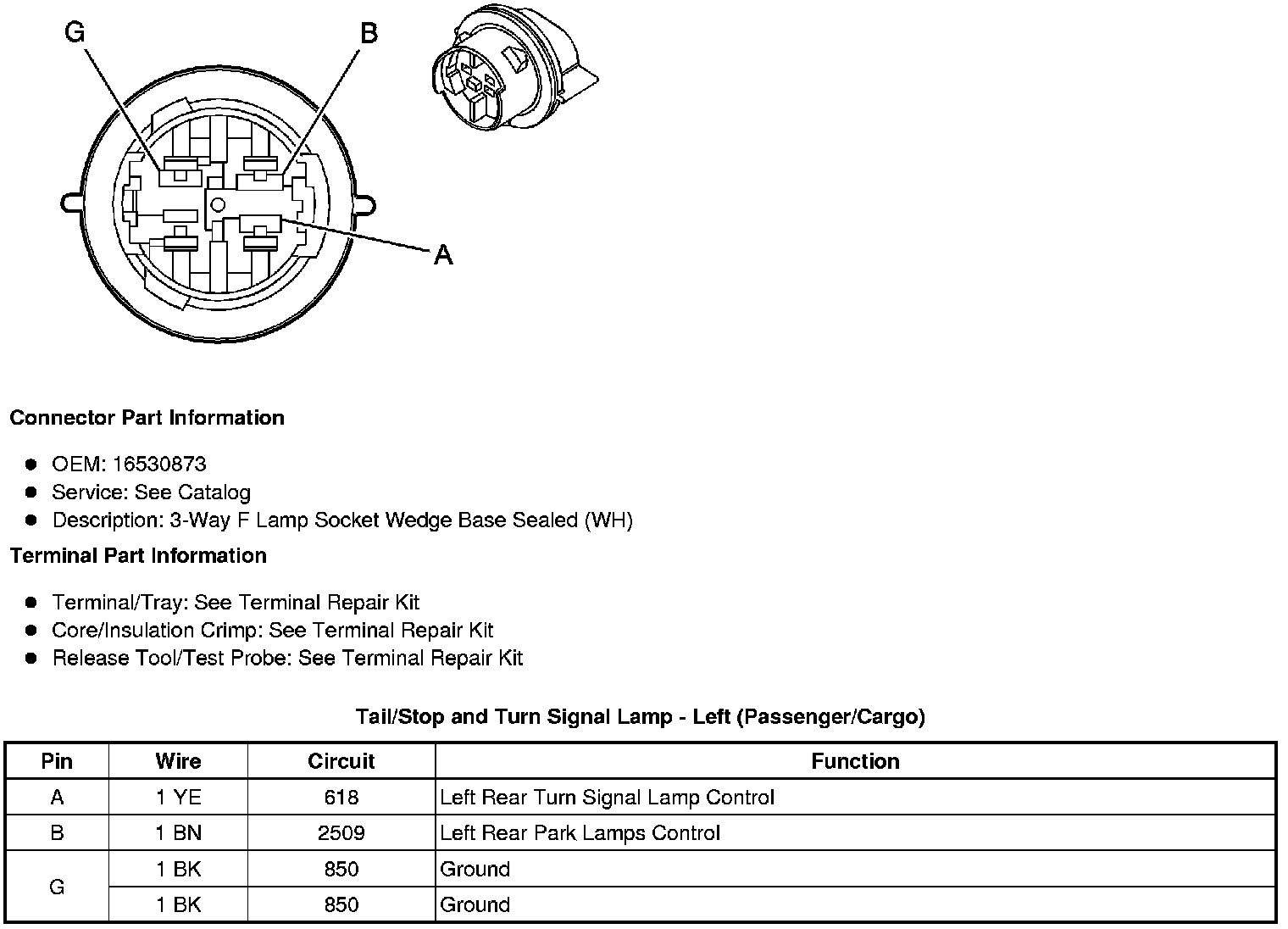

Tail/Stop and Turn Signal Lamp - Left (Passenger/Cargo)






Tail/Stop and Turn Signal Lamp - Right (Passenger/Cargo)
