Variable Valve Timing Actuator: Service and Repair

Camshaft Position Sensor Exciter Ring Replacement

Removal Procedure




1. Remove the engine front cover. Refer to Engine Front Cover Replacement (Service and Repair).

Caution: Do not use an impact driver to remove or install the oil pump driven gear nut. Use of an impact driver may shear the oil pump drive gear pin in the crankshaft.

2. While holding the secondary oil pump shaft with a hex driver, remove the oil pump driven gear nut.
3. Remove the oil pump driven gear.





Note: DO NOT remove the reluctor from the oil pump drive gear. The reluctor is timed to the gear and once removed the correct timing will be lost.

4. Remove the oil pump drive gear and crankshaft sensor reluctor.

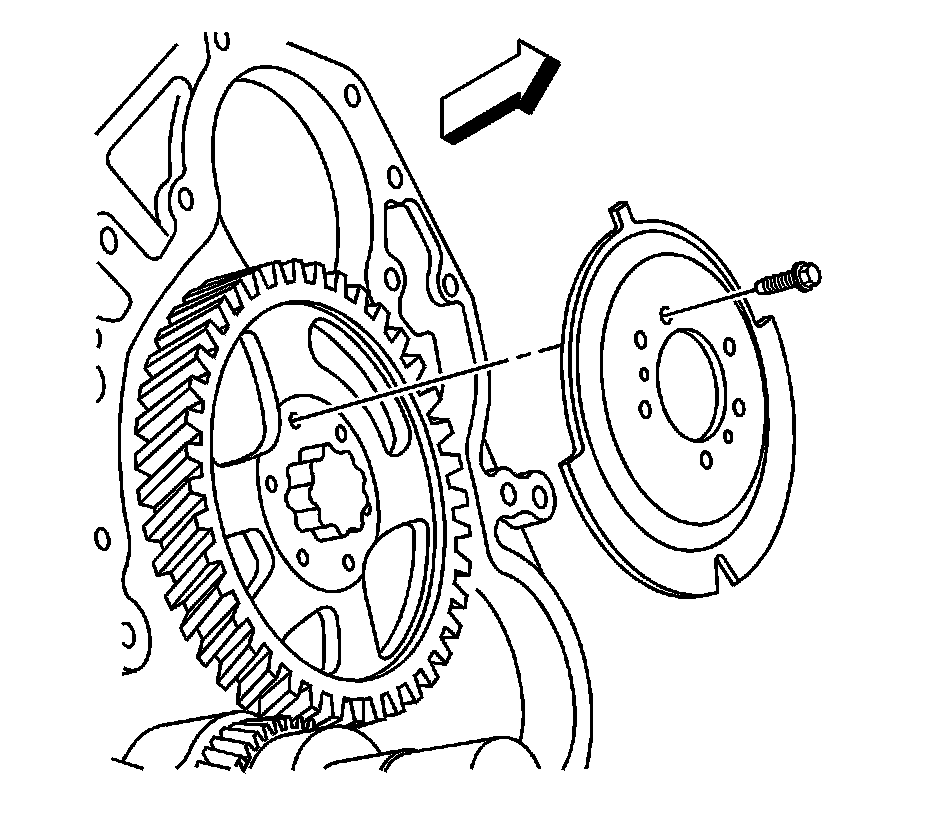

5. Remove the camshaft reluctor screws.
6. Remove the camshaft reluctor.

Installation Procedure




1. Position the camshaft reluctor to the camshaft gear.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the camshaft reluctor bolts and tighten to 9 Nm (80 lb in).





Note: Do not damage the teeth on the reluctor.

3. Install the oil pump drive gear and reluctor to the crankshaft.




4. Install the oil pump driven gear.

Caution: Do not use an impact driver to remove or install the oil pump driven gear nut. Use of an impact driver may shear the oil pump drive gear pin in the crankshaft.

5. While holding the secondary oil pump shaft with a hex driver, install the oil pump driven gear nut and tighten to 100 Nm (74 lb ft).
6. Install the engine front cover. Refer to Engine Front Cover Replacement (Service and Repair).
