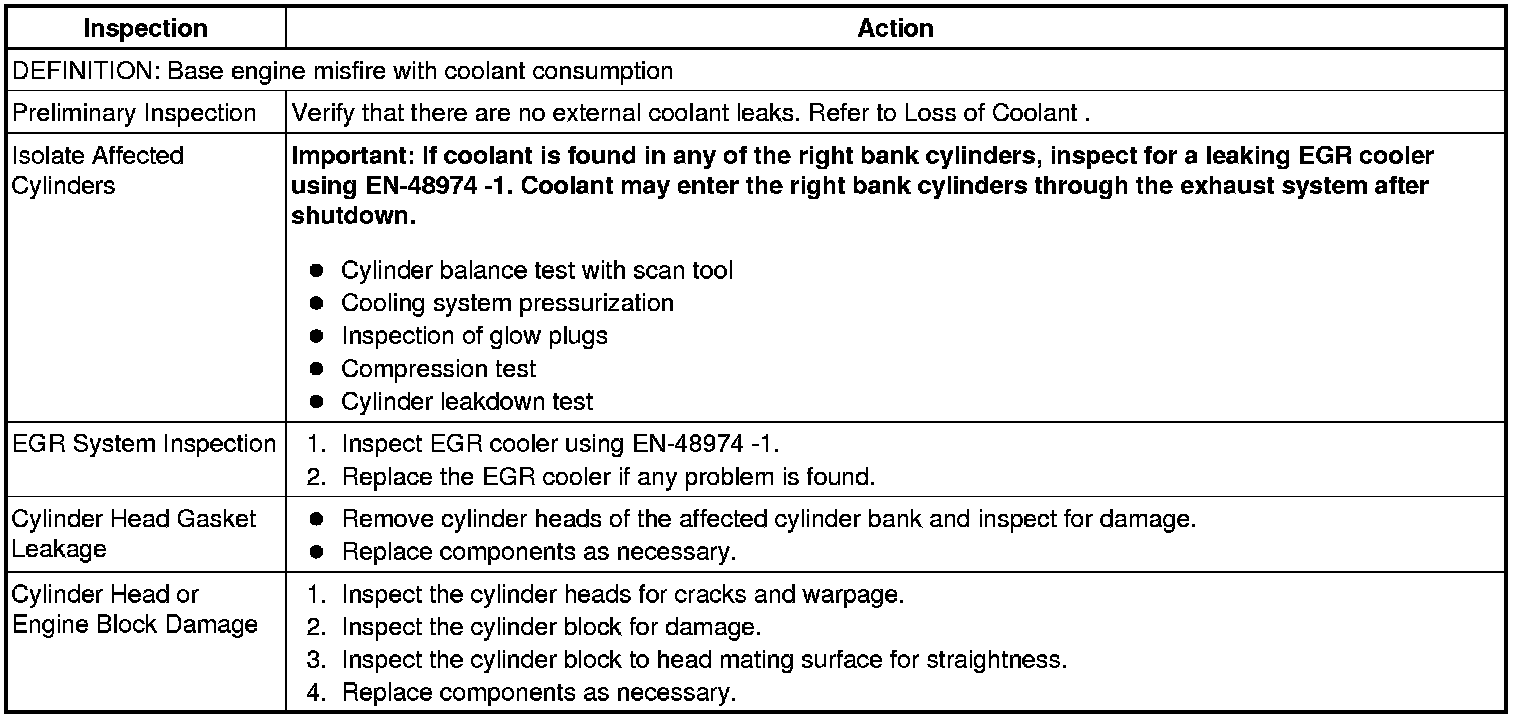

Base Engine Misfire with Coolant Consumption
Base Engine Misfire with Coolant Consumption
Base Engine Misfire with Coolant Consumption
Special Tools
EN-48974 EGR Cooler Pressure Tester Adapter Set
