18. Exhaust Gas Recirculation Valve and Cooler Removal

Exhaust Gas Recirculation Valve and Cooler Removal

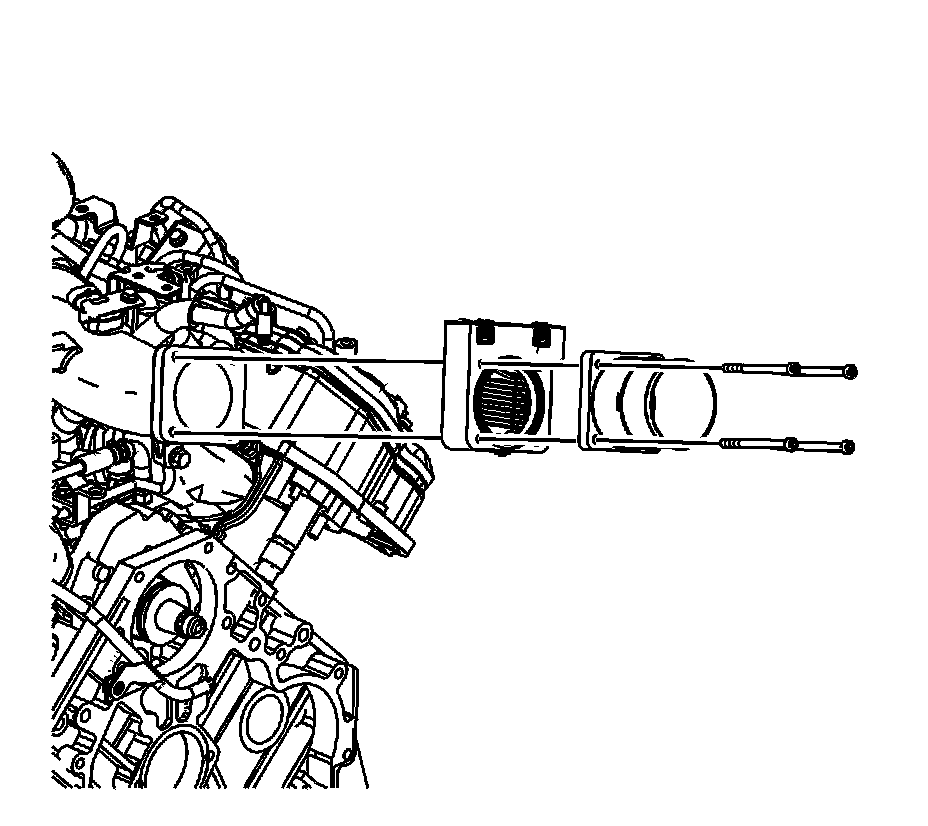

1. Remove the intake pipe to air inlet tube bolts.
2. Remove the intake pipe.
3. Remove the intake heater.




4. Remove the MAP sensor and bolt.
5. Remove the rear bracket and bolt.
6. Remove the air inlet tube to intake manifold tube bolt and nut.




7. Remove the air inlet tube nuts and bolts.
8. Remove the air inlet tube.




9. Remove the rear exhaust gas recirculation (EGR) cooler bolts.




10. Remove the EGR mount bolts and nut.
11. Remove the EGR and cooler.




12. Remove the EGR cooler bracket bolts.
13. Remove the EGR cooler bracket.
