117. Engine Removal from Stand

Engine Removal from Stand

Tools Required

J 36857 Engine Lift Bracket

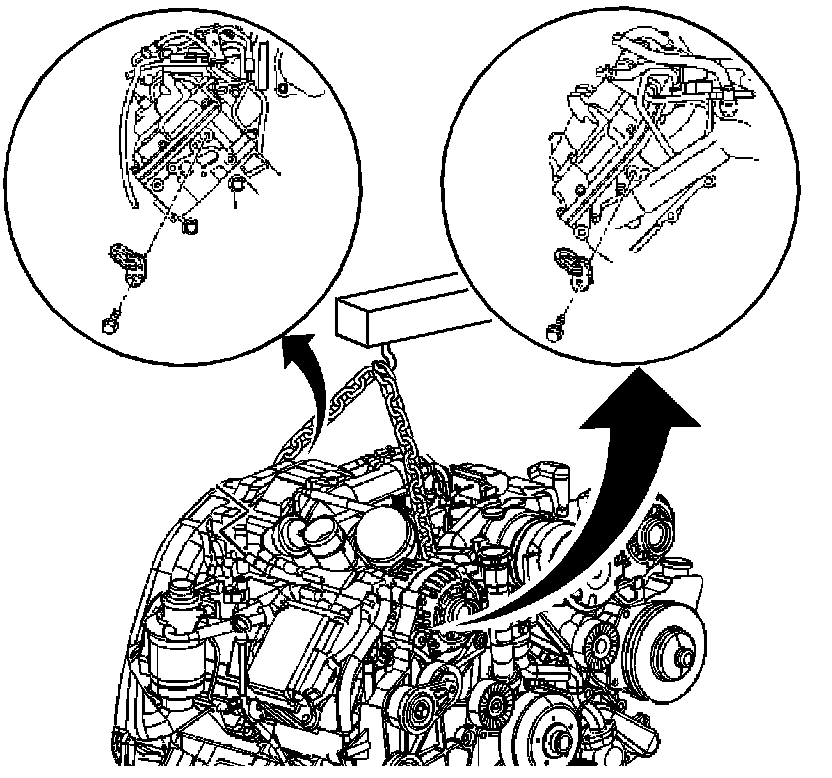

1. Bolt J 36857 to the ends of the cylinder heads.




2. Lift the engine and the engine stand with a suitable hoist.
3. Remove the engine stand from the engine adapter.
4. Lower the engine to the floor. Support the engine with blocks.
5. Remove the engine adapter.
