115. Power Steering Pump Mounting Bracket Installation

Power Steering Pump Mounting Bracket Installation

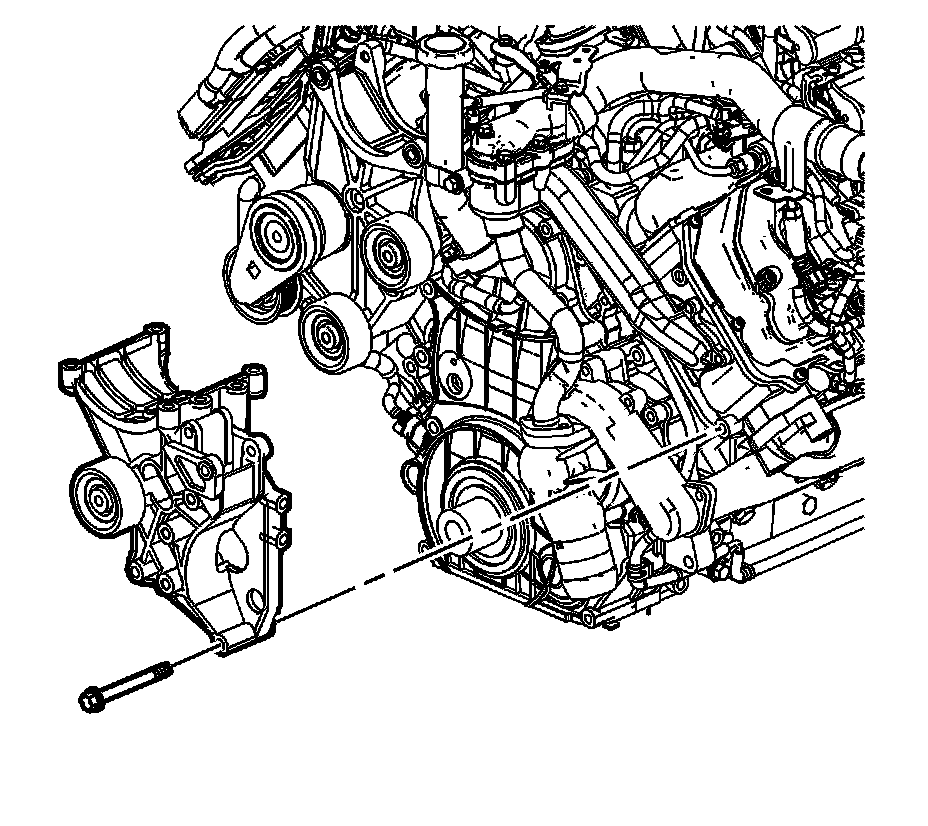

1. Install the power steering pump mounting bracket.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the power steering pump mounting bracket bolts and tighten to 46 Nm (34 lb ft).
