Power Moding Diagrams




Power Moding Schematics

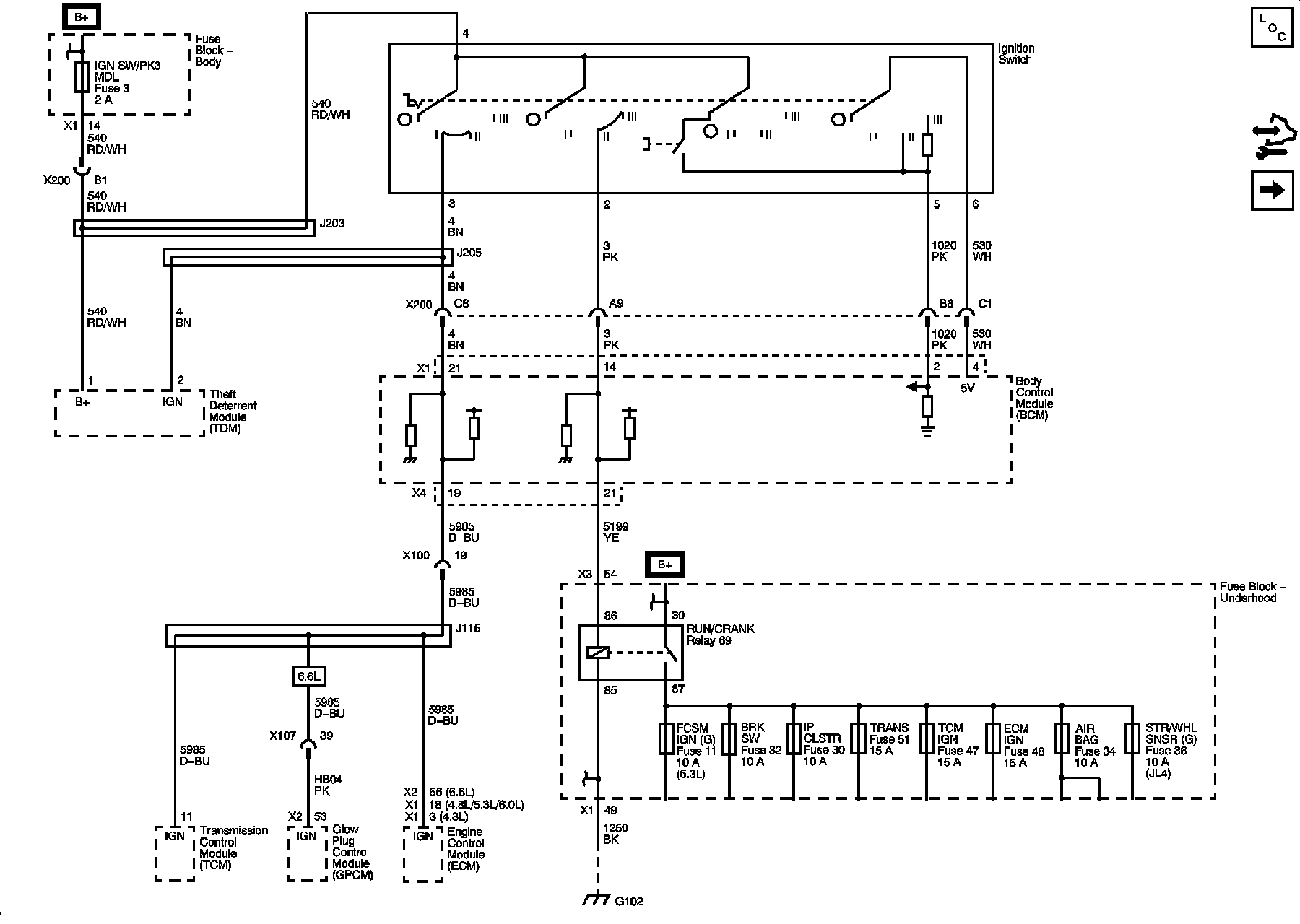

Power Modes RUN/CRANK and Serial Data Wake-Up

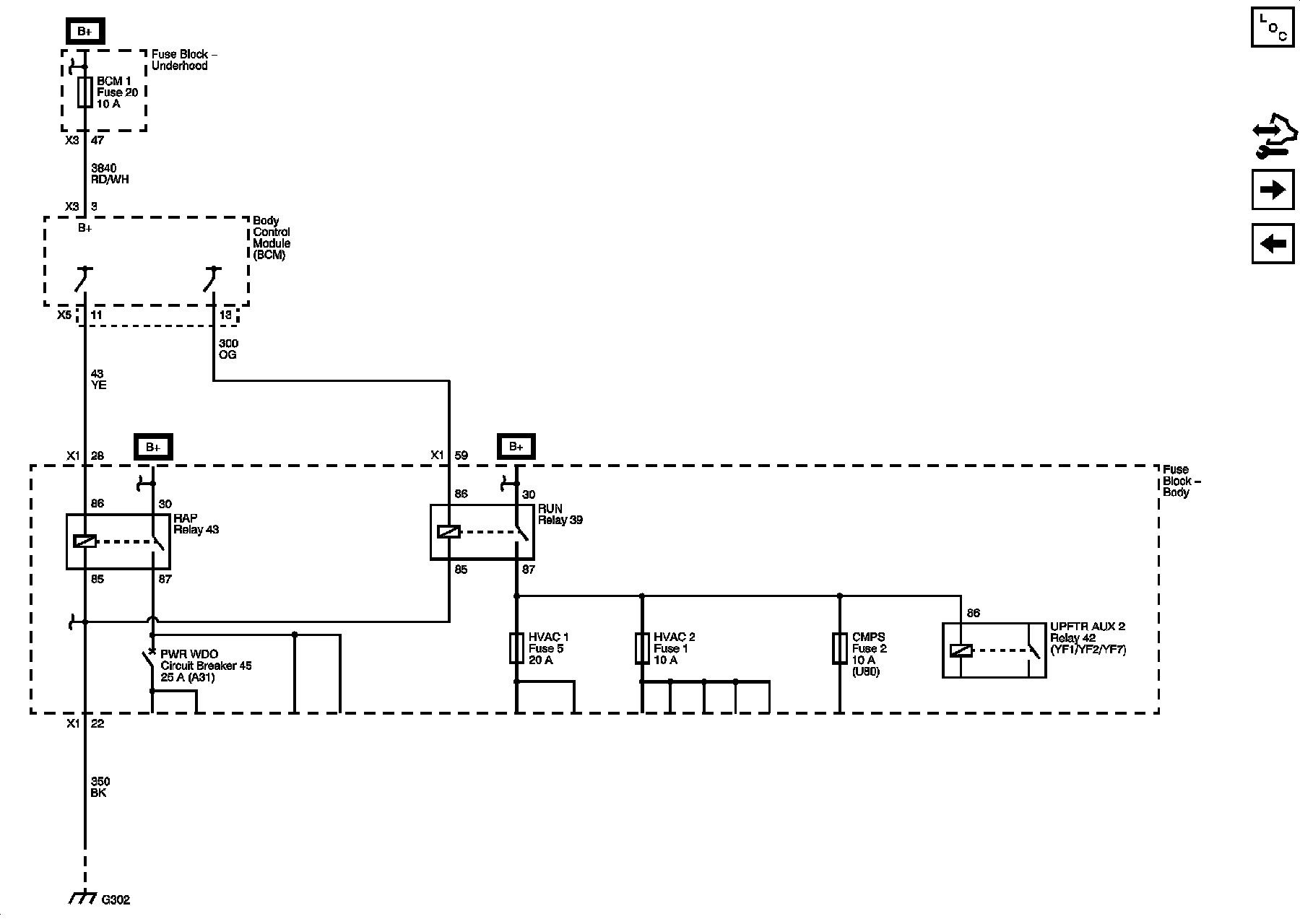

Power Modes RAP and RUN

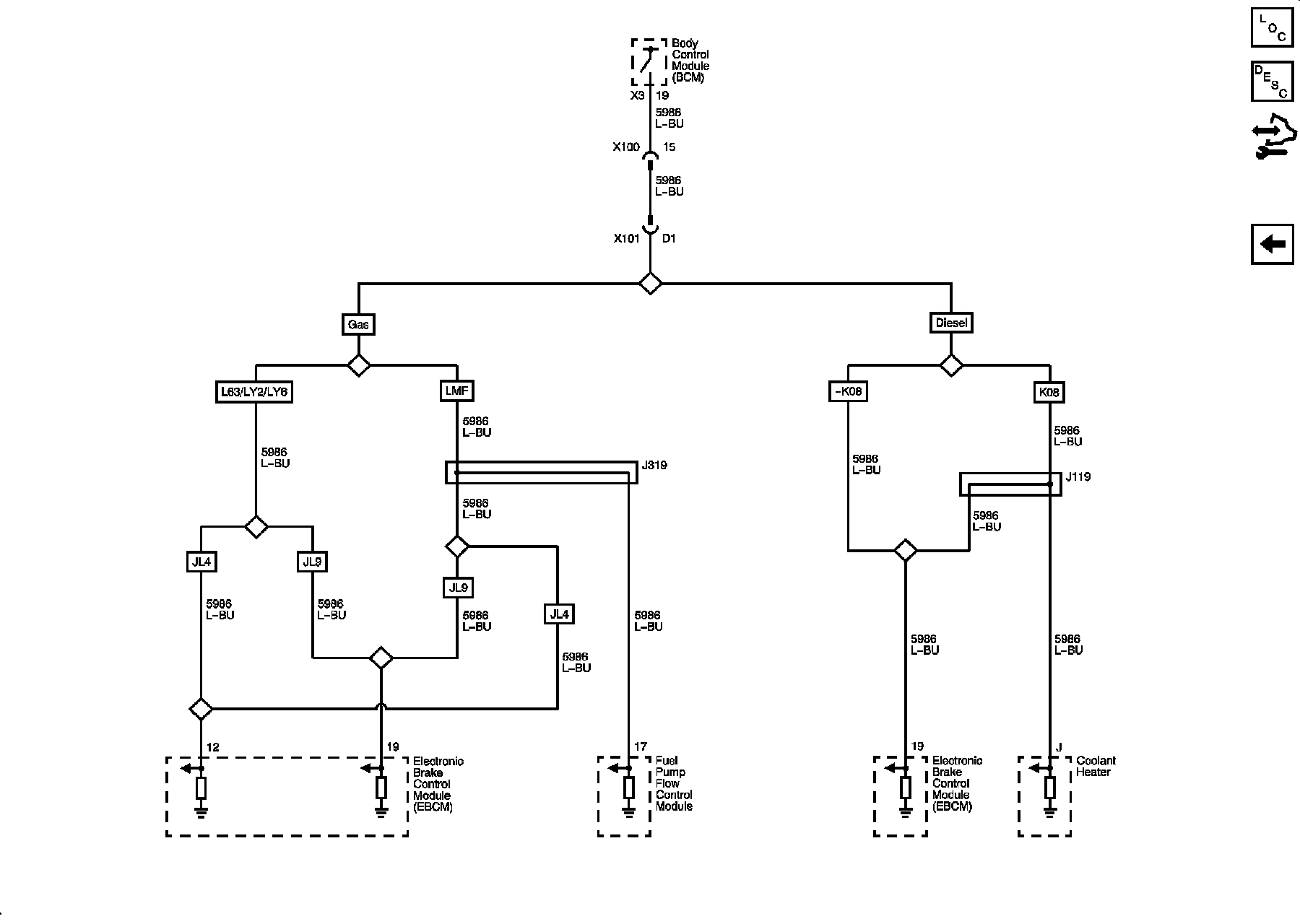

Power Modes Serial Data Enable
