Power Distribution Diagram 3

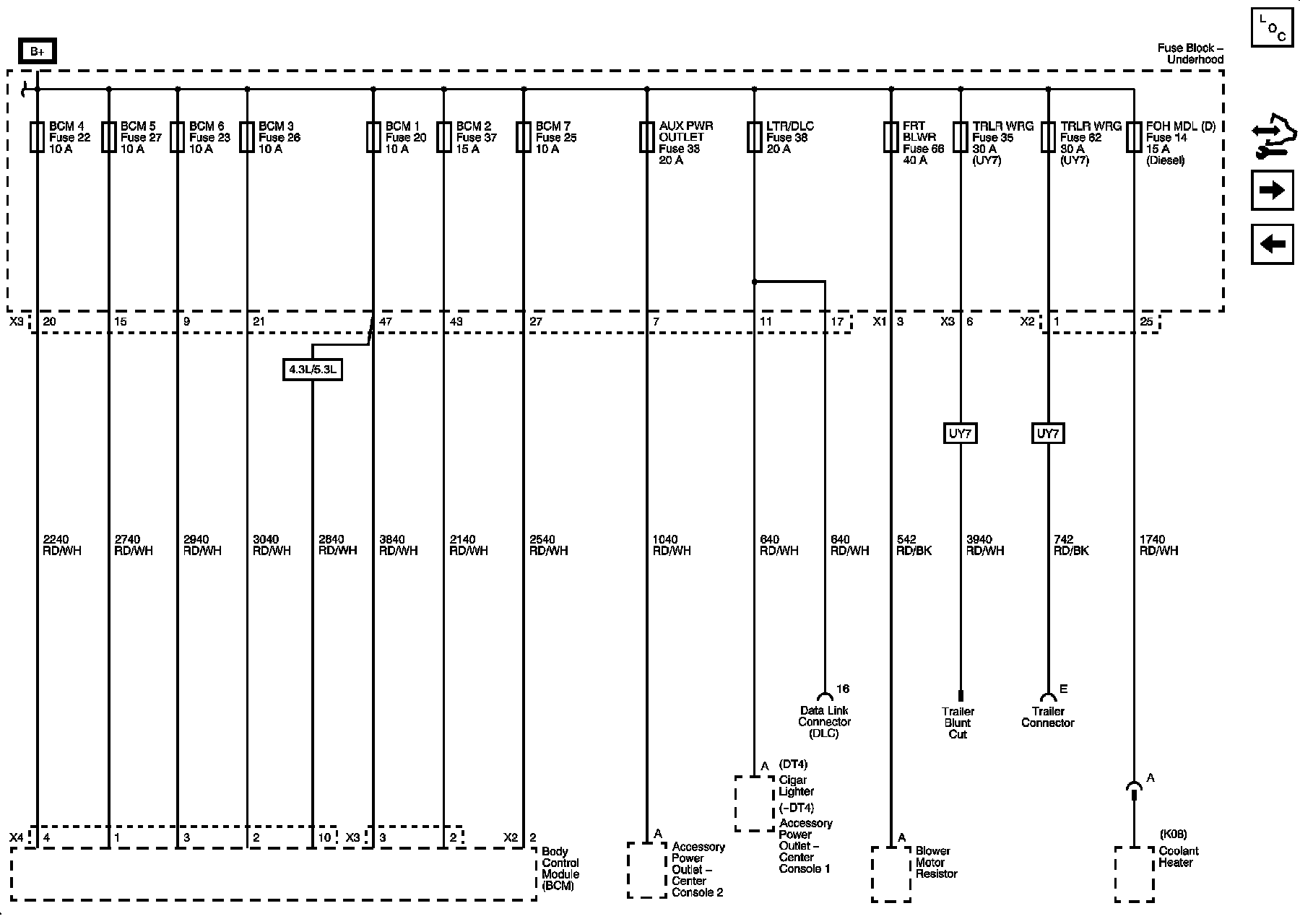

Power Distribution Schematics

BCM 1-7, AUX PWR OUTLET, LTR/DLL, FRT BLWR, TRLR WRG and FOH MDL Fuses
