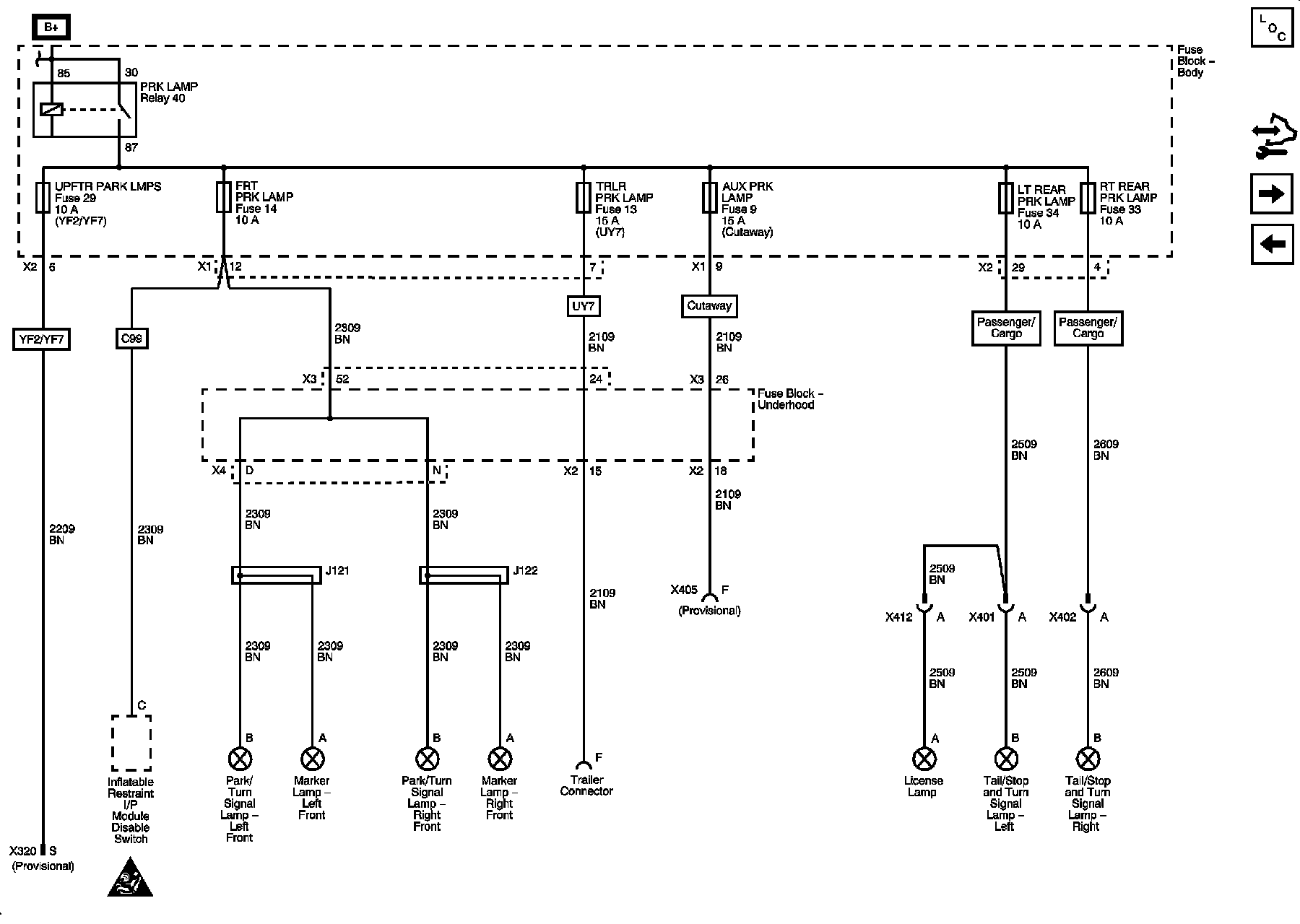

Power Distribution Diagram 19




Power Distribution Schematics

UPFTR PARK LMPS, FRT PRK LAMP, TRLR PRK LAMP, AUX PRK LAMP, LT REAR PRK LAMP and RT REAR PRK LAMP Fuses
