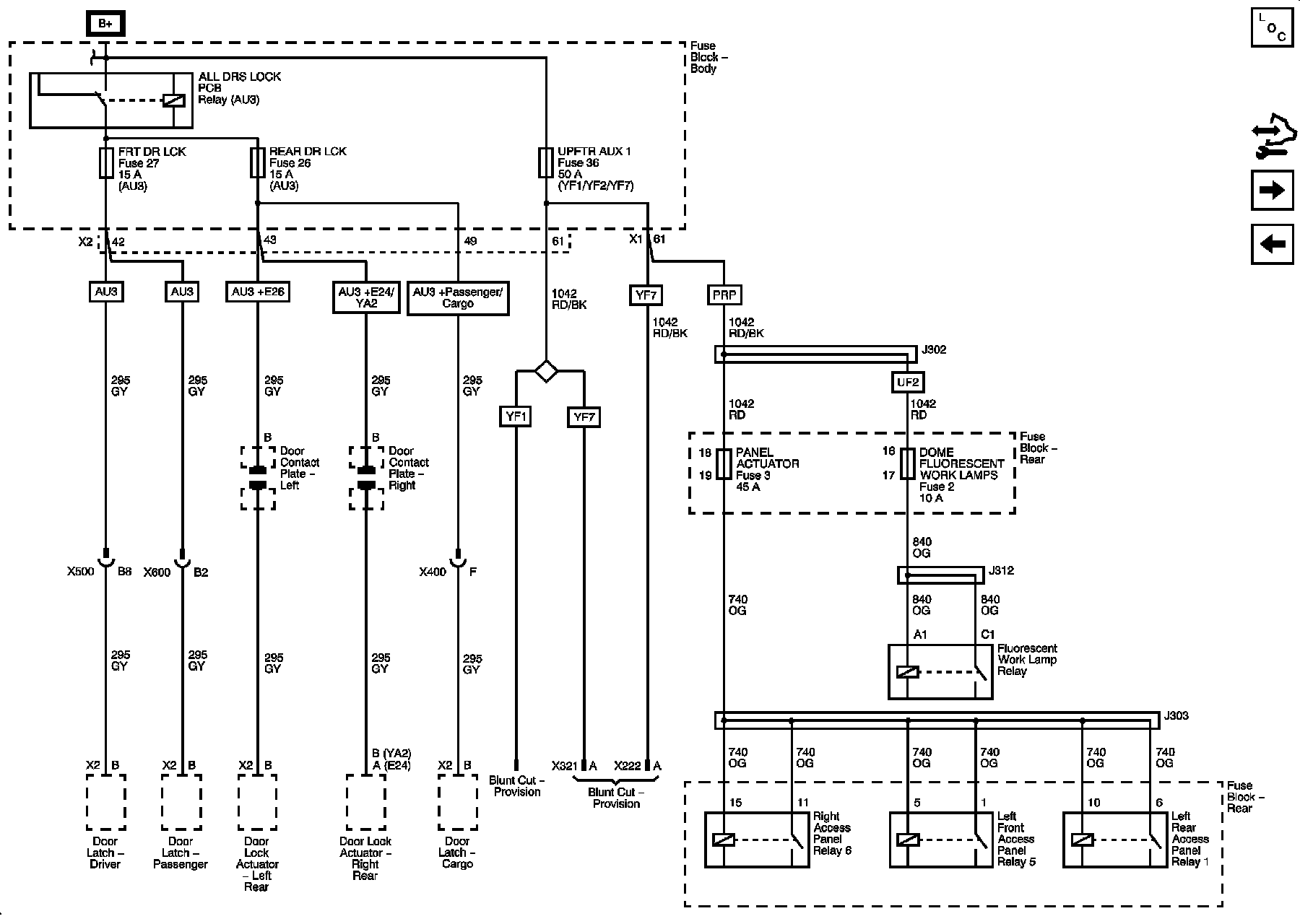

Power Distribution Diagram 16




Power Distribution Schematics

FRT DR LCK, REAR DR LCK and UPFTR AUX 1 Fuses
