Power Distribution Diagram 15
Power Distribution Diagram 15
Power Distribution Schematics

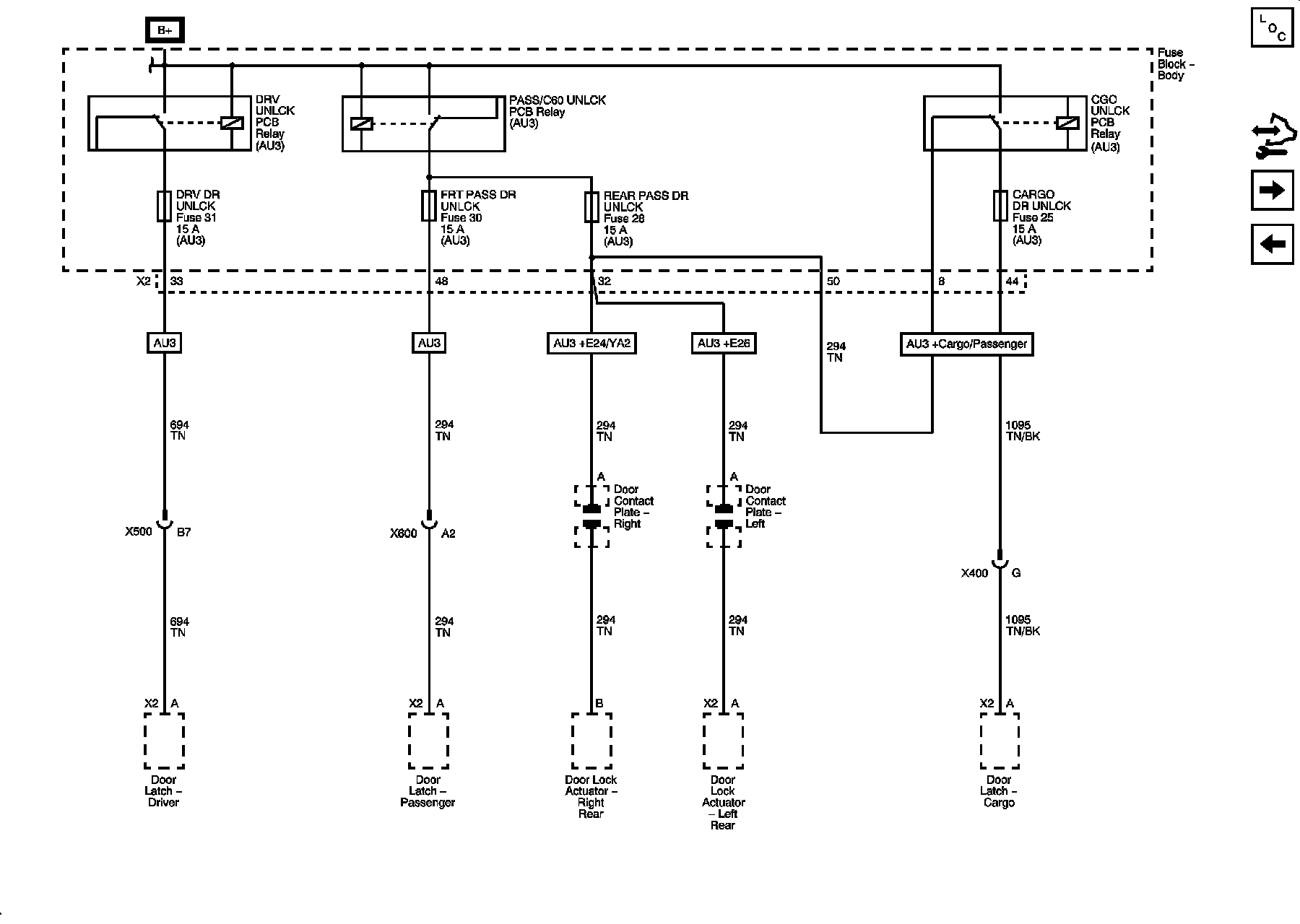

DRV DR UNLCK, FRT PASS DR UNLCK, REAR PASS DR UNLCK and CARGO DR UNLCK Fuses
