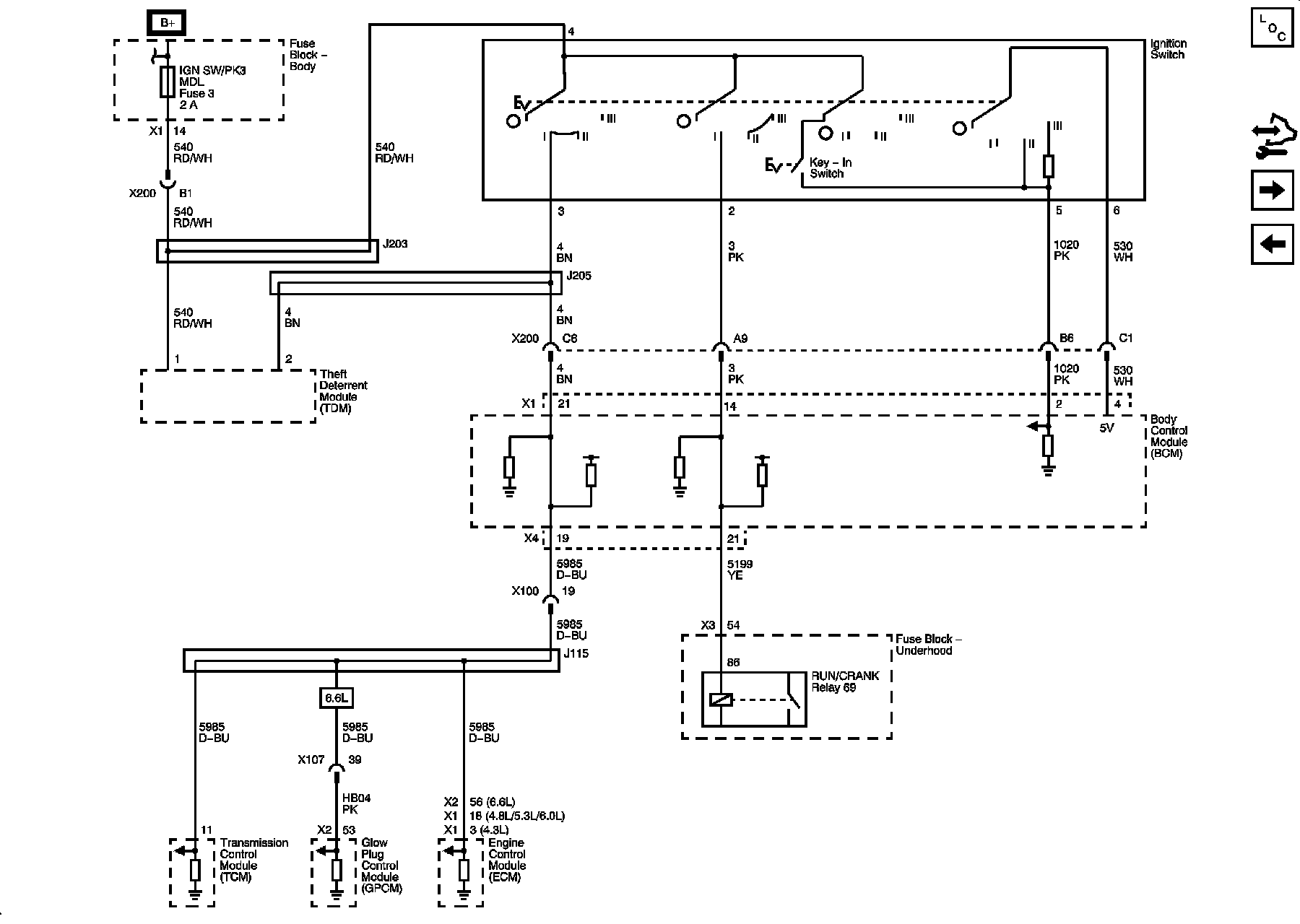

Power Distribution Diagram 13




Power Distribution Schematics

IGN SW/PK3 MDL Fuse and Ignition Switch
