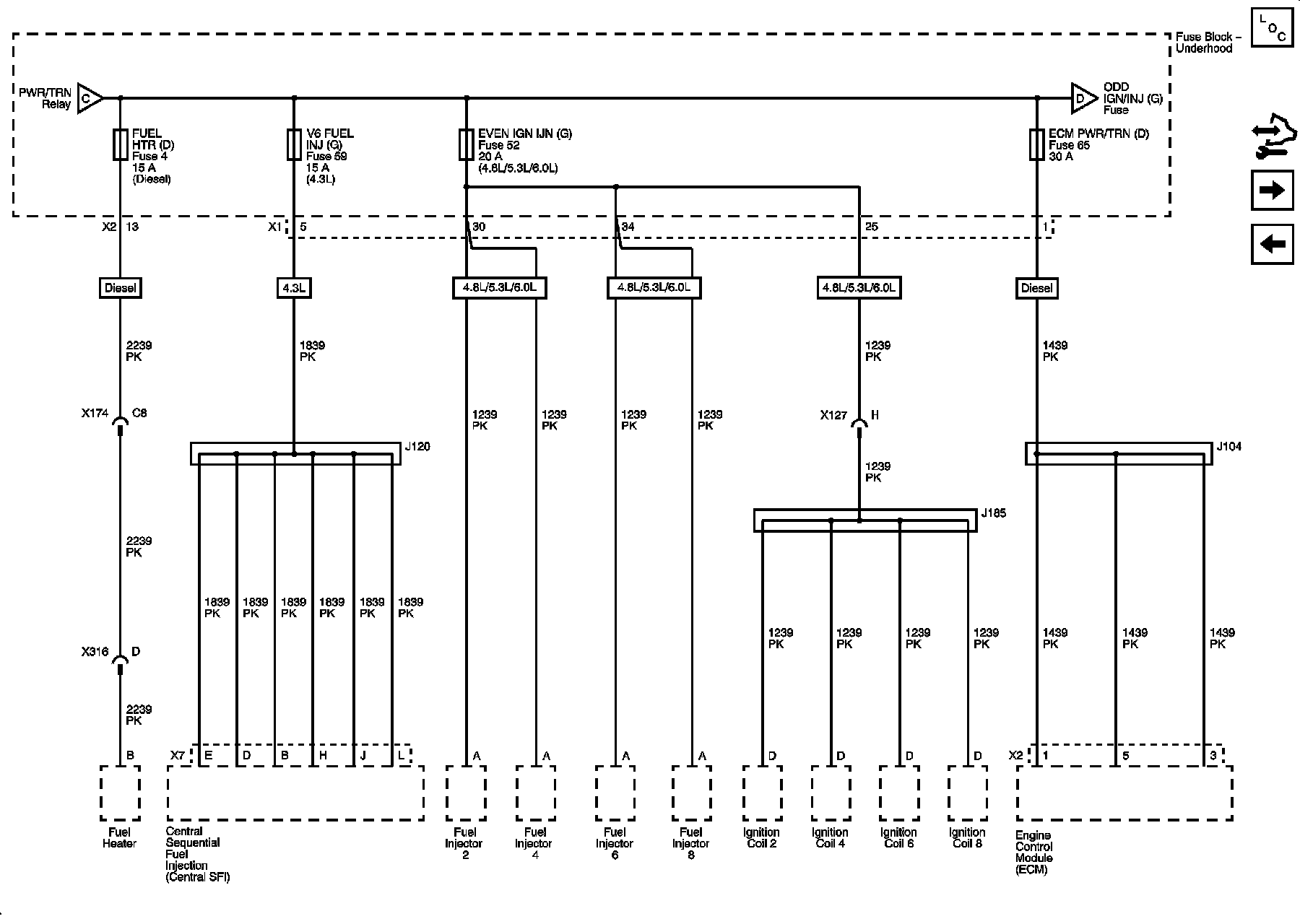

Power Distribution Diagram 10




Power Distribution Schematics

PWR/TRN BUS - FUEL HTR(D), V6 FUEL INJ(G), EVEN IGN JN(G) and ECM PWR/TRN Fuses
