Rear Floor Mat/Carpet Replacement (Passenger Models)

Rear Floor Mat/Carpet Replacement (Passenger Models)

Removal Procedure

1. Remove the rear passenger seats. Refer to Rear Bench Seat Replacement (Rear Bench Seat Replacement).
2. Remove the driver side body side trim panel. Refer to Body Side Trim Panel Replacement - Left Side (Service and Repair).
3. Remove the passenger side body side trim panel. Refer to Body Side Trim Panel Replacement - Right Side (Service and Repair).
4. Remove the rear floor carpet trim plate. Refer to Rear Floor Trim Plate Replacement (Service and Repair).
5. Remove the rear side door step mat. Refer to Rear Side Door Step Mat Replacement (Service and Repair).

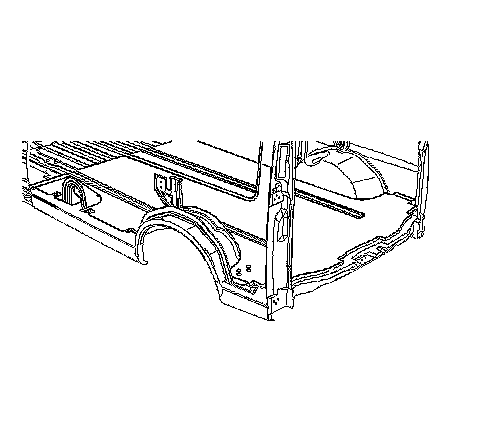

6. Remove the rear floor mat/carpet from the vehicle.

Installation Procedure





Warning

In order to avoid personal injury or vehicle damage when you repair or replace the carpet, use the same thickness and material size as the original installation. Always return the carpet to the original location.

1. Install the rear floor mat/carpet to the vehicle.
2. Install the rear side door step mat. Refer to Rear Side Door Step Mat Replacement (Service and Repair).
3. Install the rear floor carpet trim plate. Refer to Rear Floor Trim Plate Replacement (Service and Repair).
4. Install the passenger side body side trim panel. Refer to Body Side Trim Panel Replacement - Right Side (Service and Repair).
5. Install the driver side body side trim panel. Refer to Body Side Trim Panel Replacement - Left Side (Service and Repair).
6. Install the rear passenger seats. Refer to Rear Bench Seat Replacement (Rear Bench Seat Replacement).
