Front Door Latch: Diagrams
Component Connector End Views
Door Latch - Cargo X2 (Passenger/Cargo)
Door Latch - Driver X1
Door Latch - Driver X2

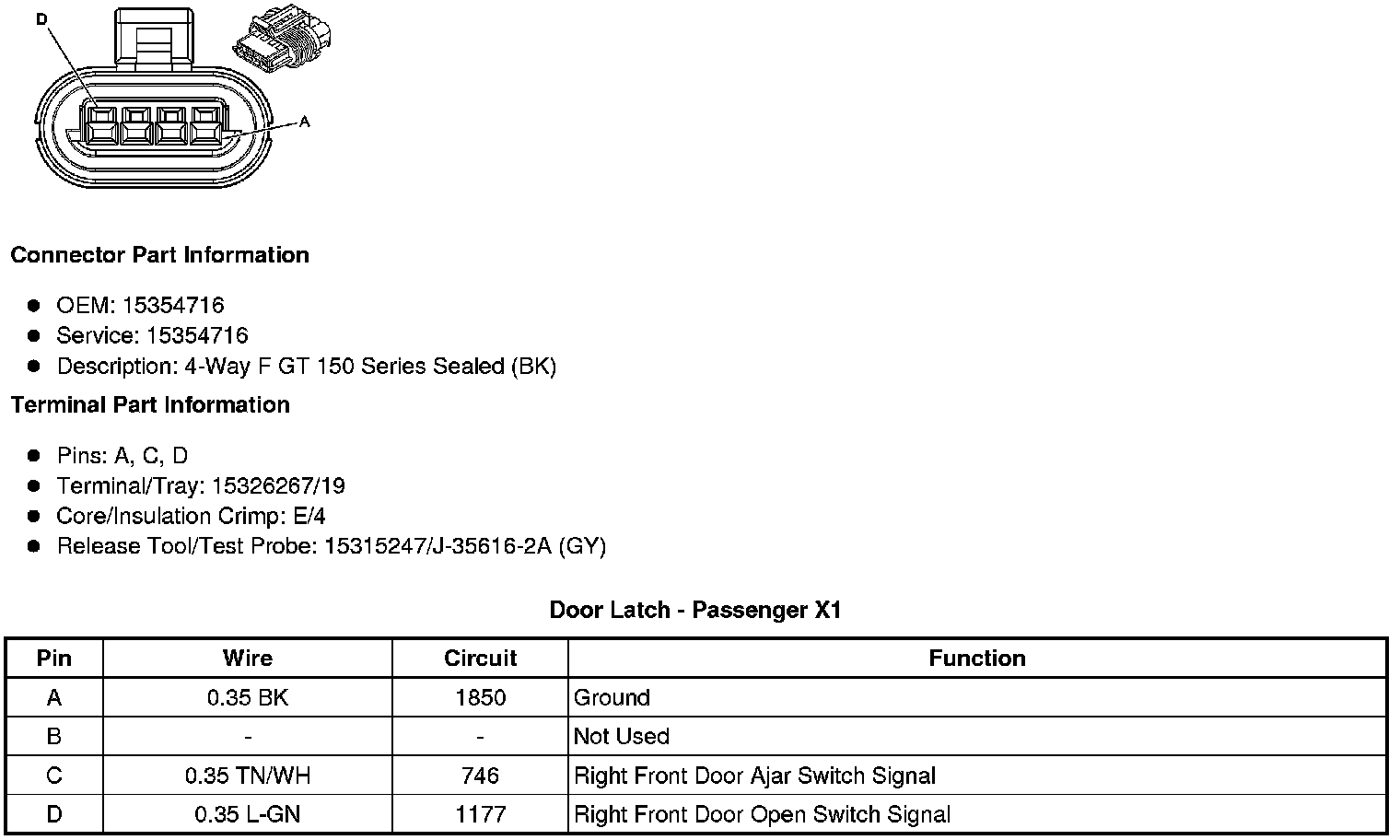

Door Latch - Passenger X1

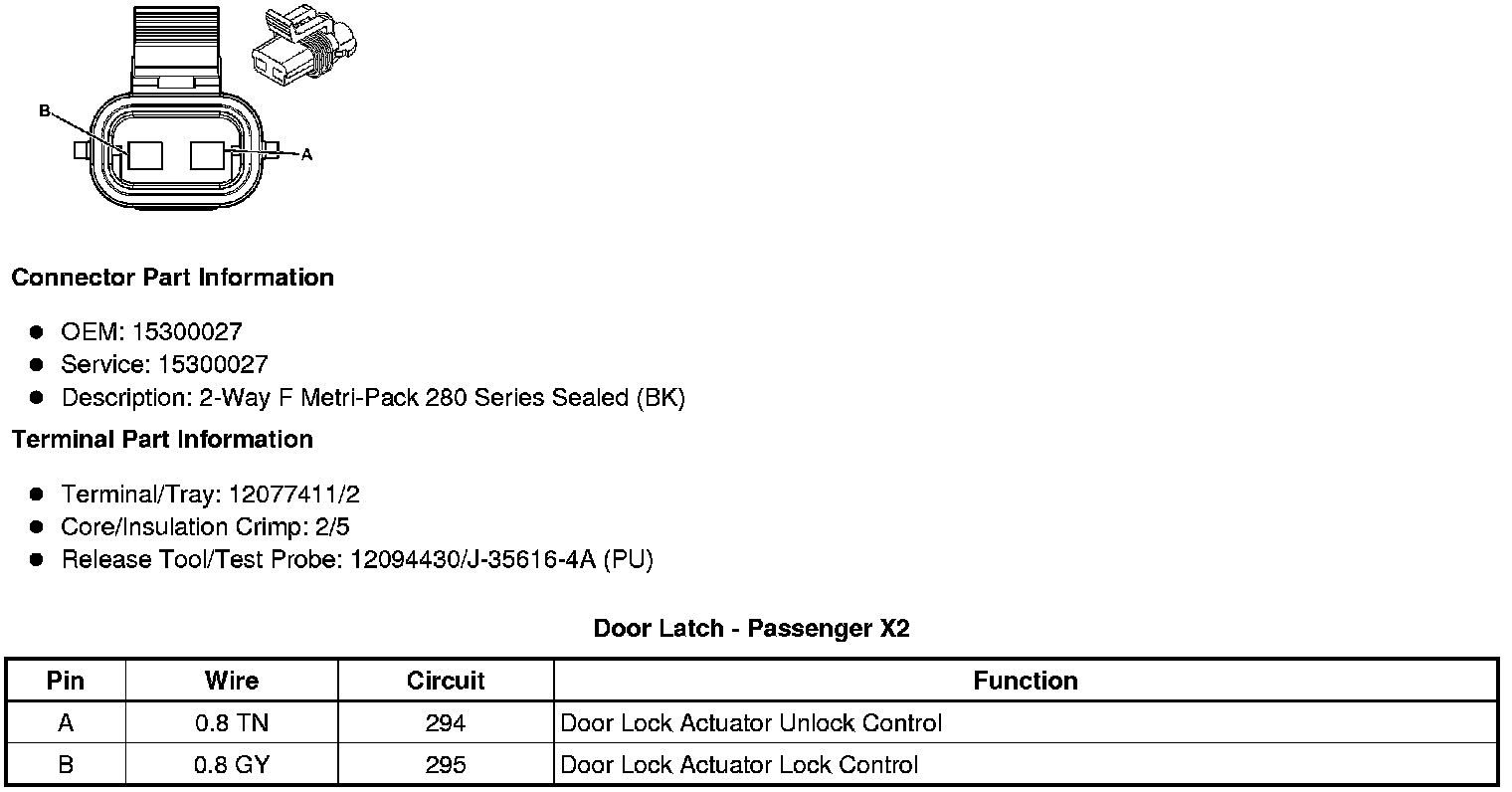

Door Latch - Passenger X2
Component Connector End Views
Door Latch - Cargo X2 (Passenger/Cargo)
Door Latch - Driver X1
Door Latch - Driver X2
Door Latch - Passenger X1
Door Latch - Passenger X2
