Door Stop: Service and Repair

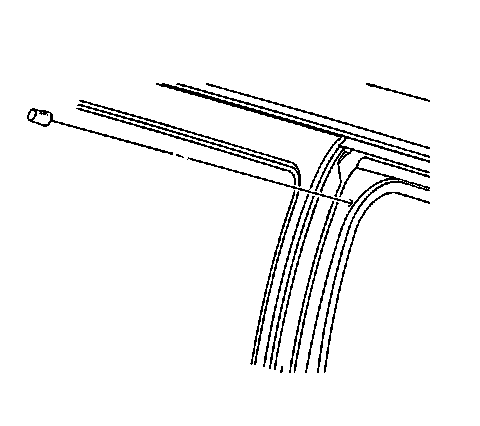

Rear Side Door Upper Bumper Replacement

Removal Procedure




1. Open the sliding side door.
2. Gently pull the sliding side door bumper from the sliding side door.

Installation Procedure




1. Apply a mild soap to the sliding side bumper.
2. Press the sliding side door bumper to the sliding side door.
