Home >> Chevy Truck >> 2008 >> HHR L4-2.0L Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> X900-X999

X900-X999

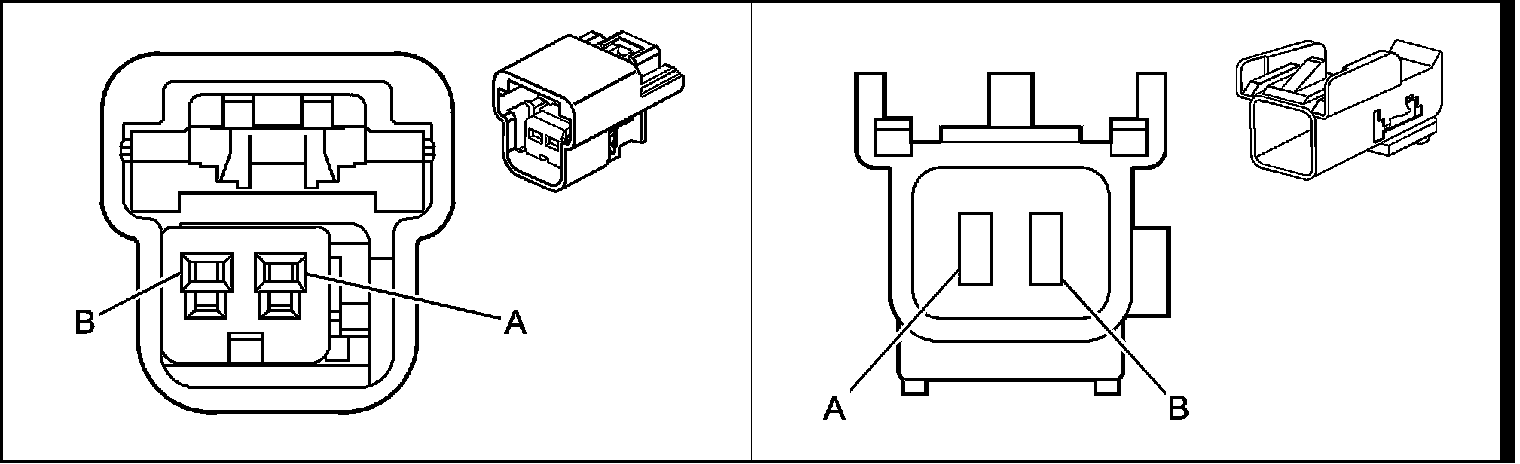

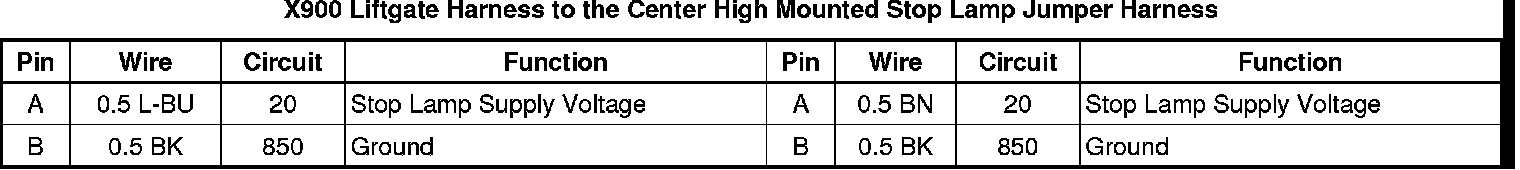

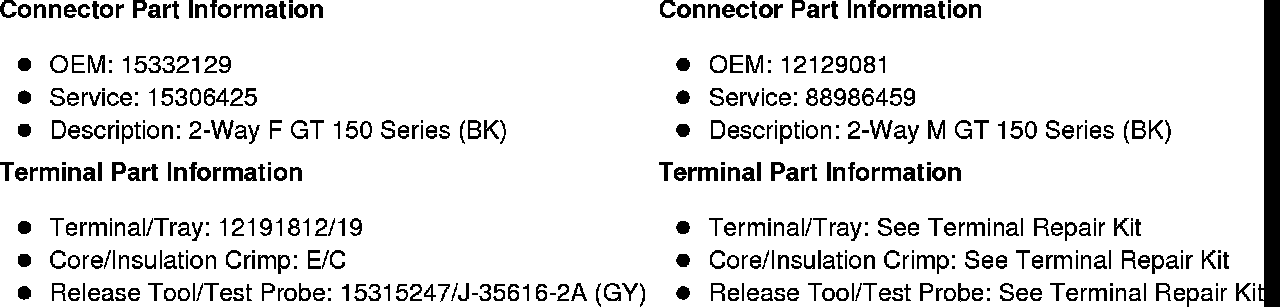

X900 Liftgate Harness to the Center High Mounted Stop Lamp Jumper Harness
