Chevy Truck
>>
2008
>>
HHR L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
X100-X199
>>
X171
X171

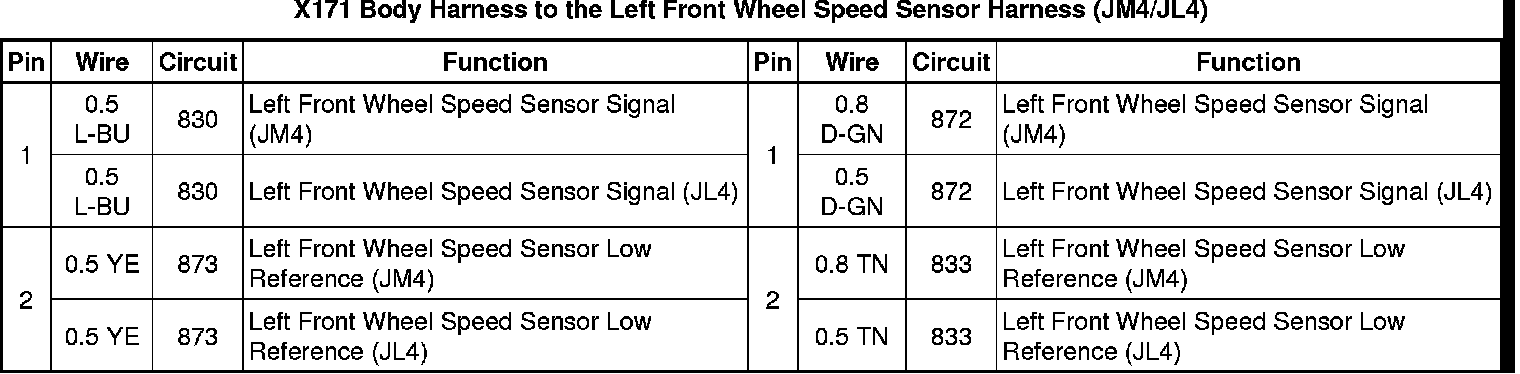

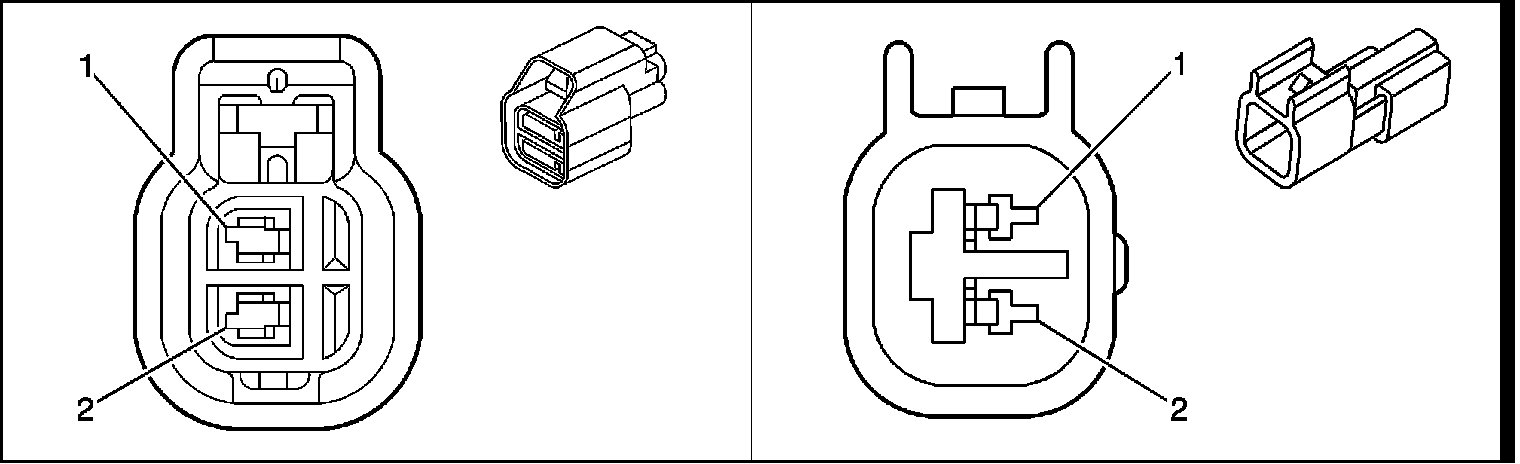

X171 Body Harness to the Left Front Wheel Speed Sensor Harness (JM4/JL4)
