Home >> Chevy Truck >> 2008 >> HHR L4-2.0L Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> X100-X199 >> X100

X100

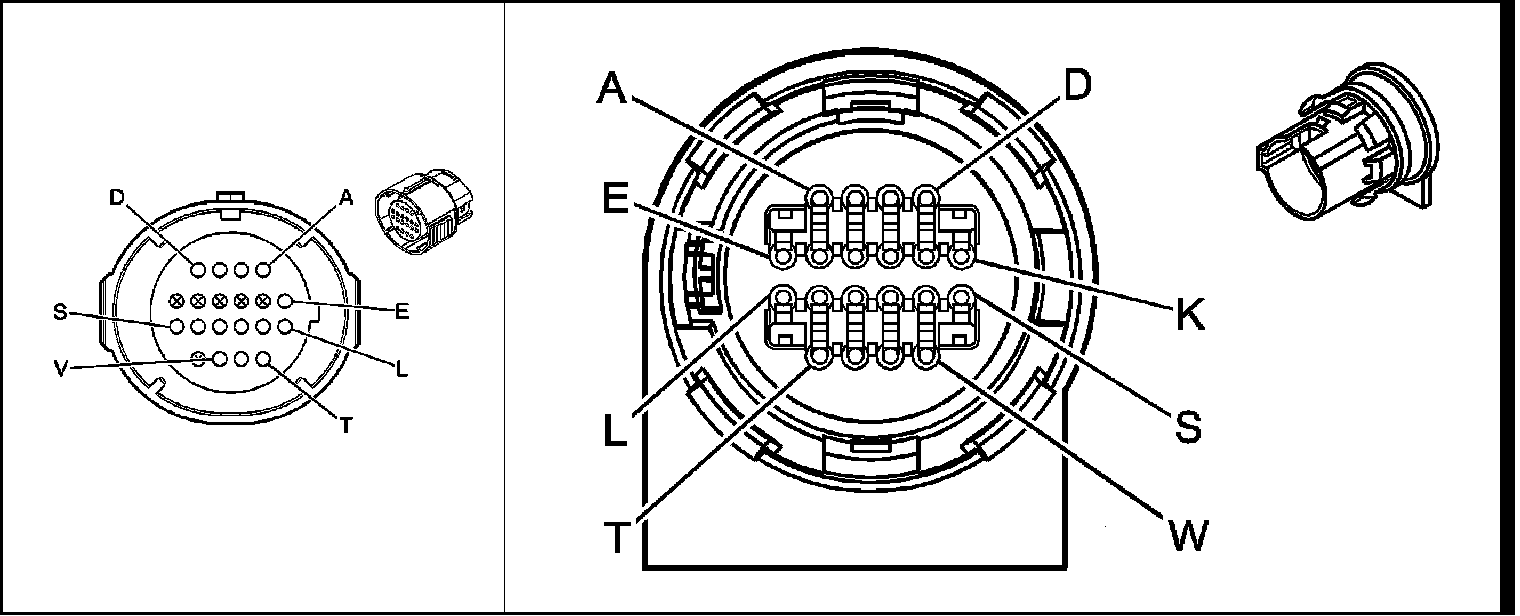

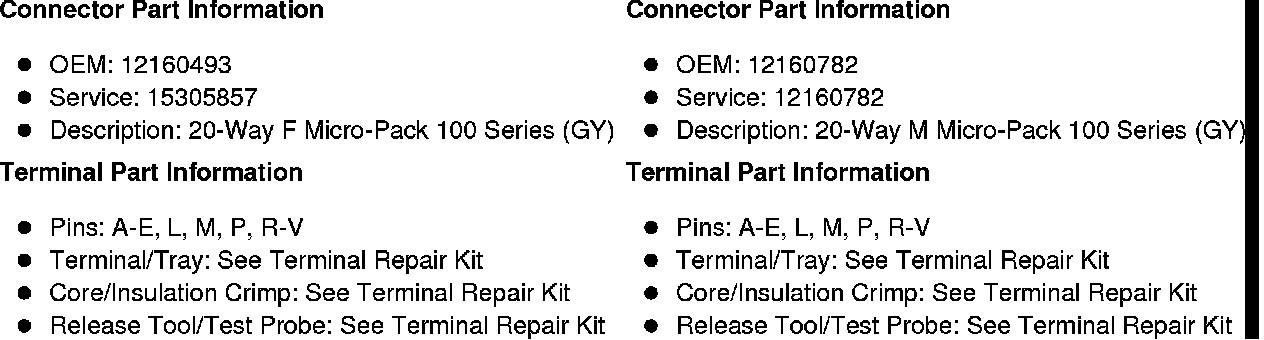

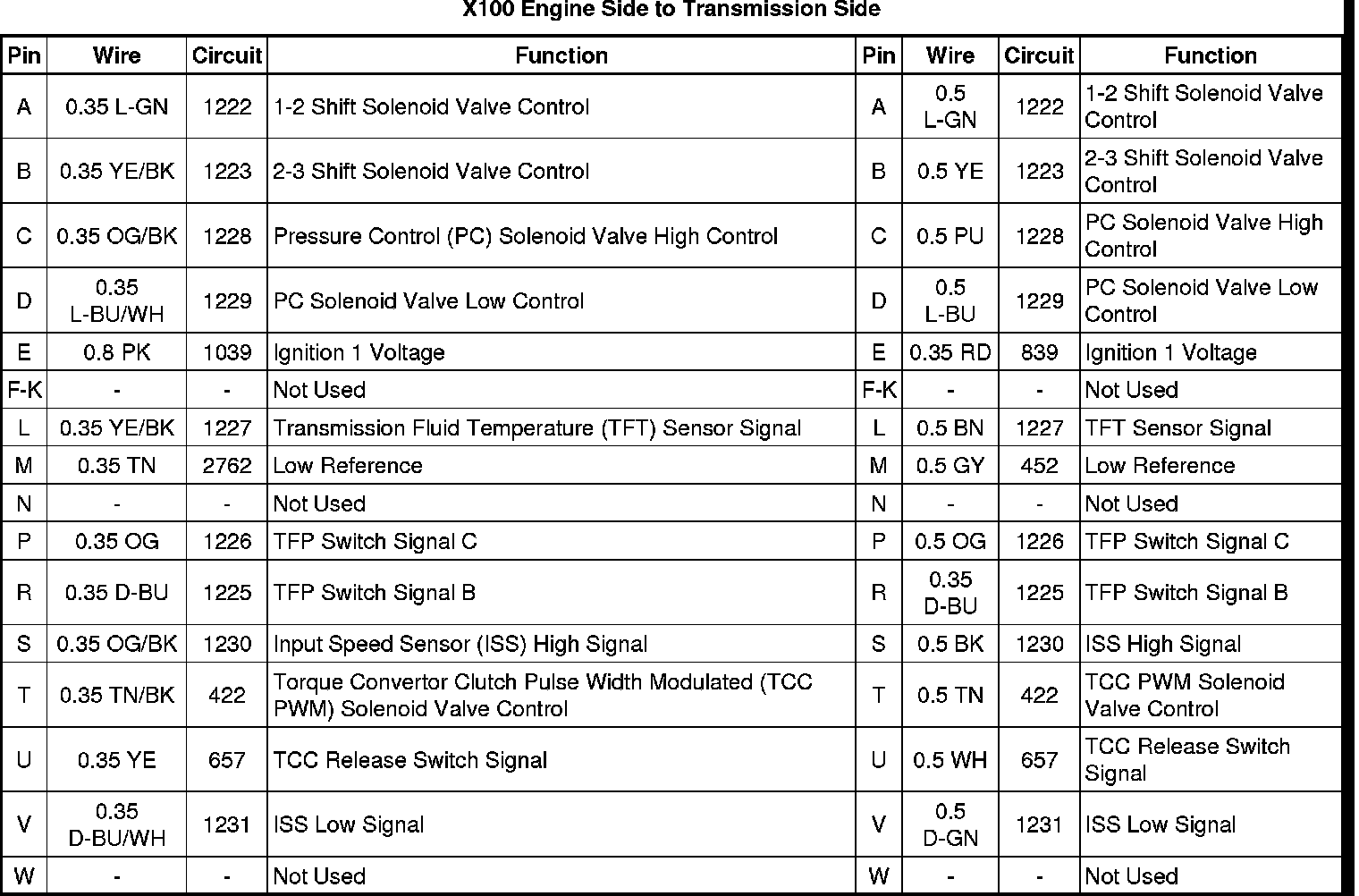

X100 Engine Side to Transmission Side
