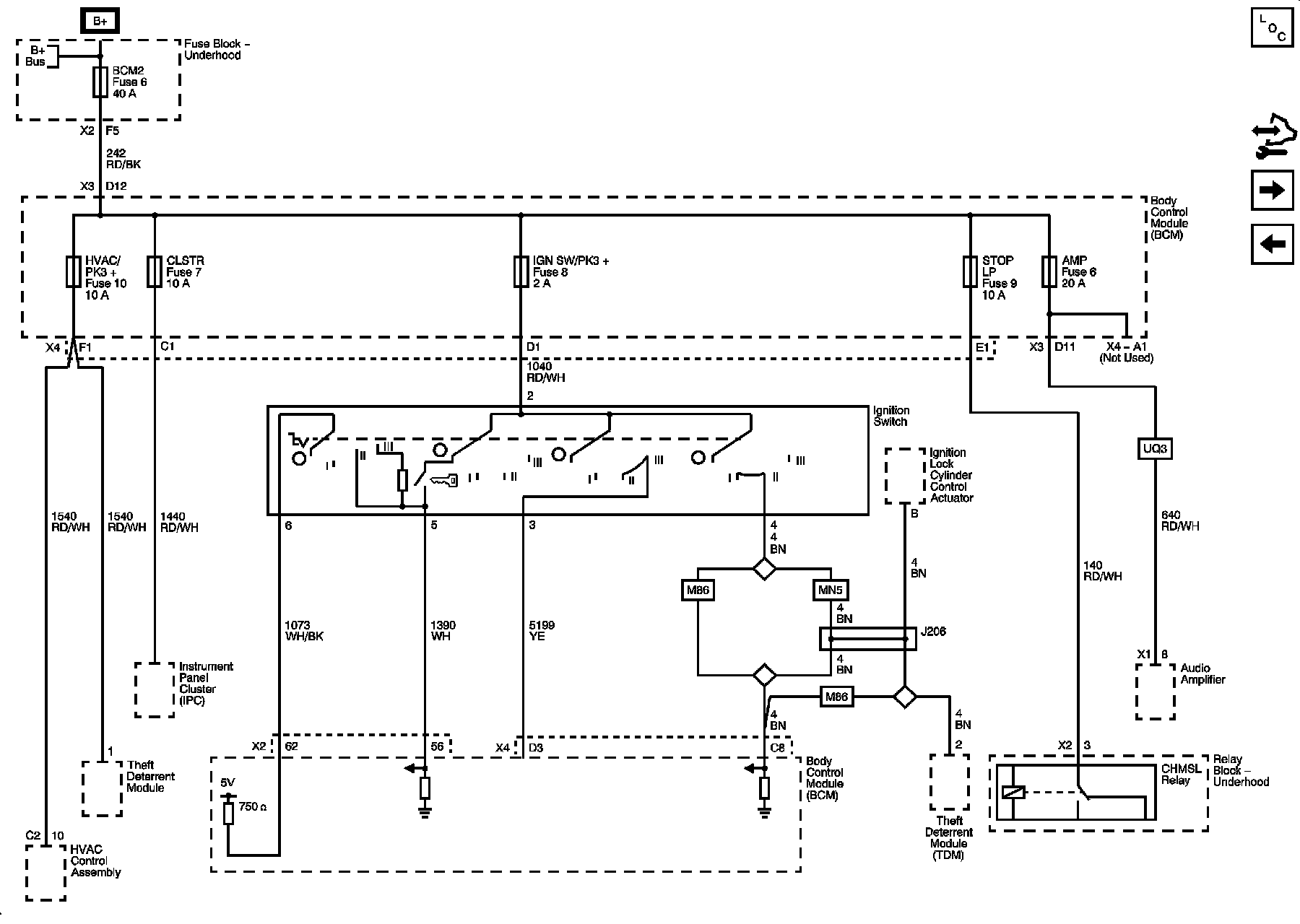

Power Distribution Diagram 7
Body Control Module - BCM2, HVAC/PK3, CLUSTER, IGN SW, STOP LPS, and AMP Fuses
Power Distribution Diagram 7:
