Auxiliary Power Outlet: Diagrams

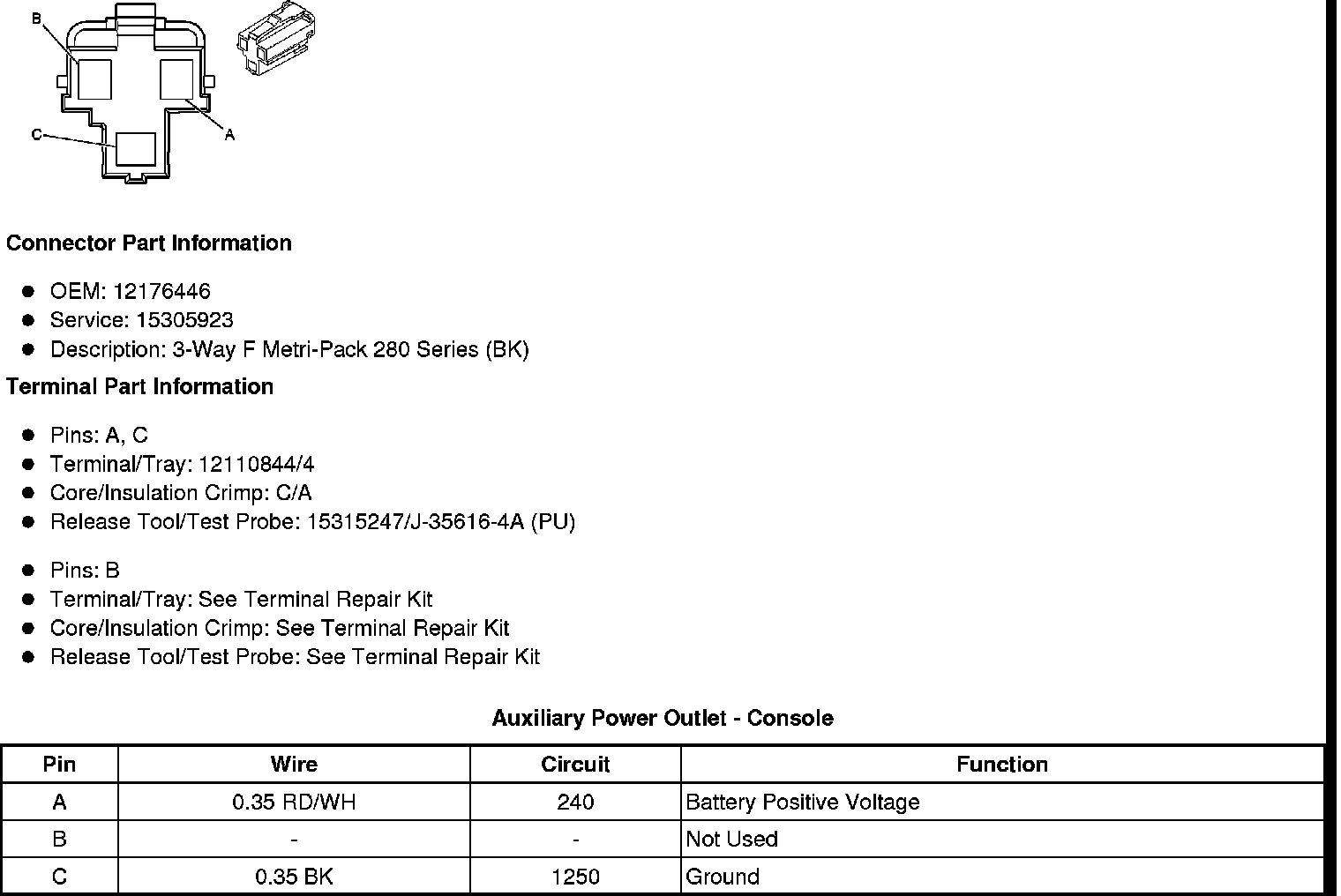

Auxiliary Power Outlet - Console

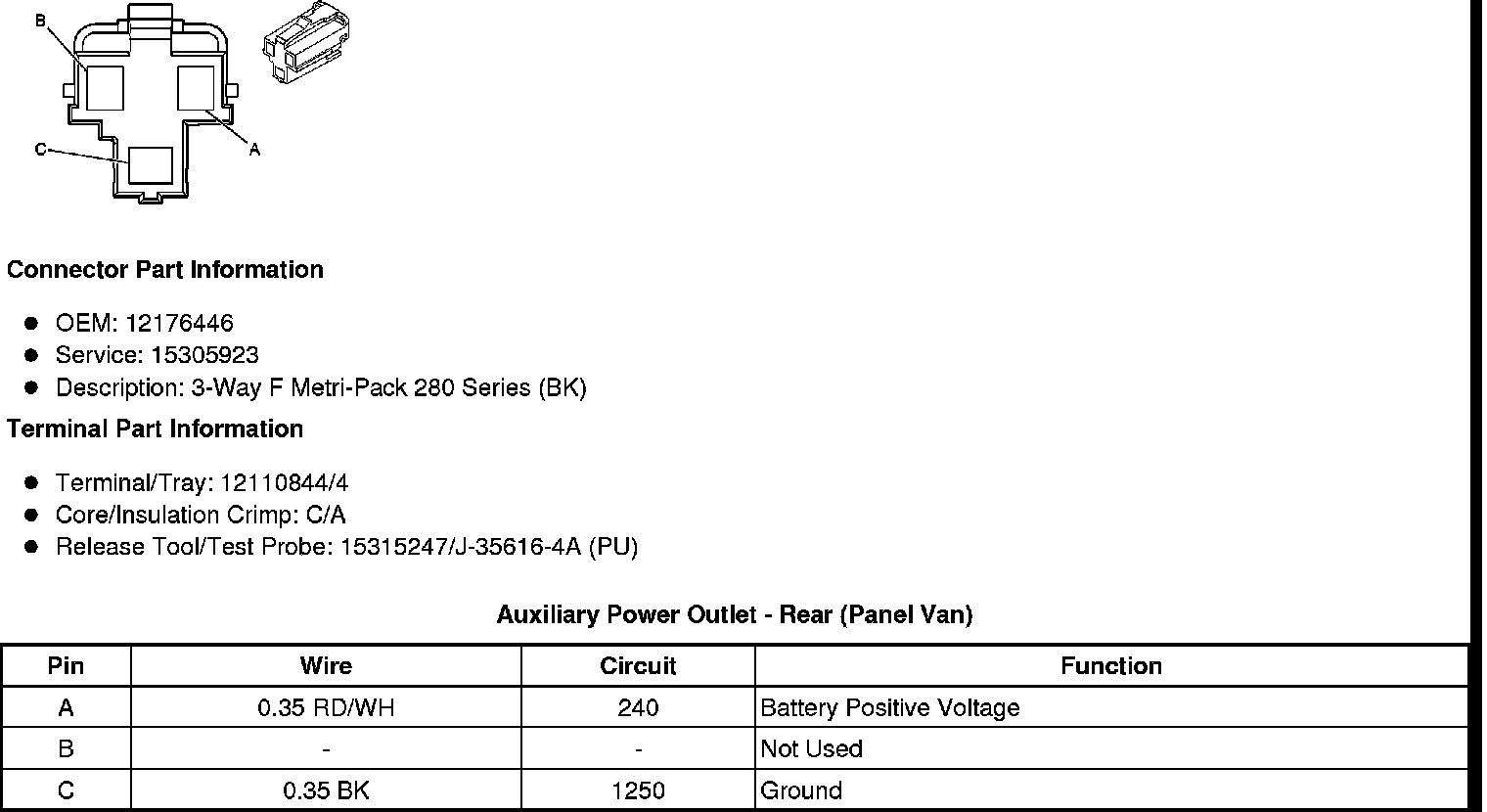

Auxiliary Power Outlet - Rear (Panel Van)
