Fuel Pressure Sensor/Switch: Diagrams

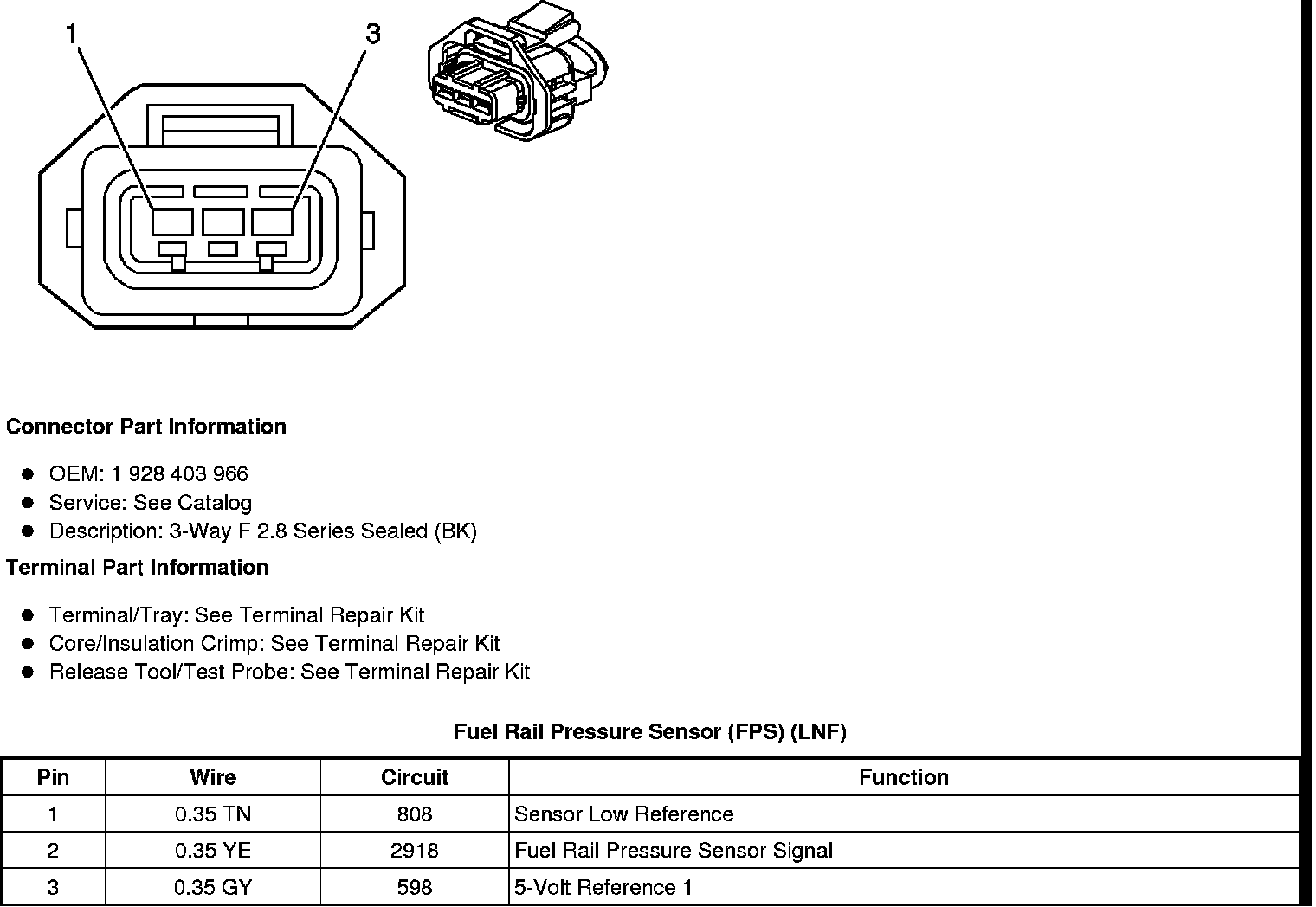

Fuel Rail Pressure Sensor (FPS) (LNF)

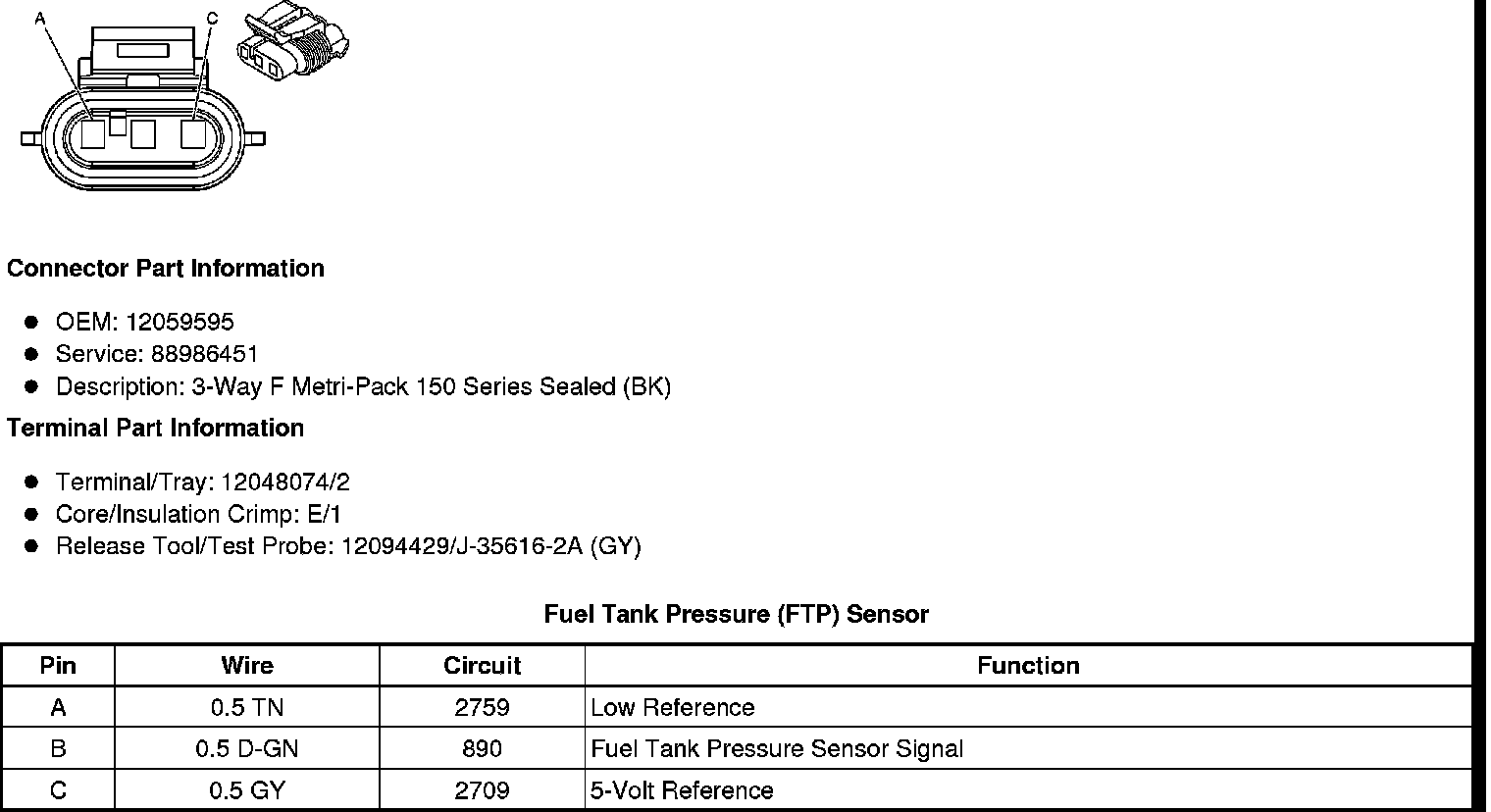

Fuel Tank Pressure (FTP) Sensor
