FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2008
>>
HHR L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Cruise Control
>>
Brake Switch (Cruise Control)
>>
Diagrams
Brake Switch (Cruise Control): Diagrams

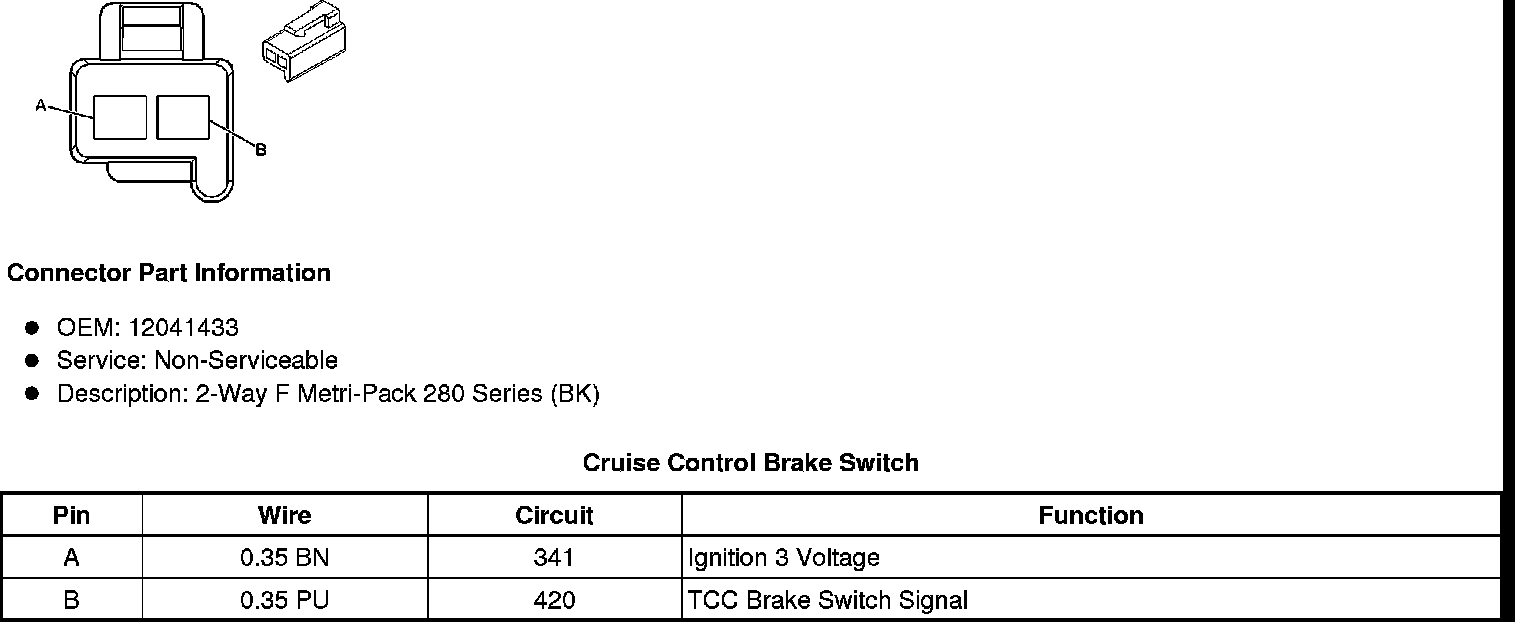

Cruise Control Brake Switch

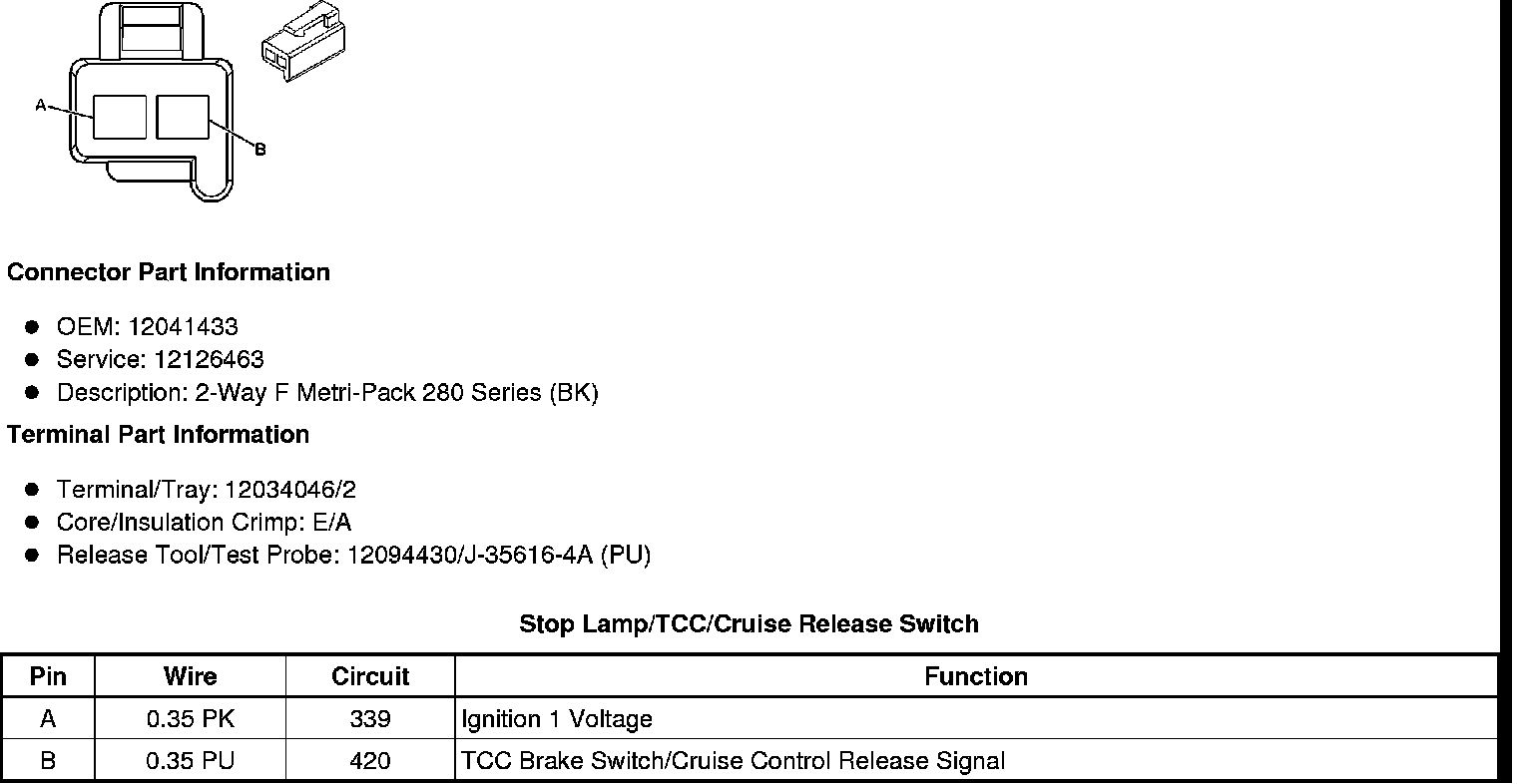

Stop Lamp/TCC/Cruise Release Switch
