Interior Lights Dimming Diagrams 2

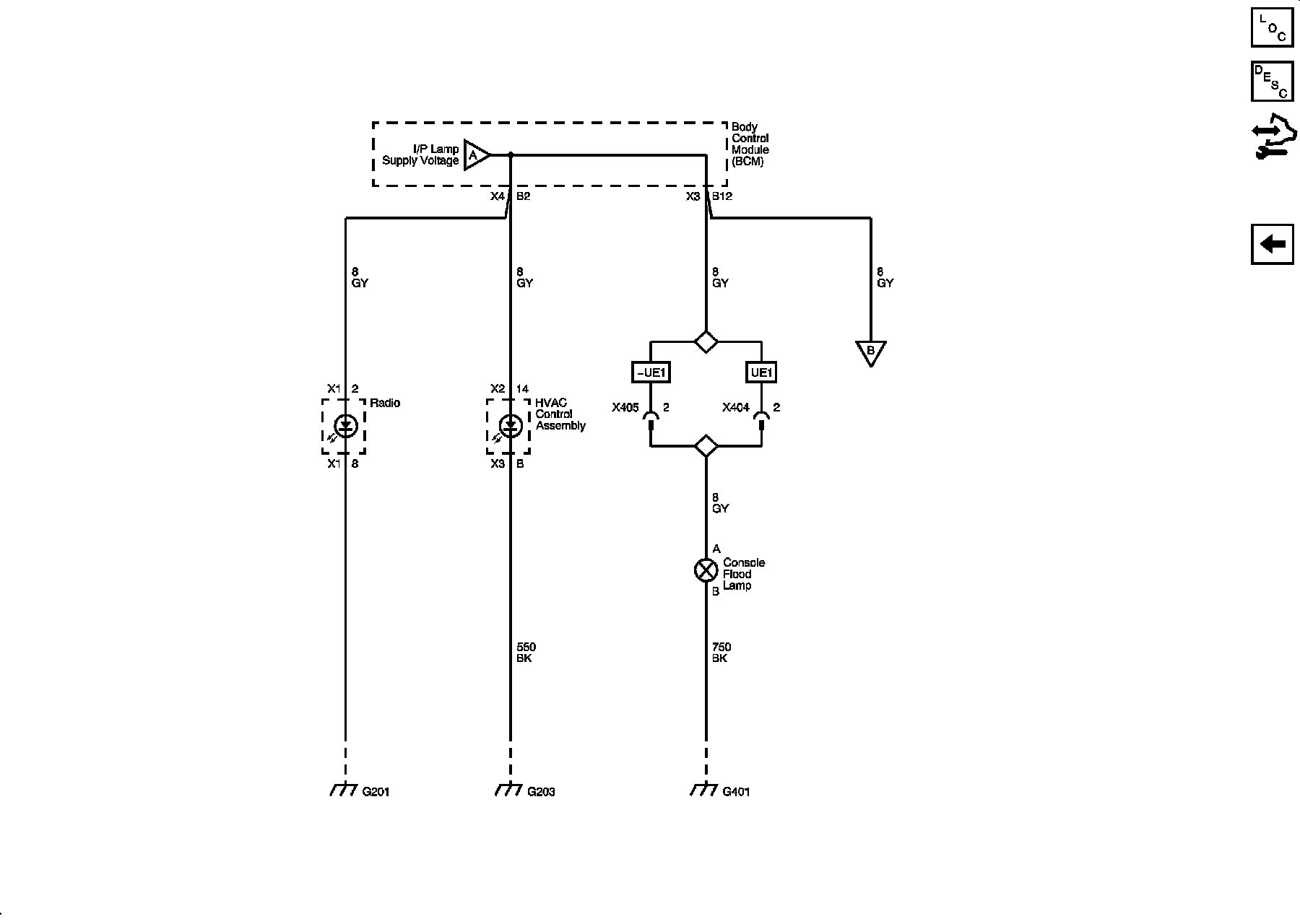

HVAC Control Module, Console Flood Lamp, and Radio

Interior Lights Dimming Diagrams 2:
