Wiper and Washer Systems



Component Connector End Views

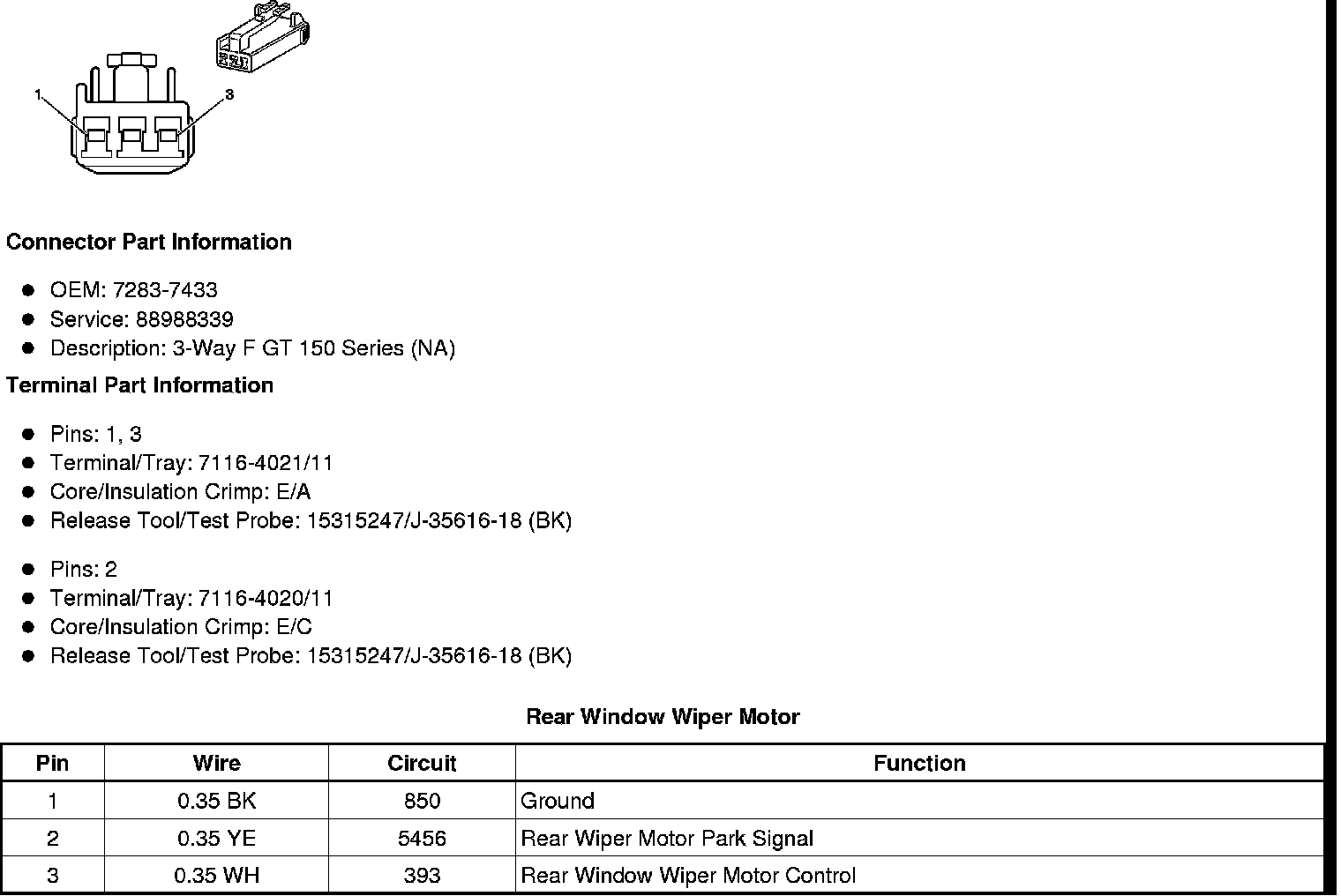

Rear Window Wiper Motor






Rear Wiper/Washer Switch






Windshield Washer Fluid Pump

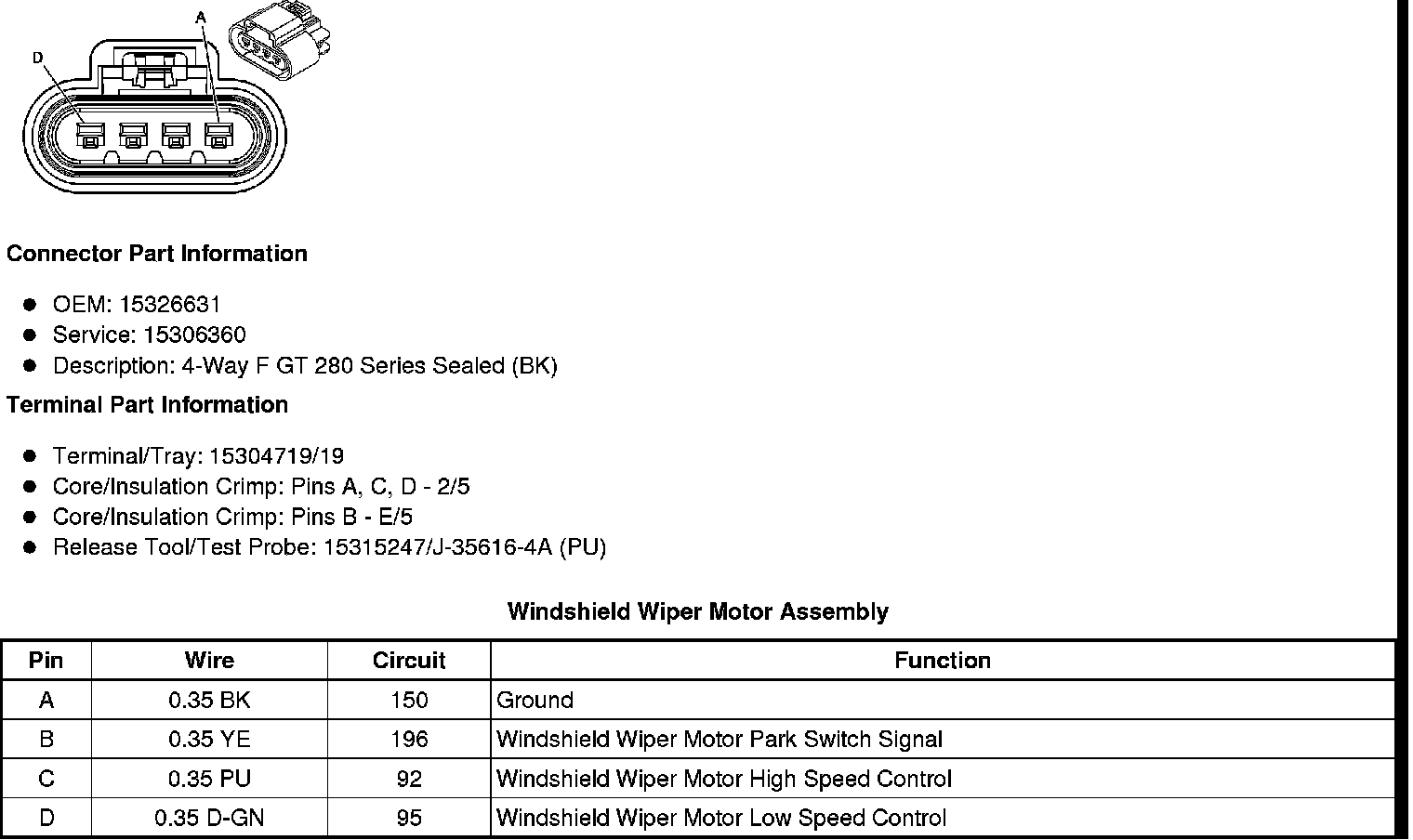

Windshield Wiper Motor Assembly






Windshield Wiper/Washer Switch
