Home >> Chevy Truck >> 2008 >> HHR L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antitheft and Alarm Systems >> System Diagram

System Diagram

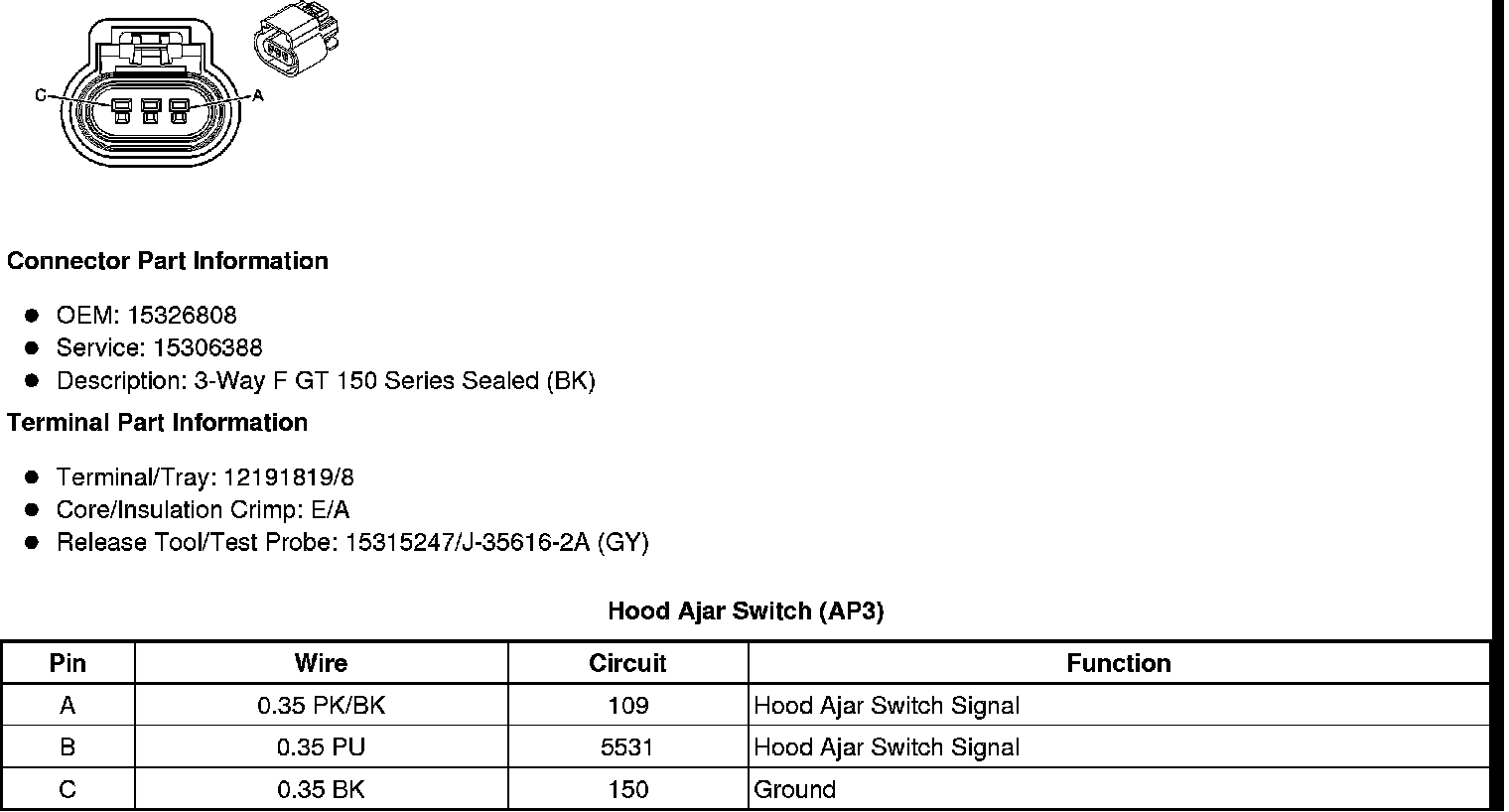

Hood Ajar Switch (AP3)







Remote Control Door Lock Receiver (RCDLR)
