Home >> Chevy Truck >> 2008 >> HHR L4-2.0L Turbo >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Diagrams

Trunk / Liftgate: Diagrams

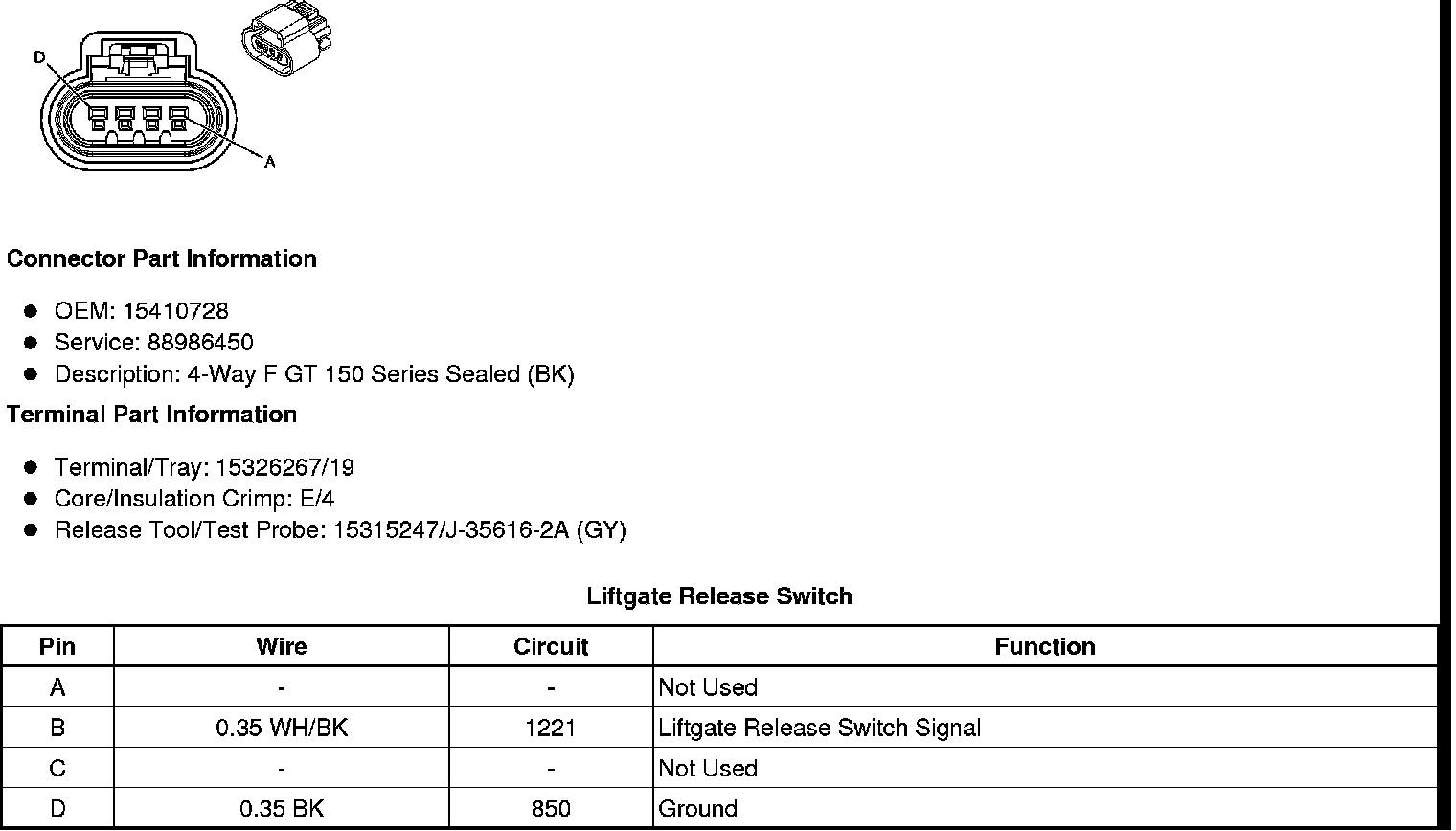

Liftgate Release Switch

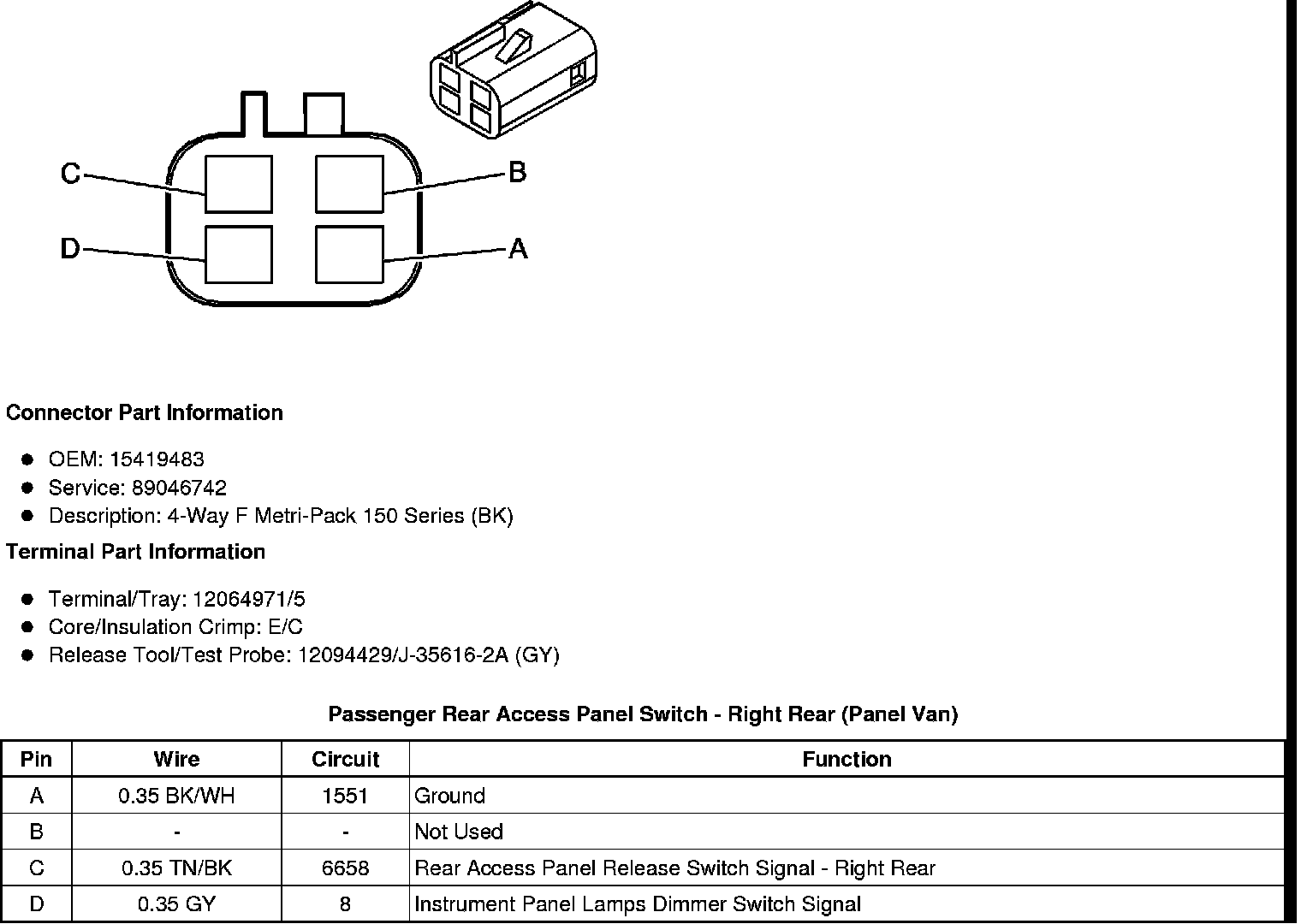

Passenger Rear Access Panel Switch - Right Rear (Panel Van)
