Manual 2-1 Band Assembly Removal



Manual 2-1 Band Assembly Removal

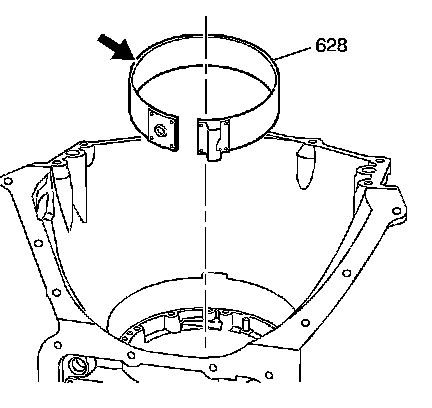

1. Remove the manual 2-1 band assembly (628).
2. Inspect the manual 2-1 band assembly for the following conditions:

* Wear
* Pitting
* Flaking
* Cracks
