Transmission Fluid Pump Body Flatness Check



Transmission Fluid Pump Body Flatness Check

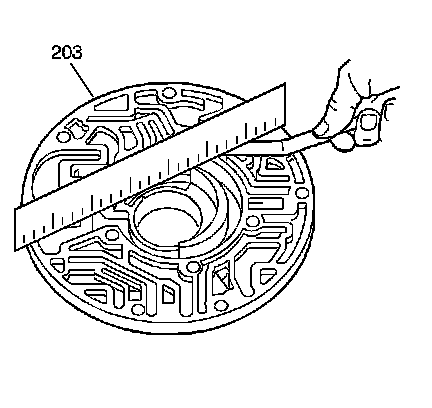

Using a straight edge and a feeler gage, inspect the face of the oil pump body assembly (203) for flatness.
