Manual 2-1 Band Assembly Installation



Manual 2-1 Band Assembly Installation

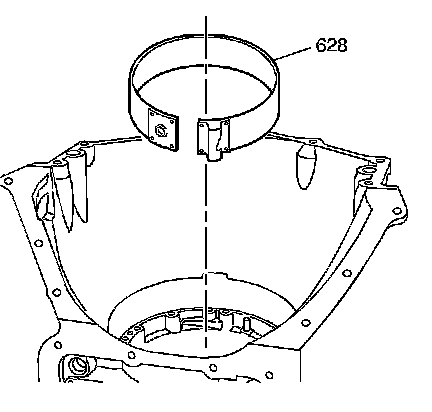

Install the manual 2-1 band assembly (628) into the transmission case. Inspect for proper alignment with the anchor pin and inspect for freedom of movement.
