Converter Housing Removal



Converter Housing Removal

Tools Required

J 41510 T-50 Plus Bit

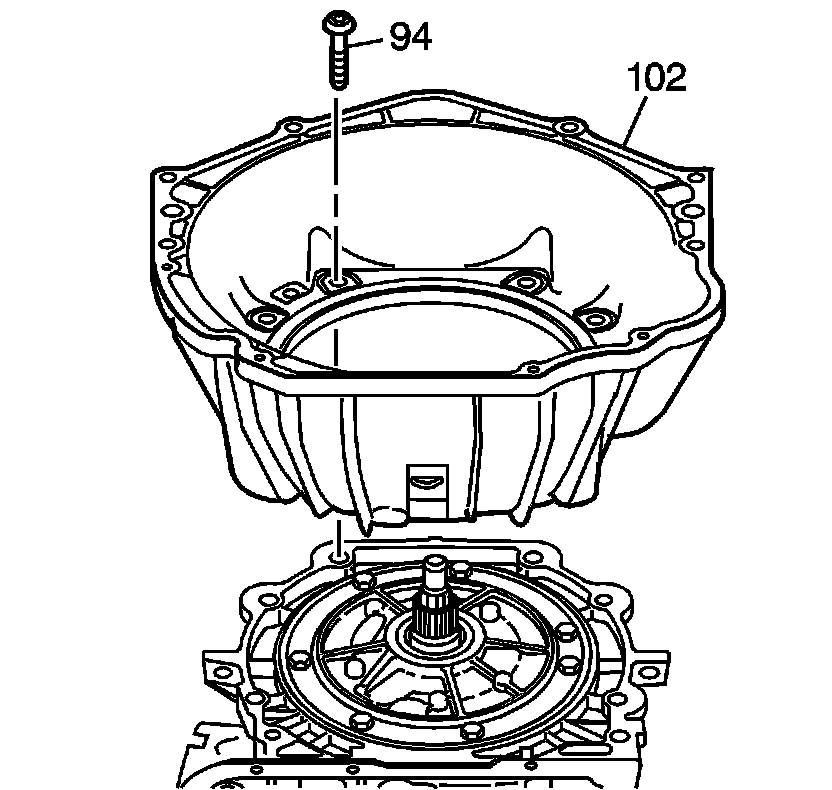

1. Remove the converter housing bolts (94). Use the J 41510 .
2. Remove the converter housing (102).
