Connector Views

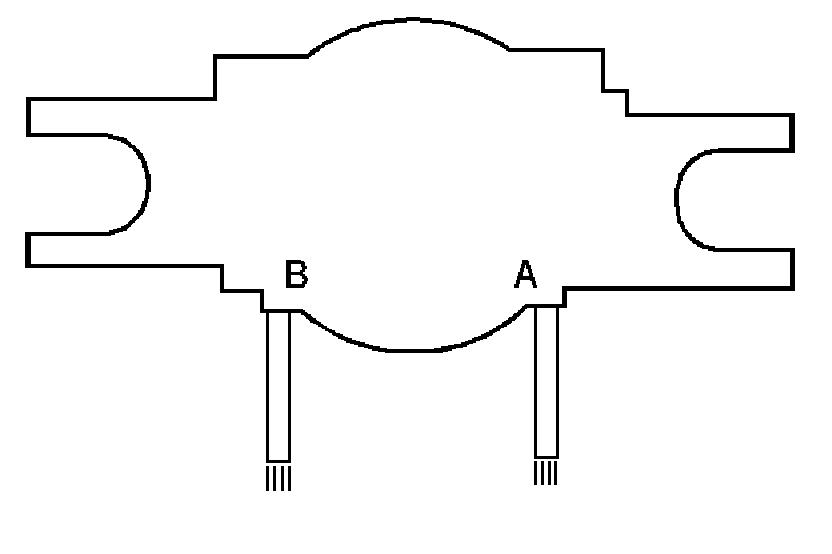

Component Connector End Views - Continued

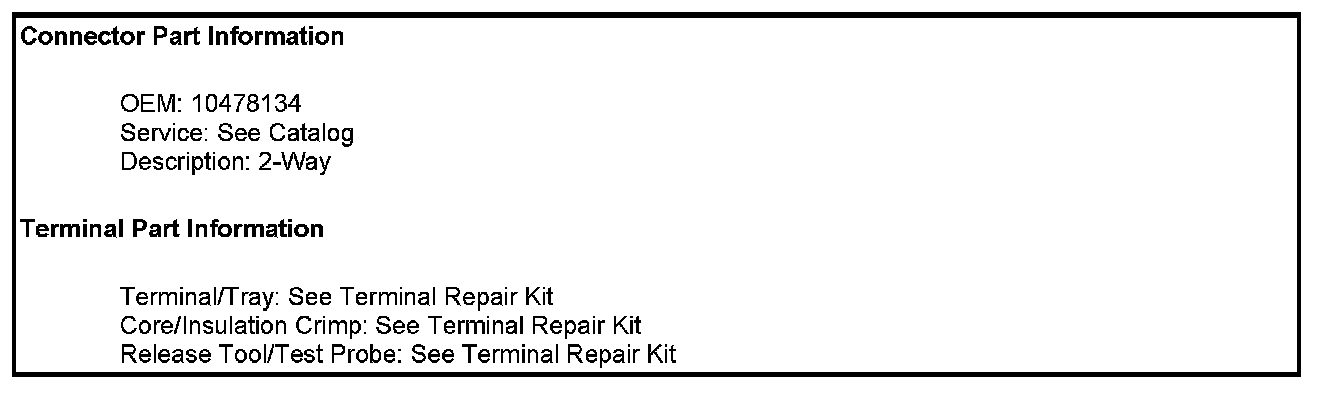

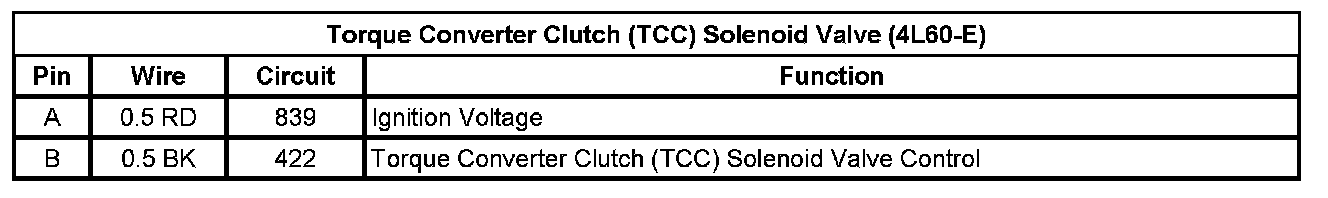

Torque Converter Clutch (TCC) Solenoid Valve (4L60-E)

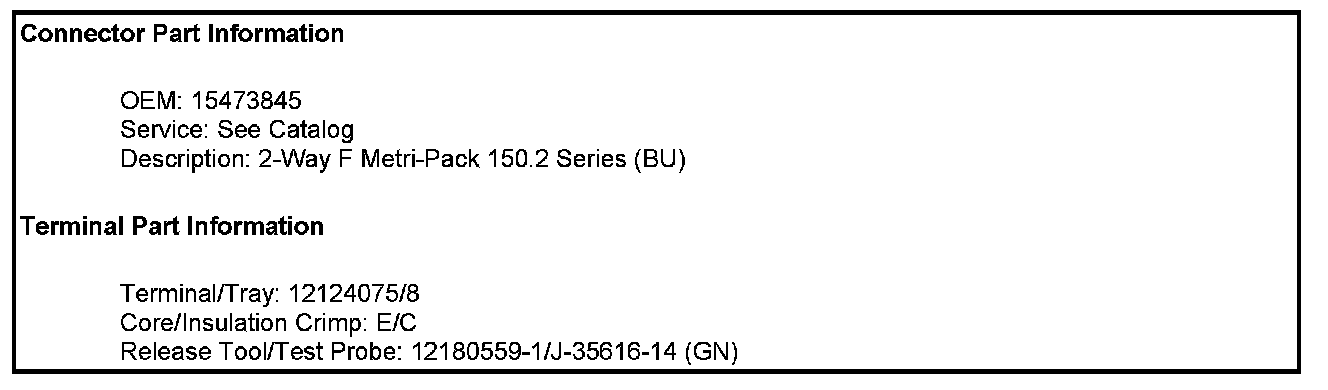

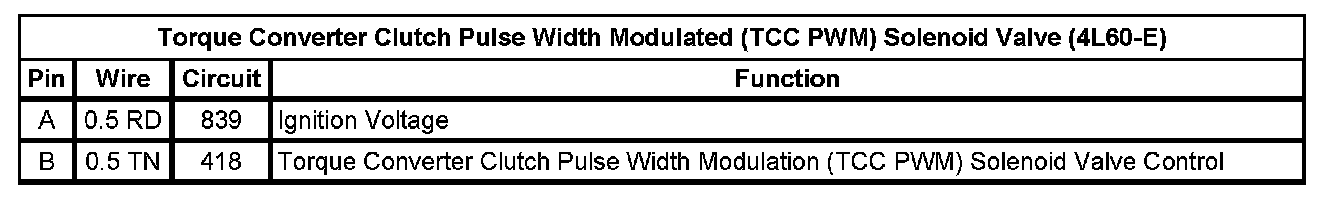

Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve (4L60-E)

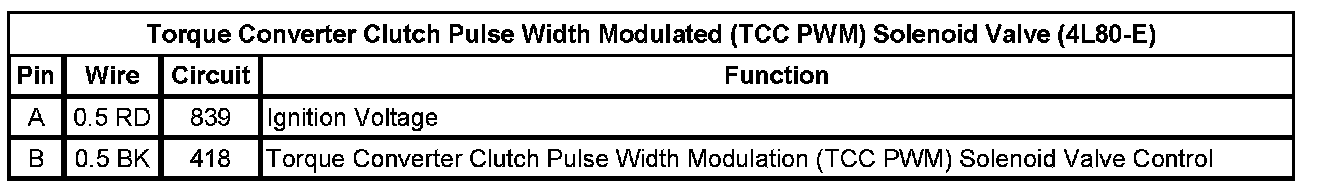

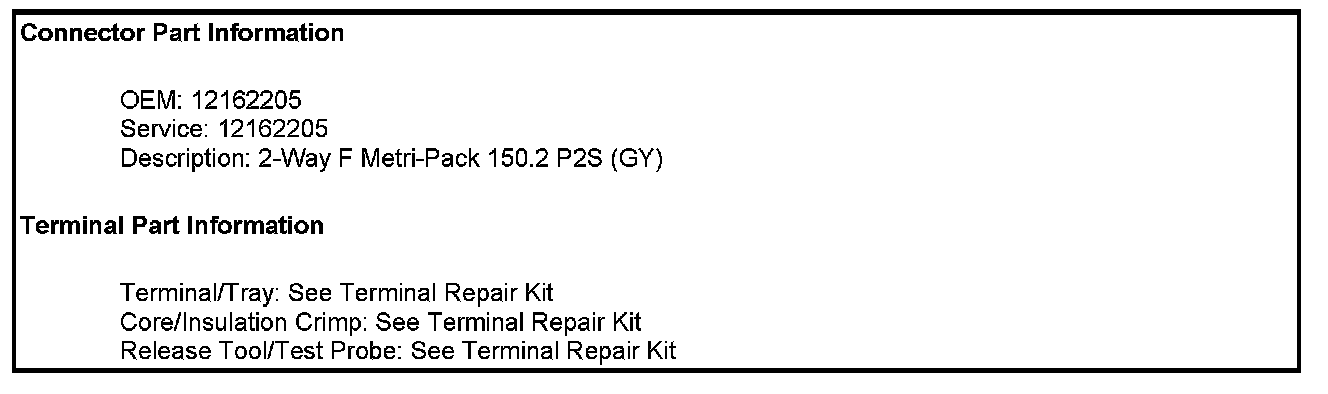

Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve (4L80-E)
