X902

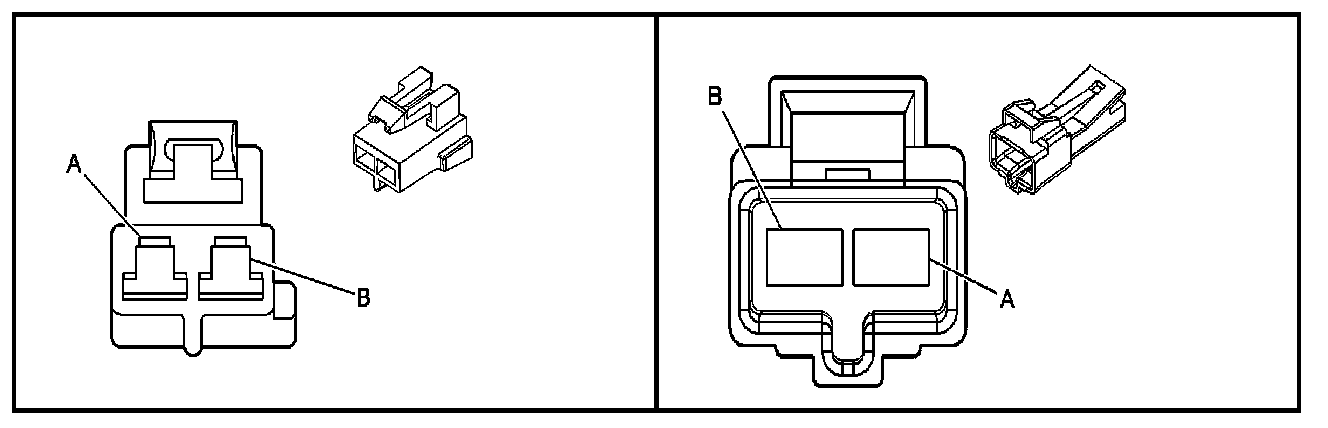

Inline Harness Connector End Views

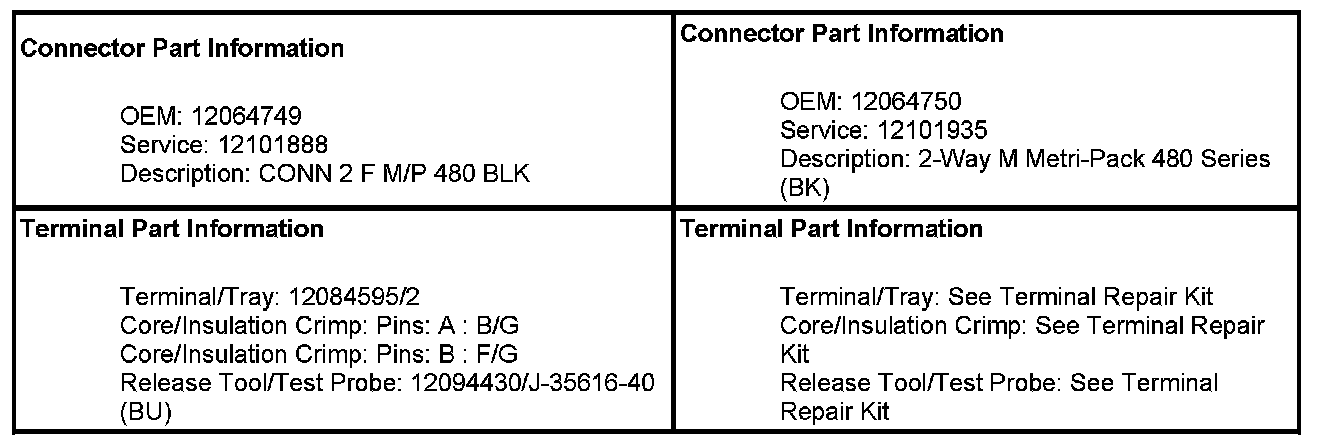

X902 Rear Window Defogger Jumper Harness to Right Rear Cargo Door Harness (C49)

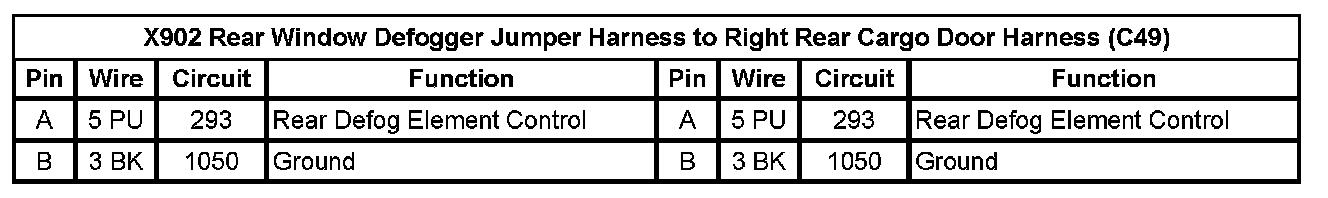

X902 Rear Window Defogger Jumper Harness To Right Rear Cargo Door Harness (C49) Pin A To B:
