X901

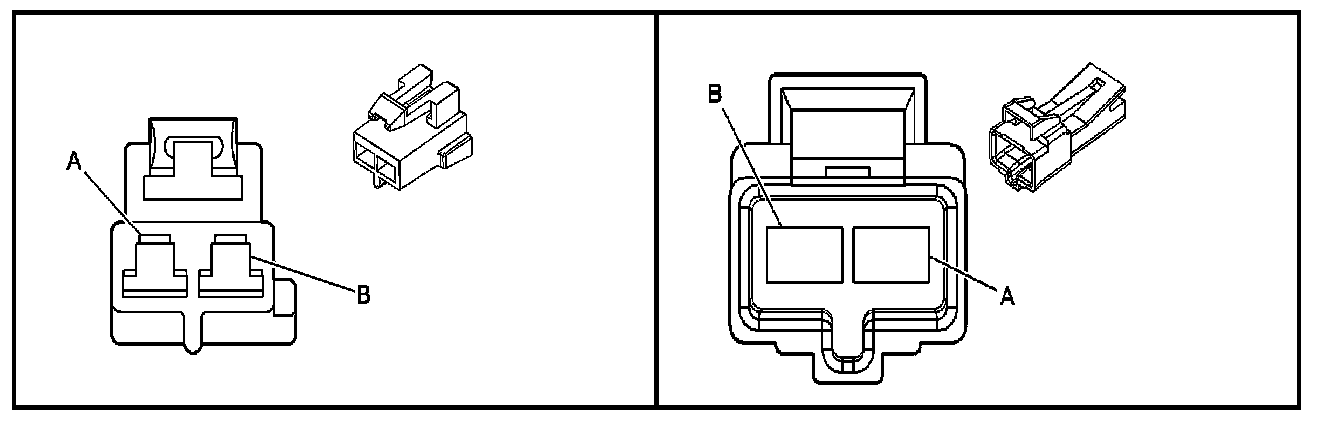

Inline Harness Connector End Views

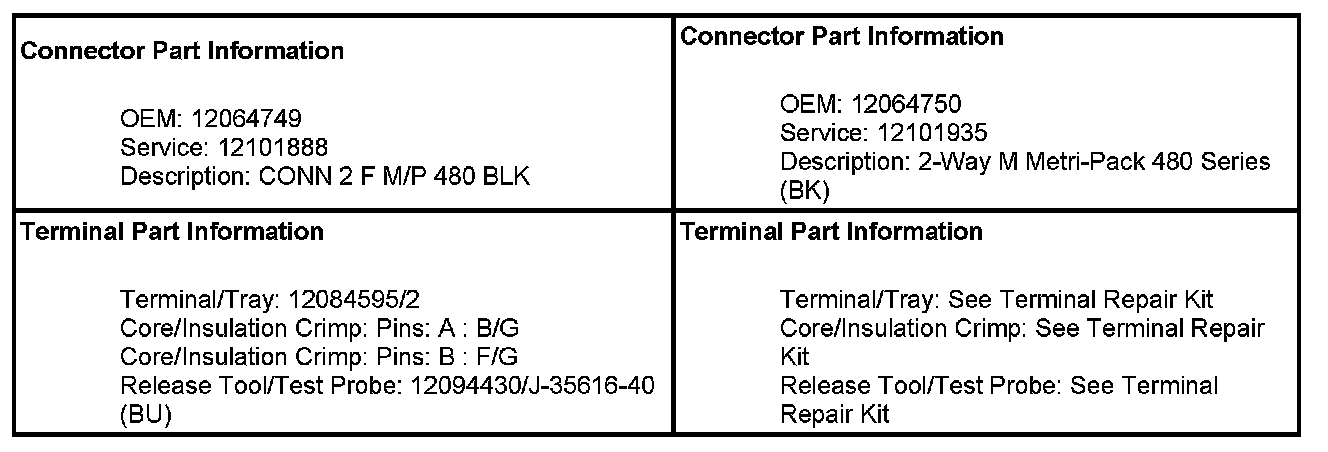

X901 Defogger Jumper Harness to Left Rear Cargo Door Harness (C49)

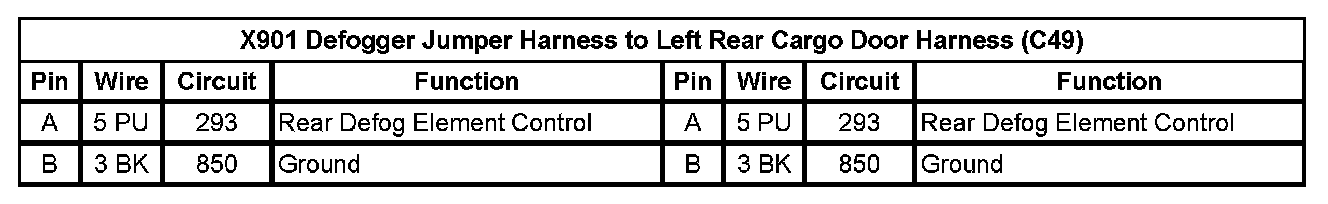

X901 Defogger Jumper Harness To Left Rear Cargo Door Harness (C49) Pin A To B:
