X413

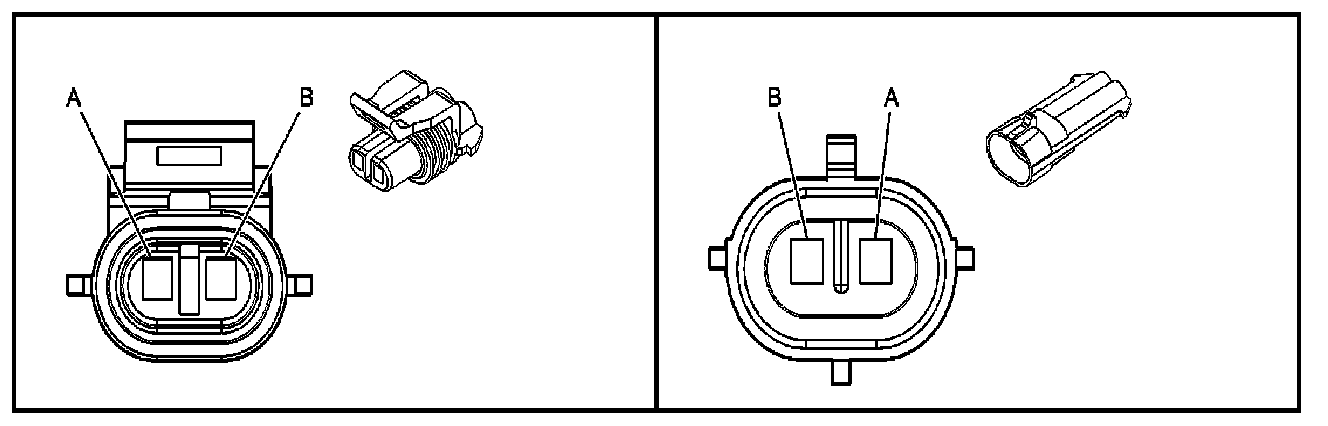

Inline Harness Connector End Views

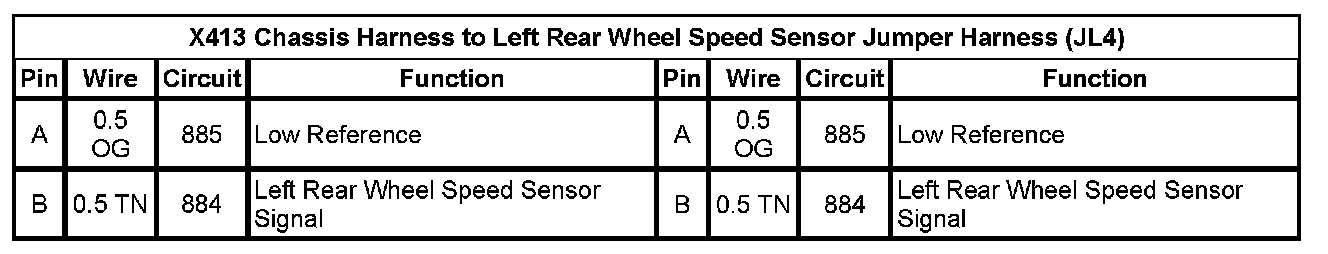

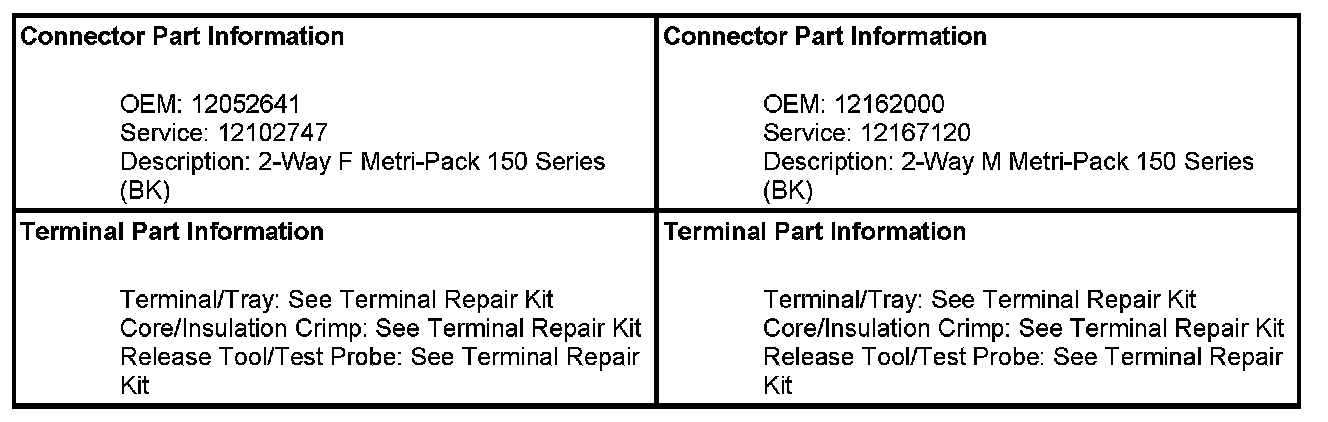

X413 Chassis Harness to Left Rear Wheel Speed Sensor Jumper Harness (JL4)









X413 Chassis ZHarness To Left Rear Wheel Speed Sensor JUmper Harness (JL4) Pin A To B:
